Mishimoto Performance Intercooler Kit | Multiple Fitments (MMINT-CAM4-16K)

Performance Intercooler Kit for the 2016+ Chevrolet Camaro 2.0T and 2013+ Cadillac ATS 2.0T by Mishimoto

It's time to give the intercooling system in your 2016+ Chevrolet Camaro 2.0T or 2013+ Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit.

Our bar-and-plate constructed core picks up the slack from the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45%, and offers a whopping 239% gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible.

Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75” diameters equating in a 30% increase in volume and 10% better flow of the charged air. All together, our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment, but also adding an aftermarket boost gauge or meth injection is a breeze.

The Mishimoto Performance Intercooler Kit for your 2013+ ATS or 2016+ Camaro is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.

Features

• Direct fit for the 2016+ Chevrolet Camaro 2.0T and 2013+ Cadillac ATS 2.0T
• 2" thick intercooler design optimized for maximum airflow with minimal pressure drop
• 45% increase in internal core volume & 239% increase in external fin surface area
• 78% increase in core size
• Cast end tanks with internal air diverter provide optimal airflow through intercooler
• 30% greater internal volume and 10% increased flow over stock
• Utilizes stock quick-disconnect fittings for easy installation
• Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
• Piping available in polished and wrinkle black
• Mishimoto Lifetime Warranty

Please Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe.

Applications

• 2016+ Chevrolet Camaro 2.0T
• 2013+ Cadillac ATS 2.0T

Specifications

• Core Size: 21.65" x 17.15" x 2.09"
• Inlet Size: 2.40"
• Outlet Size: 2.40"
• Pipe Diameter: 2.25"/2.5"/2.75"
• Max HP: 450

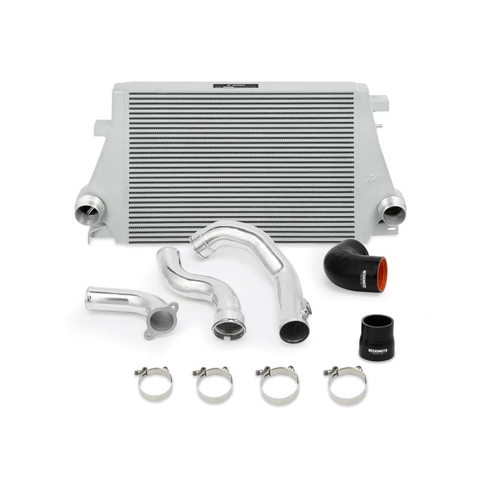

What's In The Box?

• 1 - Aluminum Intercooler
• 2 - Aluminum Pipes w/ quick-disconnects
• 1 - Aluminum Pipe w/ 2-bolt flange
• 2 - Quick-Disconnect Spring Clips
• 1 - 2.75" 90° Silicone Coupler
• 1 - 2.25" to 2.5" Silicone Transition Coupler
• 1 - 2.5" T-Bolt Clamp
• 1 - 2.75" T-Bolt Clamp
• 2 - 3" T-Bolt Clamps
• 3 - Tree Clips
• Mishimoto Lifetime Warranty

References

• Installation Instructions

Warranty

• Mishimoto Lifetime Warranty
