Mishimoto Oil Cooler Kit | 2016+ Chevrolet Camaro 2.0T (MMOC-CAM4-16)

Oil Cooler Kit for 2016+ Chevrolet Camaro 2.0T by Mishimoto

As car enthusiasts, we know how important it is to protect your beloved vehicle. To us, and to you, our cars and the parts they include are so valuable that they take on a life of their own. Make sure the life of your Camaro, and its turbocharged LTG under the hood, is a long one with the Mishimoto Direct-Fit Oil Cooler kit for the 2016+ Camaro 2.0T.

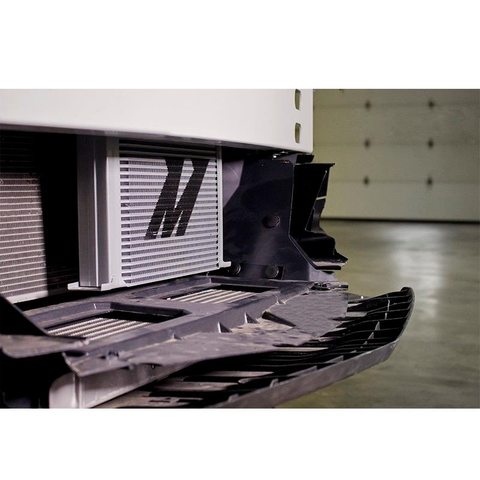

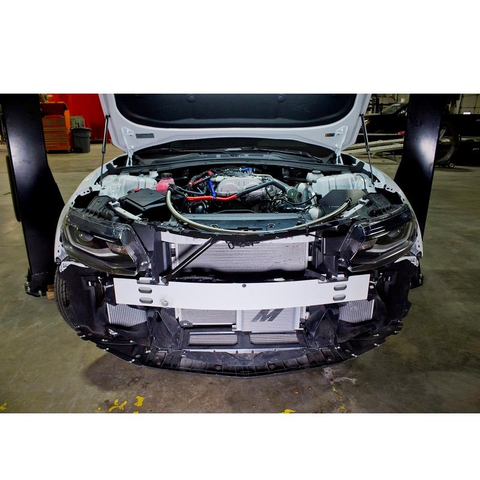

Available in either thermostatic or non-thermostatic configurations, our oil cooler kit incorporates a high-quality billet aluminum sandwich plate, an all-aluminum 25-row stacked heat exchanger core, and braided stainless steel lines with durable -AN fittings to cool the oil in your LTG by up to 60°F. Oil that gets too hot will not properly lubricate your engine’s internals, and that could spell disaster for your LTG, especially if you like to push the limits of your ride on the track, at the strip, or on the autocross course. This oil cooler sits behind the front bumper of your Camaro, securely mounted on the provided application-specific mounting brackets.

The Mishimoto Oil Cooler Kit is available in Sleek Silver or Stealth Black, and includes the Mishimoto lifetime warranty.

Features

• Direct-fit for the 2016 Chevrolet Camaro 2.0T

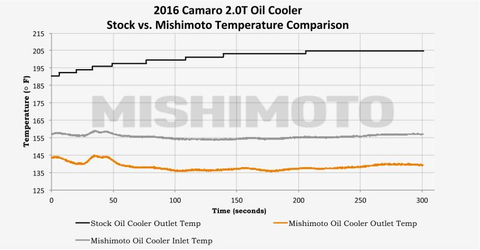

• Reduces oil temperatures by up to 60°F

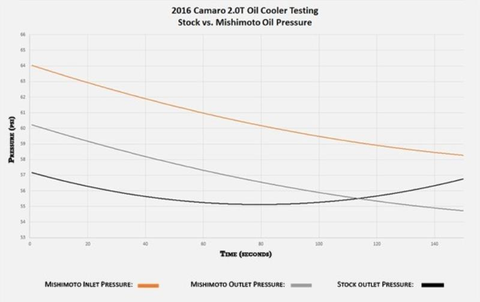

• Minimal pressure drop
• Application-specific mounting brackets

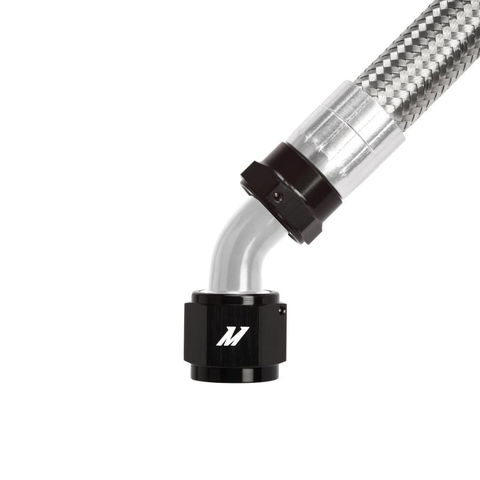

• Premade braided stainless steel oil lines with durable -AN fittings

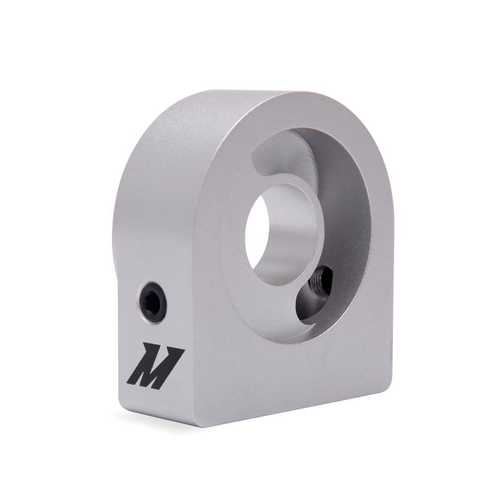

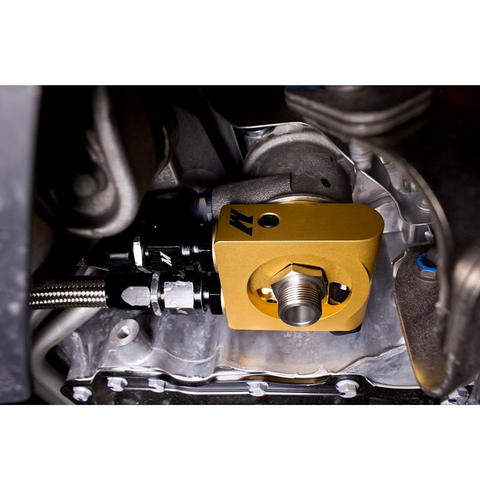

• Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
• 25-row stacked-plate oil cooler for optimal reduction in fluid temperature
• Thermostatic and non-thermostatic options available
• Cooler available in Sleek Silver or Stealth Black
• Increases oil capacity by 0.75qt
• Mishimoto Lifetime Warranty

Please Note: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.

Applications

• 2016+ Chevrolet Camaro LS 2.0T
• 2016+ Chevrolet Camaro LT 2.0T

What's In The Box?

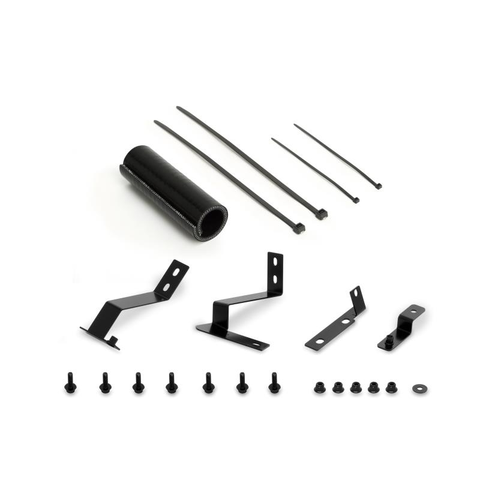

• 3 - Application Specific Mounting Brackets w/ Corrosion Resistant Mounting Hardware
• 1 - Horn Relocation Mounting Bracket
• 1 - 25 Row Oil Cooler
• 1 - 4ft 4in Braided Hose w/ -10AN Fittings
• 1 - 4ft 10in Braided Hose w/ -10AN Fittings
• 1 - M22 Oil Sandwich Plate
• 1 - M22 x 1.5 Sandwich Plate Adapter
• 2 - M20 x -10AN Sandwich Plate Fitting with a Dowty Seal
• 2 - 1ft Thermal Heat Wrap
• 1 - 4" Hose
• Installation Instructions
• Warranty Information

References

• Installation Instructions
• Engineering Report

Warranty

Mishimoto Lifetime Warranty
