2016+ Camaro 2.0T/2013+ ATS 2.0T Complete Intercooler Piping Kit by Mishimoto

Expose your 2.0T LTG engine to improved airflow with the Mishimoto Performance Intercooler Pipe Kit for the 2016+ Chevrolet Camaro. The stock intercooler pipes are plagued by bends and a restrictive diameter. Both slow the airflow to your intercooler. The stock piping is also constructed of plastic and rubber, which will deteriorate over time on top of restricting air to your engine. This Mishimoto intercooler pipe kit is constructed of mandrel-bent aluminum and features a larger diameter to minimize any airflow restrictions. These pipes can handle the power you throw at them when turning up the boost on your LTG.

Plastic is a material that Mishimoto always strives to replace with our products, and the stock cold-side intercooler pipe needed some work. Half of the stock cold-side pipe is constructed of plastic, which is prone to cracks and leaks. The Mishimoto cold-side pipe is a single section of mandrel-bent, aluminum piping featuring a CNC-machined sensor flange for use of the stock pressure sensor, a port for methanol injection, or a port for a boost gauge sensor. The hot-side pipe includes more precise machining with a perfect match of the turbo manifold flange designed for a painless installation. The hot-side pipe also has a bigger diameter for better airflow and an increase in overall volume.

Mishimoto’s 2016+ Camaro 2.0T performance intercooler pipe kit includes durable silicone couplers and stainless steel T-bolt clamps to ensure leak free connections between the hot-side sections and to the intercooler. Installation can be completed without modification to the engine bay as it is compatible with the stock intercooler. The Mishimoto performance intercooler pipe kit is available in either wrinkle black or a polished finish, and like all our Camaro 2.0T performance parts, includes the Mishimoto Lifetime Warranty.

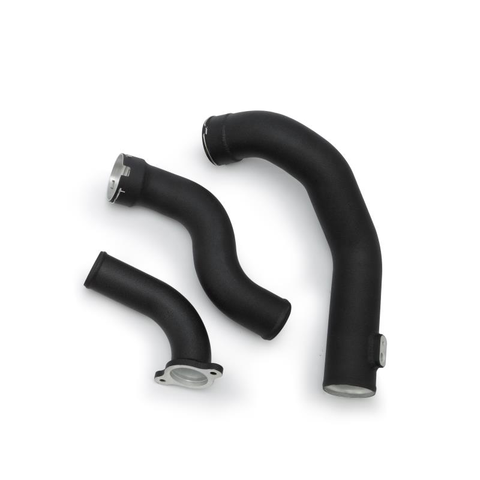

  • High quality mandrel-bent aluminum piping replaces weak stock plastic/rubber pipes
  • 30% greater volume and 10% increase in flow compared to the stock piping
  • Utilizes stock quick-disconnect fittings for easy installation
  • CNC-machined port for stock sensor connection
  • Pre-welded NPT port on cold-side to install aftermarket meth injection or boost gauge

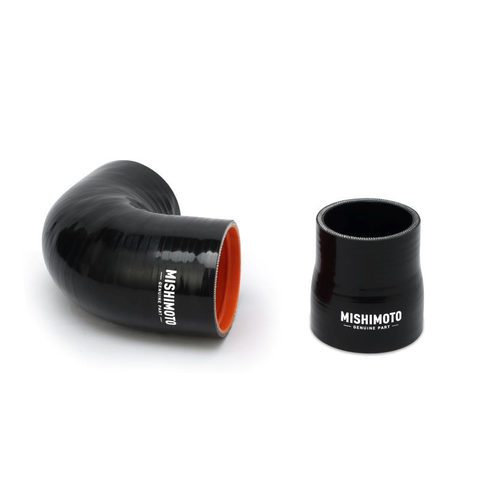

  • Includes Mishimoto silicone couplers and Mishimoto T-bolt clamps
  • Piping is available in polished aluminum and wrinkle black finishes
  • Mishimoto Lifetime Warranty


There are O-rings inside of the stock intercooler pipes on the ends that connect to the intercooler. These O-rings must be removed and installed into your Mishimoto intercooler piping.


  • 2016+ Chevrolet Camaro 2.0T
  • 2013+ Cadillac ATS 2.0T


  • Durable and Corrosion Resistant
  • Increased Volume and Flow

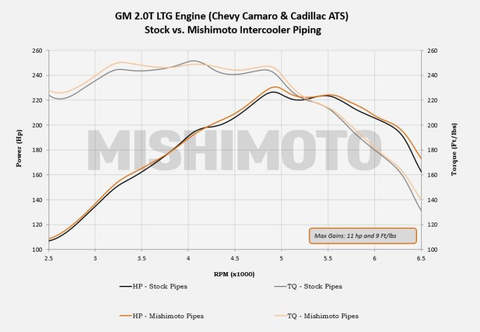

  • Gains of up to 11 WHP and 9 WTQ
  • Improved System Cooling/Performance

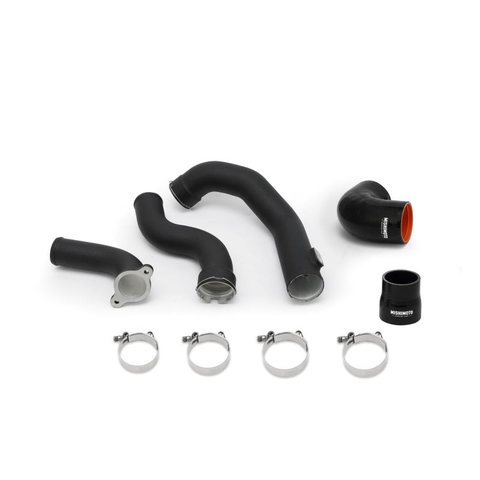

What's In The Box?

  • 1 - Set Hot Side Piping
  • 1 - Set Cold Side Piping
  • 2 - Silicone Couplers w/ Clamps
  • All Necessary Hardware
  • Instructions/Manuals (if applicable)
  • Warranty Information



Mishimoto offers their Signature Lifetime Warranty on all of their products.
