MAPerformance 11th Gen Civic Si Performance Oil Cooler Kit | 2022+ Honda Civic Si (HDAXI-OCK)

2022+ Civic Si Oil Cooler Kit By MAPerformance

Not many things can kill a motor as fast as overly high oil temps, and we are not alone in finding that the stock Civic 11th gen system is not up to the task. From lapping days to daily driving, and everything in between our cooler kit will do everything you need and more!

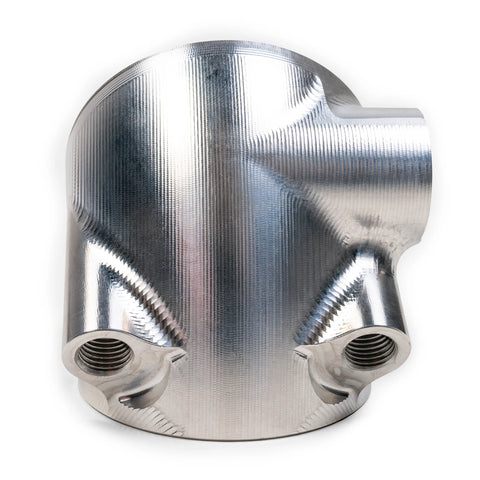

When it came time to design the 11th gen Civic Si Oil Cooler kit we were not happy with any of the filter sandwich plates on the market, as they all spaced the oil filter so far down that it became the lowest point on the car. In doing so it would no longer clear the factory under-tray, causing you to either have to trim it, or space it. With that in mind, we designed our two-piece filter adapter to not only fit as we would like, but also to function perfectly providing nearly zero restrictions or pressure drop in the system. Due to the lack of factory oil pressure monitoring, we felt it was very important to add the 1/8" NPT port to the side of the housing, as to provide the key information of oil temperature, pressure, or both depending on the sensor utilized.

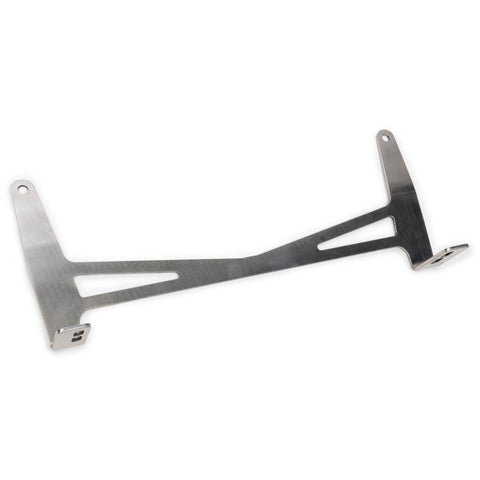

To mount the cooler, we designed our MAPerformance 304 Stainless mounting bracket. This bracket not only looks stylish for many years but is also a 100% bolt-on solution meaning no cutting or trimming is required to any part of your car keeping the installation as easy as can be!

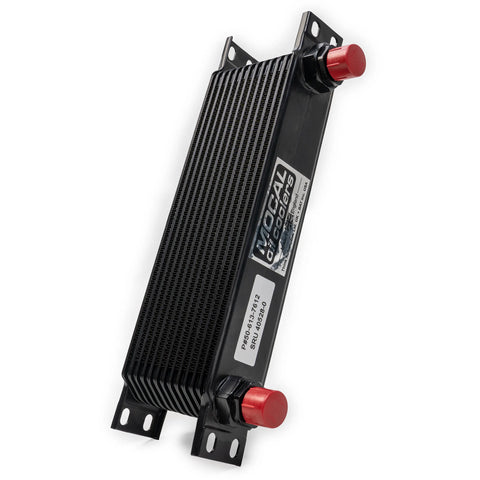

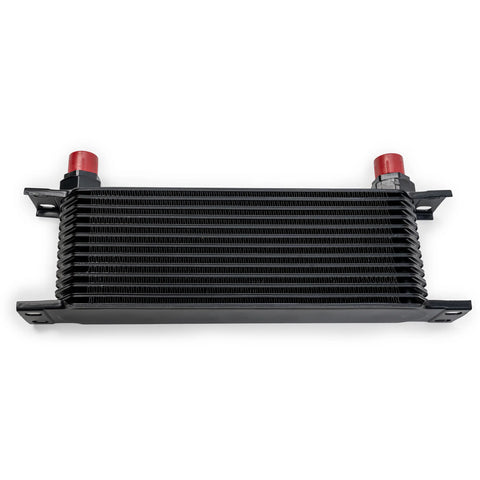

For the cooler, we selected one of the largest Mocal cores that we could fit, and keep in a reasonable budget. Mocal has been an industry leader in the cooling industry for generations, and there is no better fit! There were multiple reasons for this decision, the obvious being that it would pull as much heat out of the system as possible and cool the oil to reasonable temperatures. The secondary reasoning is that the L15CA has a very small oil capacity and being able to add nearly a full quart to the system will help in both temperature and also help keep the oil pressure stable at all times!

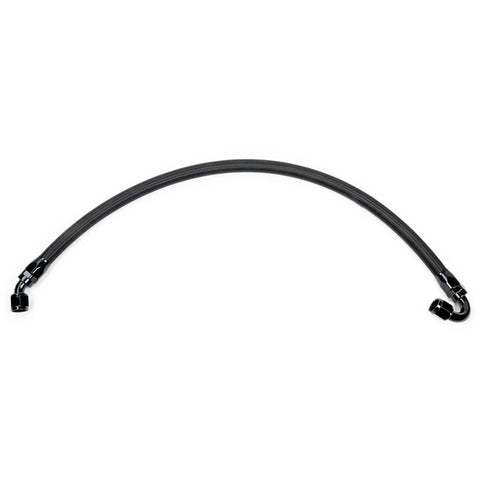

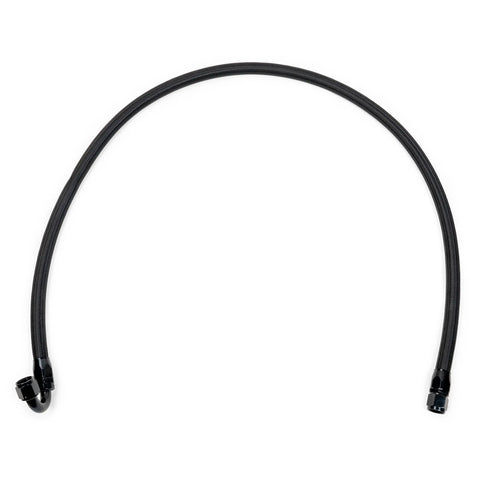

To round it all off, the lines we choose to use are lightweight braided hose for easy handling and serviceability.

Features

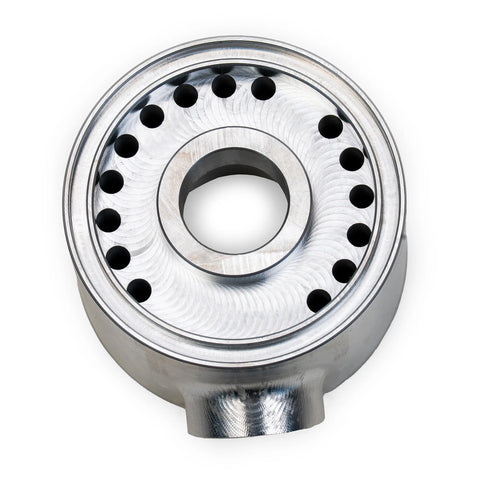

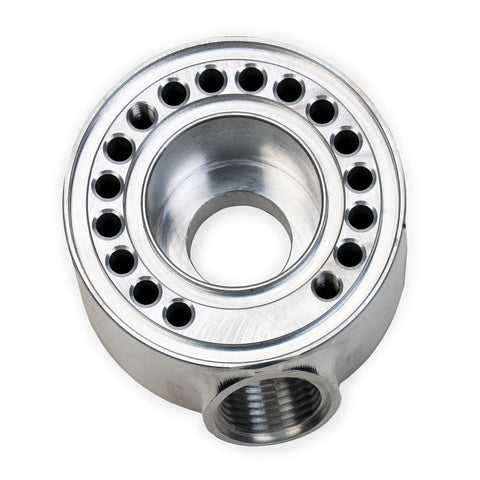

• MAP Custom Billet Aluminum oil filter adapter to retain ground clearance for factory filter, and clear the factory undertray, designed and made in house for the 1.5T Civic platform
• 1/8" NPT port to add Pressure or Temperature gauges

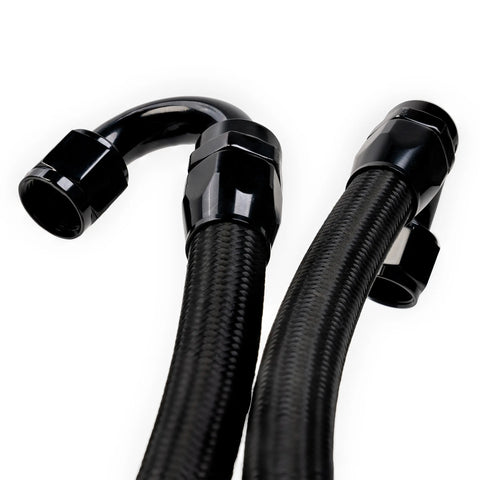

• Lightweight Braided System1 Designs AN lines and fittings
• Mocal oil cooler core, that with lines adds oil capacity to the system
• All stainless hardware to prevent corrosion
• MAP 304 stainless mounting bracket

Benefits

• 100% Direct Fit
• Increased Oil Capacity
• Increased Oil Cooling
• Maintains Ground clearance for oil cooler

Applications

• 2022+ Honda Civic Si 1.5T

What's In The Box?

• (1) MAP 1.5T Civic Oil cooler mounting bracket
• (1) MAP 1.5T Civic Oil cooler line kit (2 lines)
• (1) MAP 1.5T Civic Oil cooler filter sandwich plate (2 Pieces)

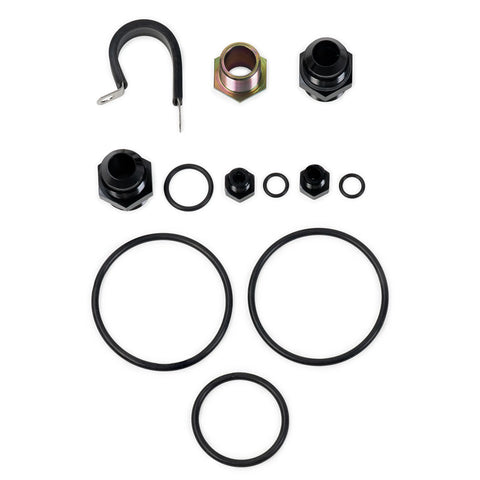

• (2) -10AN to -10ORB Fittings
• (2) -4AN Hex Head Plugs
• (1) 1/8NPT Alen Plug
• (1) 3/4 Mil-Spec Washer
• (1) MAP 1.5T Civic Oil cooler Custom 24mm Slim nut
• (1) MAP 1.5T Civic Oil cooler Filter Stud
• (1) Mocal Oil Cooler
• (2) Mocal Oil Cooler to -10AN Fittings

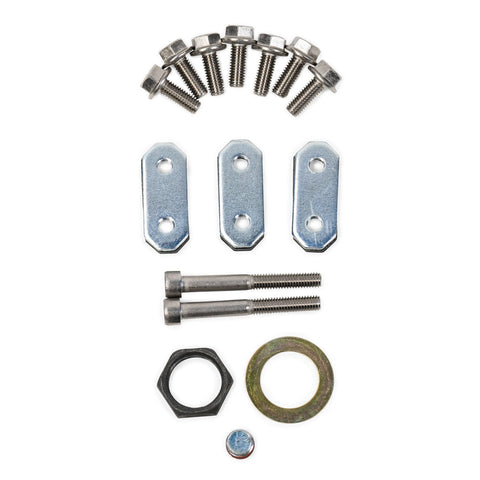

• (2) M6x1.0x55 Socket Head Bolts
• (8) M6x1.0x16 Hex Head Bolts
• (1) 222 Buna-N O-ring
• (2) 229 Buna-N O-ring
• (2) 7/8" Rubber Loop Clamps
• (4) M6 Threaded Plates
• (4) M6 Rubber isolators

References

• Torque Specs: 25 ft/lbs on 24mm mounting nut & 60 in/lbs on m6 housing mounting allen bolts

Warranty

• MAP Lifetime Warranty
