2016-2017 Civic 1.5T Oil Cooler Kit By MAPerformance
Not many things can kill a motor as fast as overly high oil temps, and we are not alone in finding that the stock Civic X 1.5T system is not up to the task. From lapping days to daily driving, and everything in between our MAPerformance Civic X 1.5T Oil cooler kit will do everything you need and more!

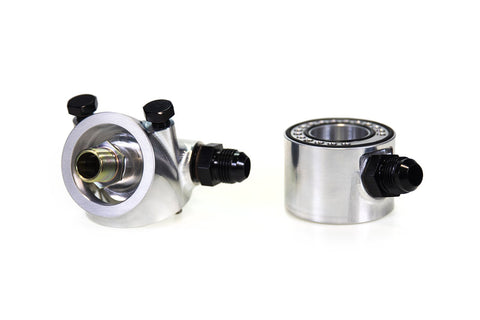

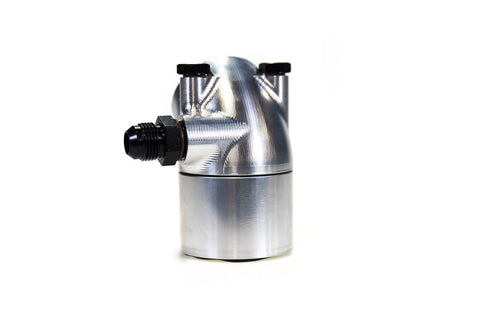

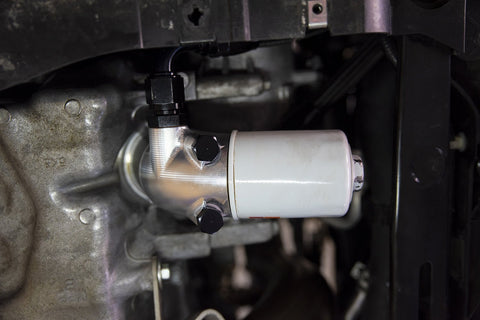

When it came time to design the MAPerformance Civic X 1.5T Oil Cooler kit we were not happy with any of the filter sandwich plates on the market, as they all spaced the oil filter so far down that it became the lowest point on the car. In doing so it would no longer clear the factory under-tray, causing to you to either have to trim it, or space it. With that in mind, we designed our two-piece filter adapter to not only to fit as we would like but also to function perfectly providing nearly zero restrictions or pressure drop in the system. Due to the lack of factory oil pressure monitoring, we felt it was very important to add the 1/8 NPT port to the side of the housing, as to provide the key information of oil temperature, pressure, or both depending on the sensor utilized.

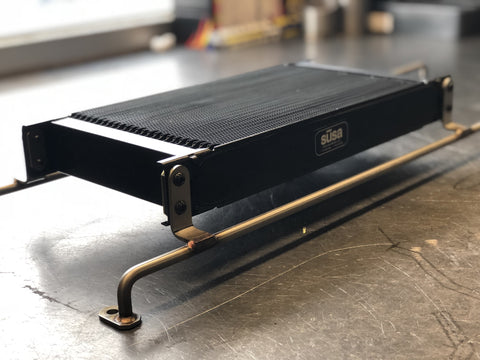

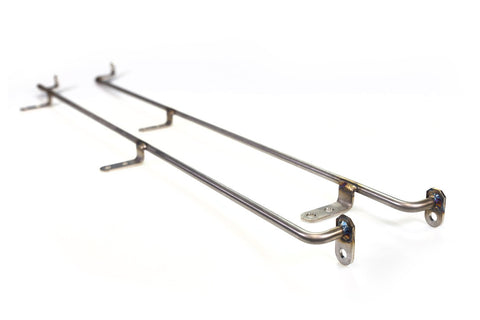

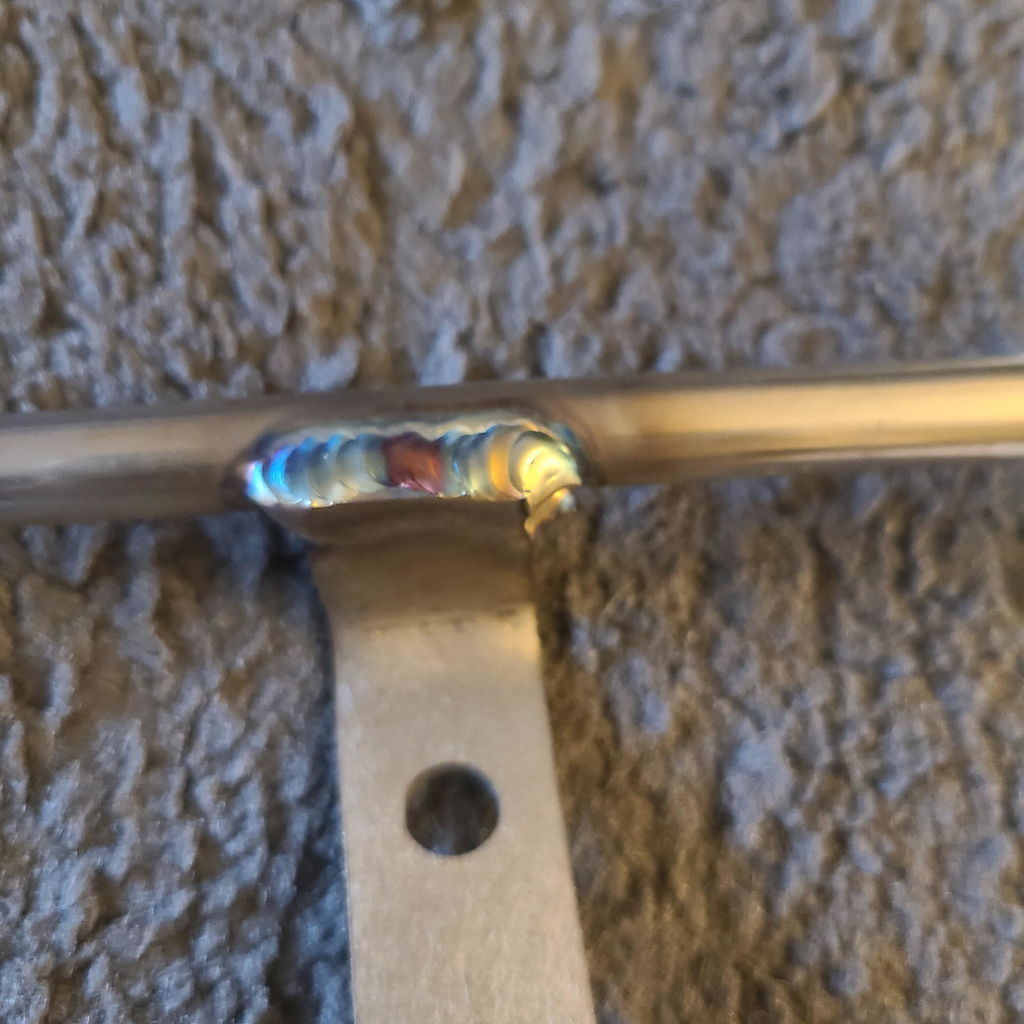

To mount the cooler, we designed our MAPerformance 304 Stainless hand Tig welded bracket produced right here at our USA facility. This bracket not only looks stylish for many years but is also a 100% bolt-on solution meaning no cutting or trimming is required to any part of your car(You do remove a few small pieces of plastic) keeping the installation as easy as can be!

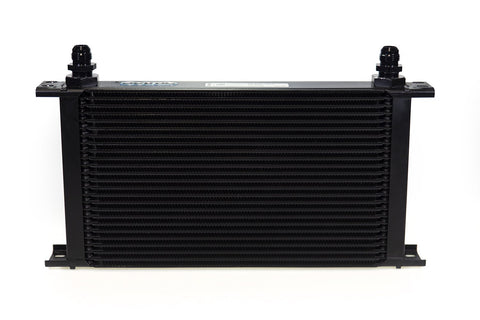

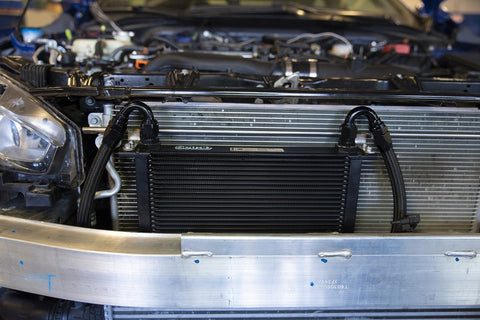

For the cooler, we selected one of the largest SETRAB cores that we could fit, and keep in a reasonable budget. SETRAB has been an industry leader in the cooling industry for generations, and there is no better fit! There were multiple reasons for this decision, the obvious being that it would pull as much heat out of the system as possible and cool the oil to reasonable temperatures. The secondary reasoning is that the L15B7 has a very small oil capacity and being able to add nearly a full quart to the system will help in both temperature and also helping keep the oil pressure stable at all times!
Features

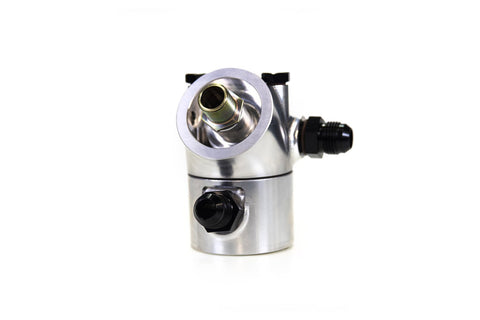

- MAP Custom Billet Aluminum oil filter adapter to retain ground clearance for factory filter, and clear the factory undertray, designed in house for the 1.5T Civic platform
- 1/8 NPT port to add Pressure or Temperature gauges

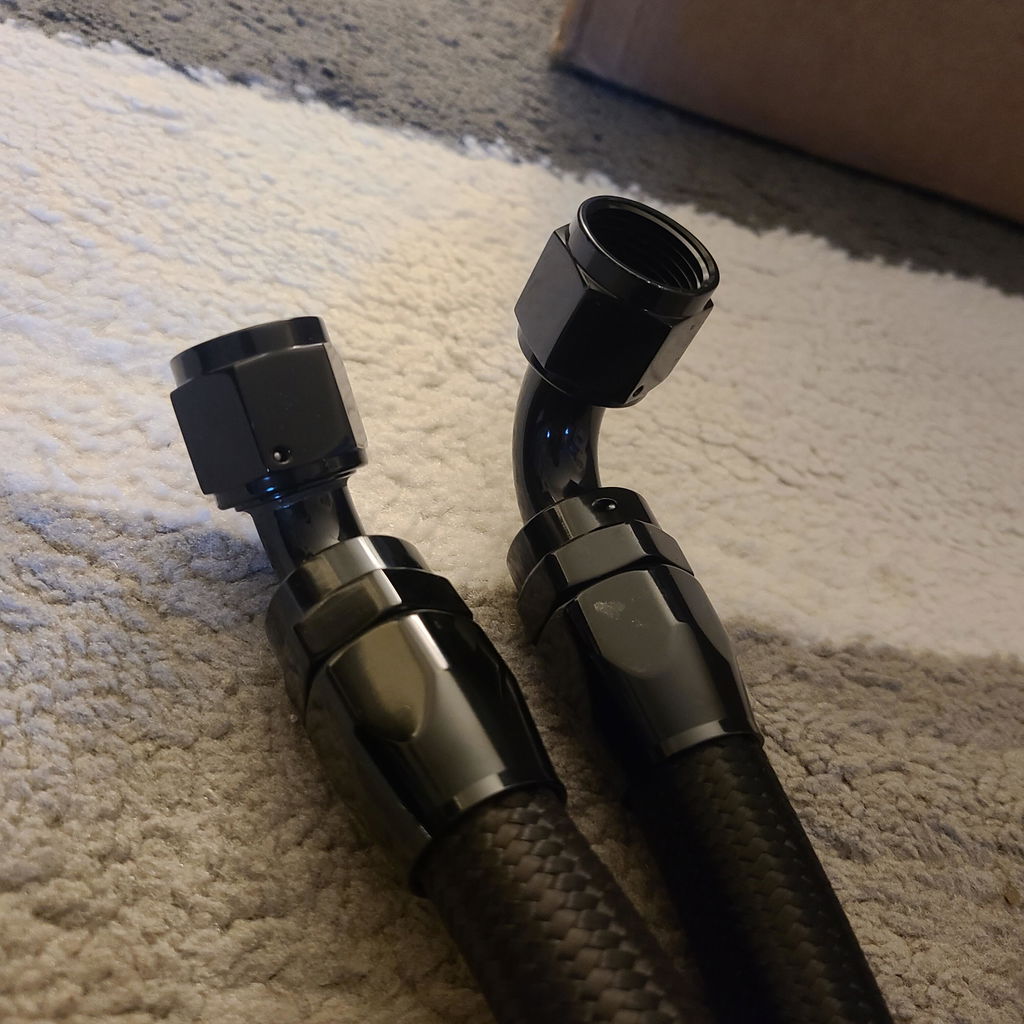

- Lightweight Braided Squirrelly Performance AN lines and fittings
- Large capacity SETRAB oil cooler core, that with lines adds nearly 1qt of oil capacity to the system
- All stainless hardware to prevent corrosion
- MAP USA Made stainless Tig welded mounting bracket
Benefits
- 100% Direct Fit
- Made in the USA
- Increased Oil Capacity
- Increased Oil Cooling
- Maintains Ground clearance for oil cooler
Applications
- 2016-2021 Honda Civic 1.5T
- 2017-2021 Honda Civic Si 1.5T
What's in the box?
- (1) MAP 1.5T Civic Oil cooler mounting bracket (Upper and Lower)
- (1) MAP 1.5T Civic Oil cooler line kit (2 lines)
- (1) MAP 1.5T Civic Oil cooler filter sandwich plate (2 Pieces)
- (2) -10AN to -10ORB Fittings
- (2) -4AN Hex Head Plugs
- (1) 1/8NPT Alen Plug
- (1) 3/4 Mil-Spec Washer
- (1) MAP 1.5T Civic Oil cooler Custom 24mm Slim nut
- (1) MAP 1.5T Civic Oil cooler Filter Stud
- (1) Setrab Oil Cooler
- (2) Setrab Oil Cooler to -10AN Fittings
- (2) M6x1.0x55 Socket Head Bolts
- (8) M6x1.0x16 Hex Head Bolts
- (1) 222 Buna-N O-ring
- (2) 229 Buna-N O-ring
- (2) 7/8 Rubber Loop Clamps
- (4) M6 Threaded Plates
- (4) M6 Rubber isolators
References
- Installation Instructions
- Torque Specs: 25 ft/lbs on 24mm mounting nut & 60 in/lbs on m6 housing mounting allen bolts
1.) All MAPerformance in-house fabricated parts include a Limited Lifetime Warranty for the Original Purchaser. This warranty only applies to the original purchaser and is non-transferrable. If the product fails it would need to be determined by MAPerformance that it is due to manufacturing defects in materials or workmanship. The purchaser will be responsible for sending the product back, after contacting MAPerformance and reporting the failure. Further instructions will be provided by MAPerformance.
2.) This does not cover normal wear and tear. Improper use, modification, or abuse voids this warranty. MAPerformance will not be held responsible for additional costs due to the failure of a product (cost of sale, towing, labor, etc.). Warranty claims must be submitted to MAPerformance for review. Products that are factory coated must adhere to the break in process. Only products coated by MAPerformance will be covered. Products will not be covered if wrapped.
3.) MAPerformance “Limited Lifetime” Warranty does not apply to all products. Kits, packages, bundles, or any non fabricated parts and products by MAPerformance are not warrantied. Engines and engine assemblies are not warrantied. Cast components are warrantied for 3 years from purchase date.

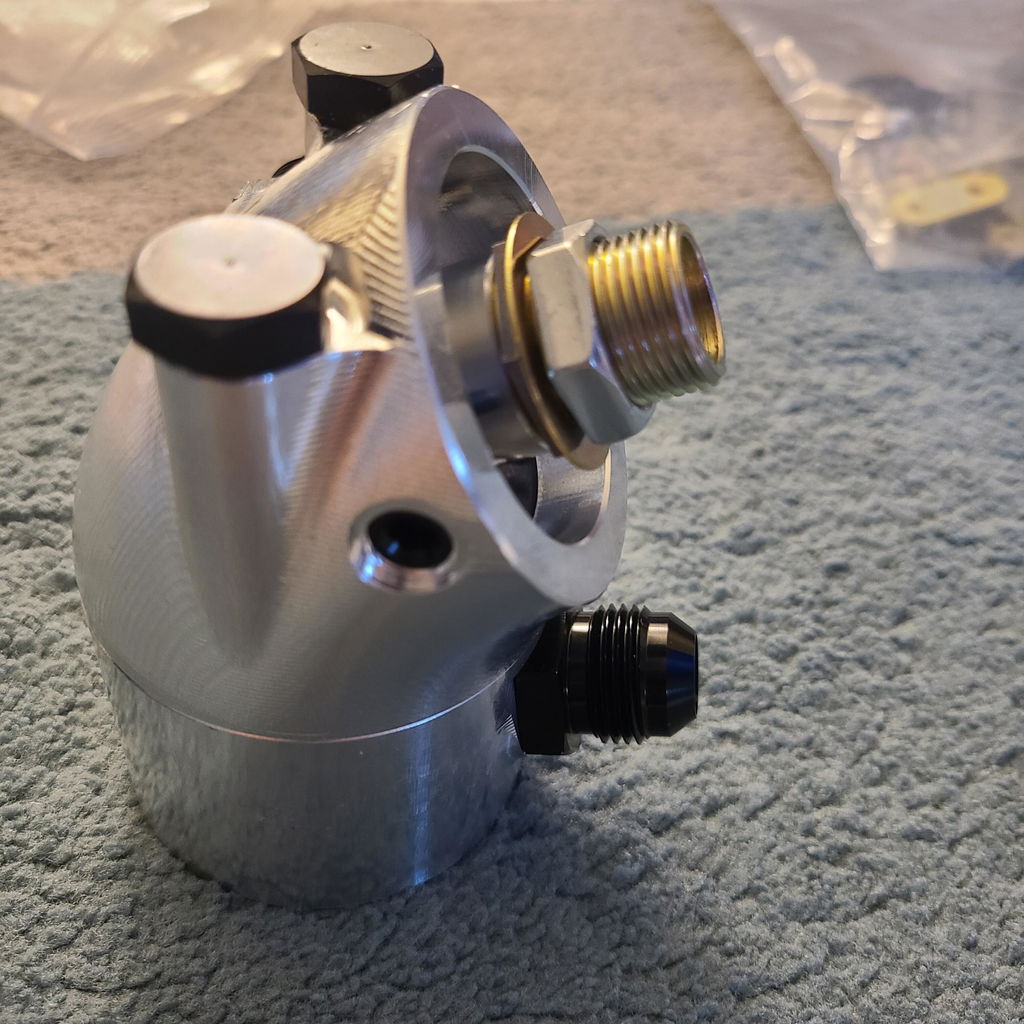

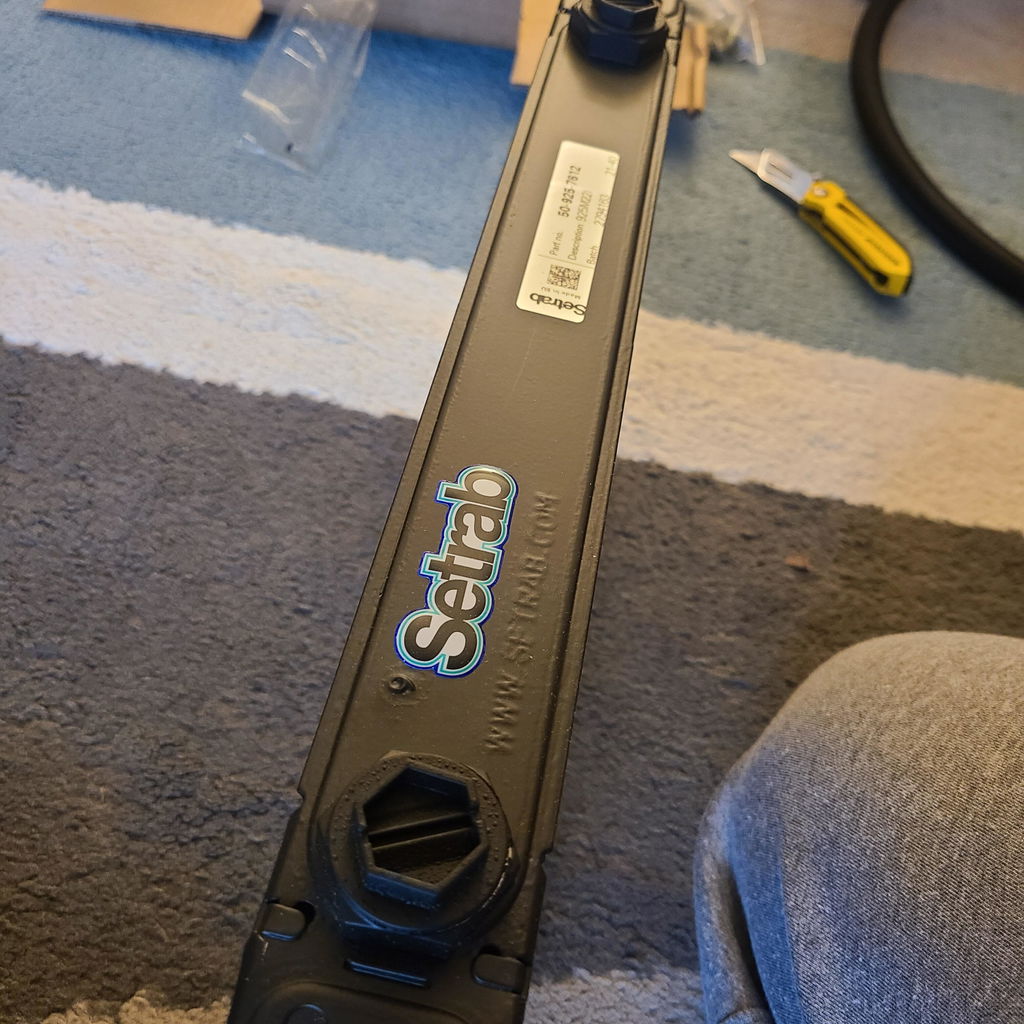

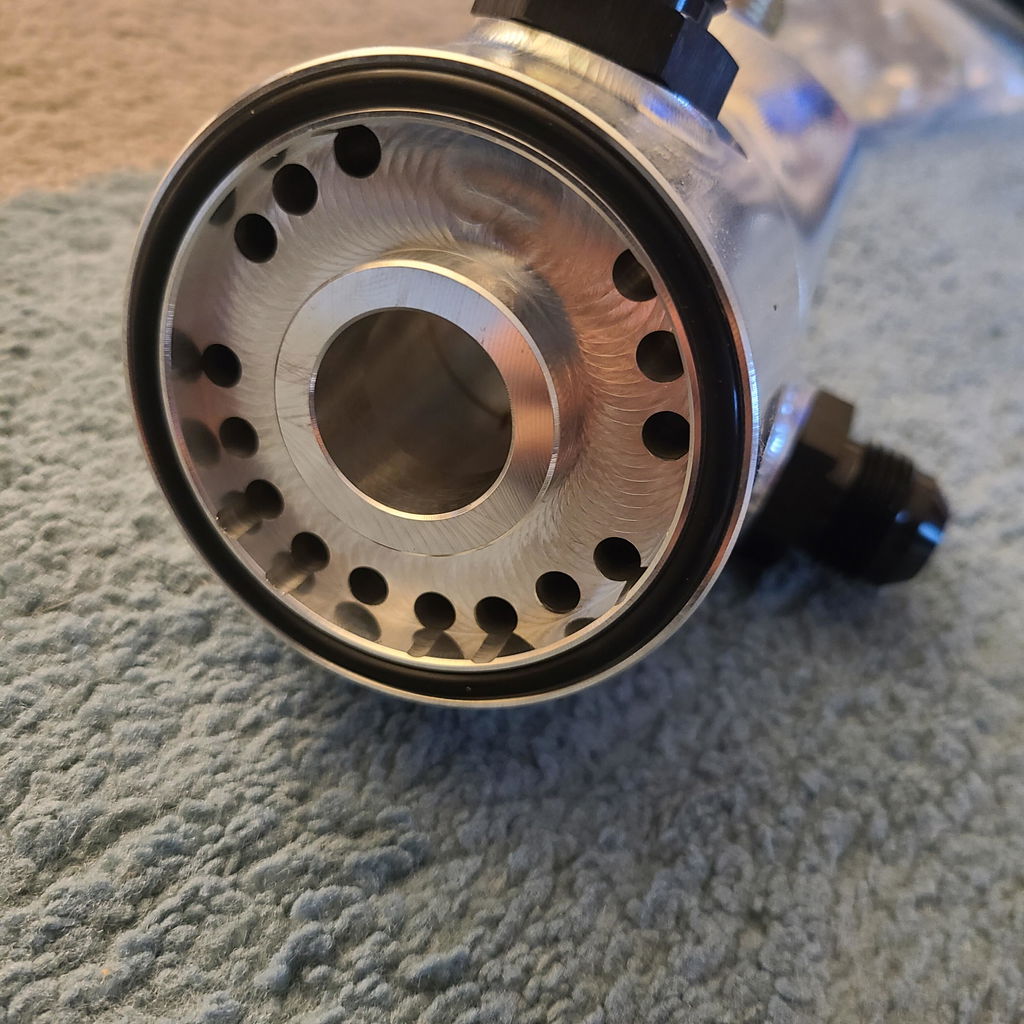

I bought the MAP oil kit because of the quality parts used, the setrab cooler, the beautifully machined adapter block. More expensive then some other available but the engineering that went into the kit is worth it. Do not want to worry about hoses rubbing on the A/C lines like some other kits. The additional quart of oil will help with the gas dilution issue the l15b7 suffers from as well.
