Manley Performance Piston Ring Set - Double Tabbed Premium Steel 86.0mm Bore | 2015-2021 Subaru WRX / 2013-2020 Subaru BRZ / Scion FR-S / Toyota 86 (46861DT)
Manley Performance
FREE Delivery As Fast As by ,
FREE* SHIPPING ON ORDERS OVER $149
30-DAY RETURNS
*SEE DETAILS
*SEE DETAILS
33,000+ 5 STAR REVIEWS
MAP FITMENT GUARANTEE
Piston Rings for 2015-2021 Subaru WRX / 2013-2020 Subaru BRZ / Scion FR-S / Toyota 86 w/ 86.0mm Bore Diameter by Manley Performance

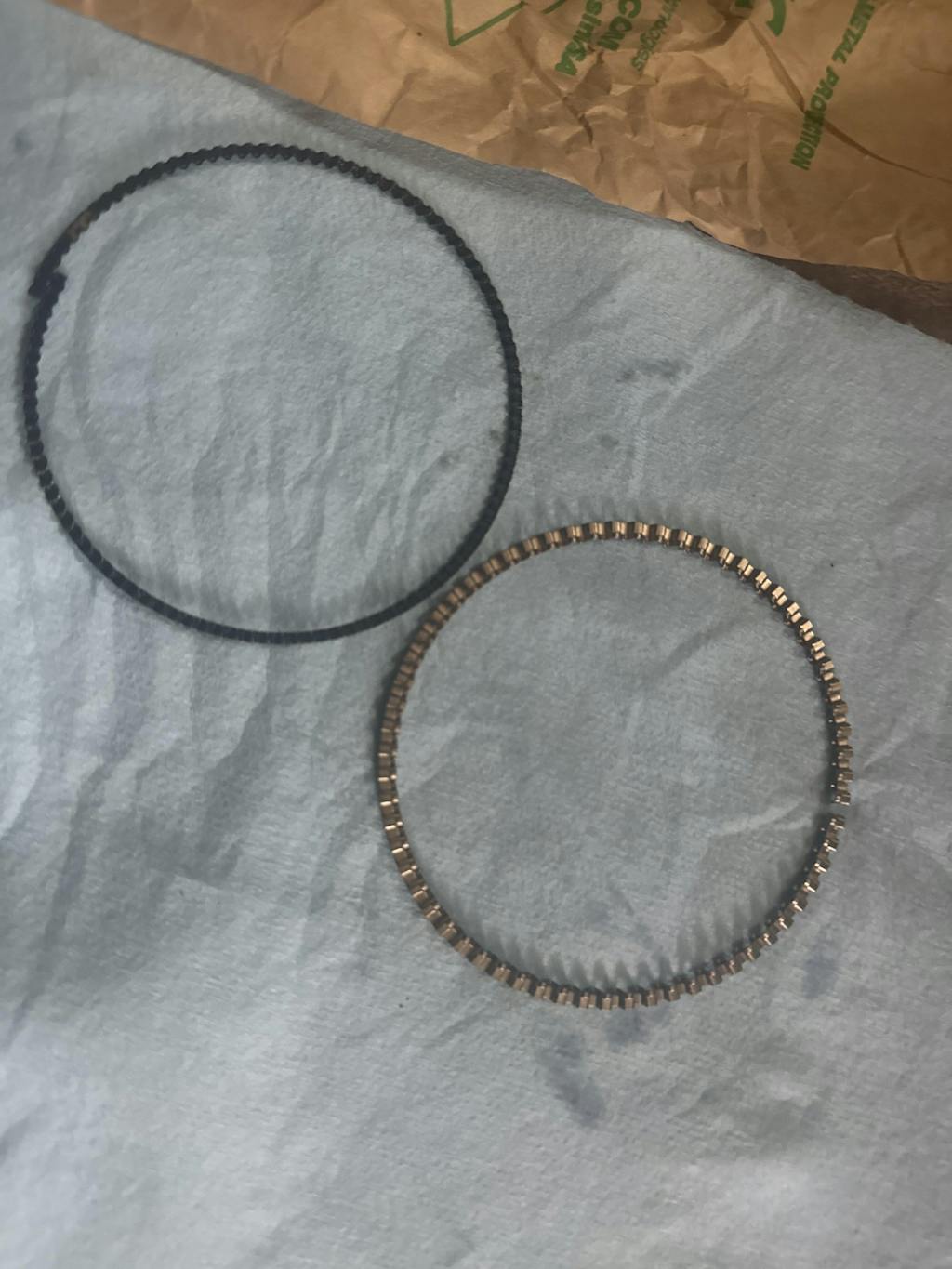

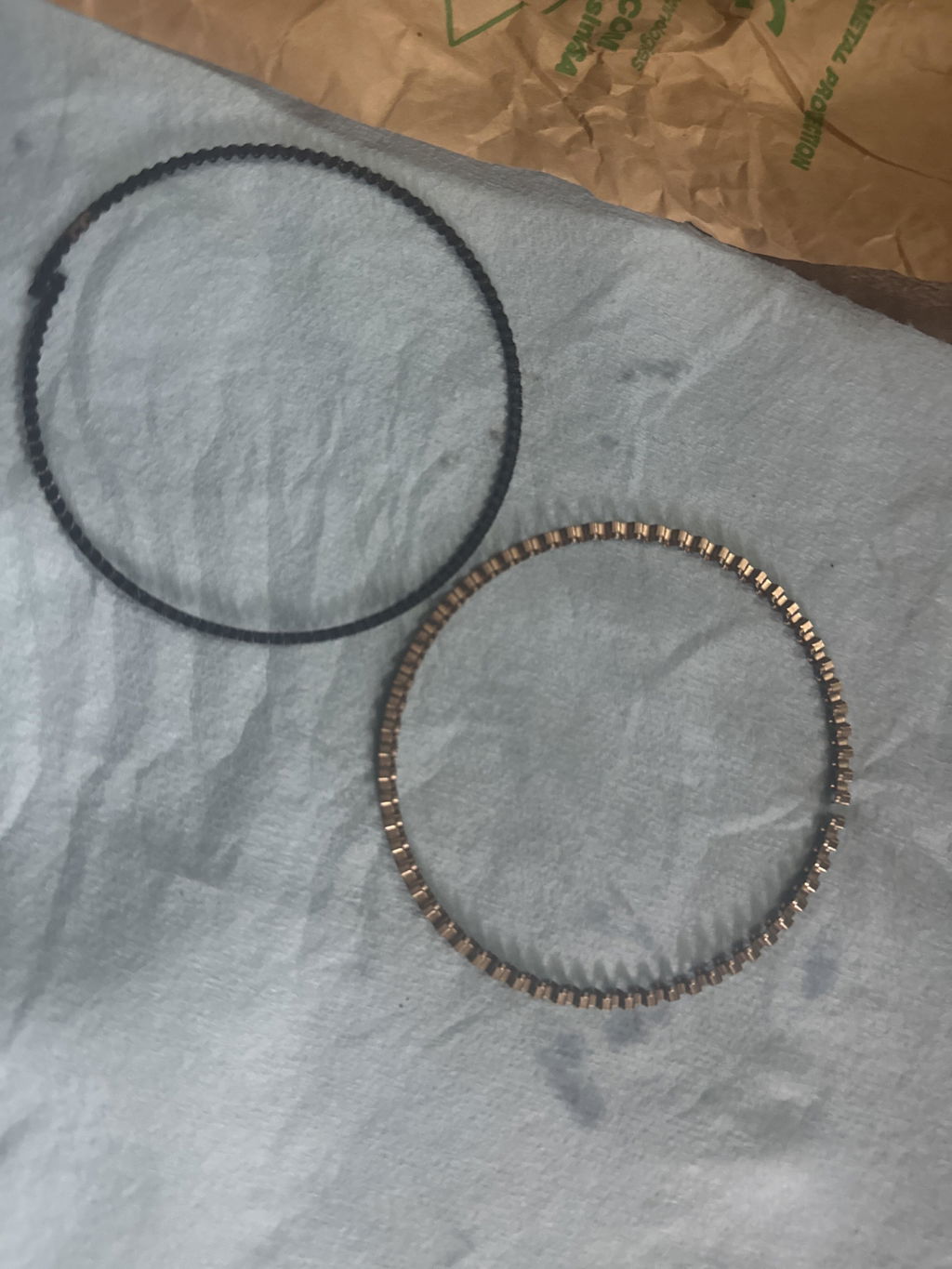

Manley Piston Rings provide minimal blowby and increased horsepower while maintaining cooler, cleaner oil resulting in longer engine life. Manley ring sets feature a ductile iron plasma moly top ring, a conventional reverse twist cast iron second ring, and a 3 piece standard tension oil ring.
Measurements
- Material: Double Tabbed Premium Steel
- Bore Diameter: 86.0mm
- Top Ring Width: 1.2mm
- 2nd Ring Width: 1.5mm
- Oil Ring Width: 3.0mm
- Oil Ring Tension: 9-13-lbs.
- Installation Type: File Fit
Please Note: Manley Piston Rings are purpose-built to be installed on Manley Pistons only. Installed or partially installed piston rings are ineligible for return.
Applications
- 2013-2020 Subaru BRZ (FA20)
- 2013-2016 Scion FR-S (4UGSE)
- 2015-2021 Subaru WRX (FA20)
What's In The Box?
- 4 - Piston Rings
Warranty
- Limited Manufacturers Warranty
