Manley Performance 6.125 H-Tuff Series Connecting Rod w/ ARP 2000 Bolts - Single | Multiple Fitments (15051R-1)

Small Block Chevrolet LS / LT1 Series H-Tuff Steel Connecting Rods - Single by Manley Performance

Don’t be fooled; not all H-Beams are created equal. Manley H-Beams are not only very “economically” priced, but they are finished to the same exacting tolerances and high quality standards as our Sportsmaster® and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market. Available with both ARP 8740 and ARP 2000 bolts.

Features

• Connecting Rod Length Center to Center (in.): 6.125”
• Big End Bore: 2.225”
• Big End Width: 941”
• Pin Diameter: 1.060”
• Pin Bore: .9281”
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% magnafluxed
• Weight matched sets ± 1.5 grams
• 7/16” ARP 2000 come standard with the H-Tuffs
• 1,000 HP (Oval Track), 1,200+ HP (Drag Race)

Benefits

• Bridges the gap between our standard, proven H-Beams and top of the line, best of the best Pro Series I-Beam rods
• H-Tuff delivers a stronger rod with greater safety margin to handle elevated boost and higher power levels for a modest price premium over standard H-Beams
• H-Tuff design incorporates wider beam and increased cross-sectional thickness in critical areas along with a ribbed pin surround

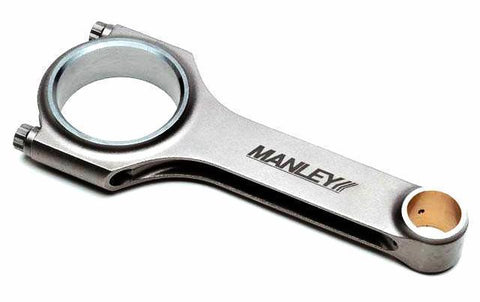

Please Note: The image provided is generic and may not be an accurate representation of the product you will receive

Applications

• 1997–2004 Chevrolet Corvette C5
• 1998–2002 Pontiac Firebird Formula, Trans Am
• 1998–2002 Chevrolet Camaro Z28
• 1998–2002 Chevrolet Camaro SS
• 2004–2006 Pontiac GTO
• 2001–2004 Chevrolet Corvette C5 Z06
• 2004–2007 Cadillac CTS V-Series
• 2005–2007 Chevrolet Corvette
• 2005–2006 Chevrolet SSR
• 2006–2009 Chevrolet TrailBlazer SS
• 2005–2008 Pontiac Grand Prix GXP
• 2006–2009 Chevrolet Impala SS
• 2006–2007 Chevrolet Monte Carlo SS
• 2008–2009 Buick LaCrosse Super
• 2006–2013 Chevrolet Corvette Z06
• 2013 Corvette 427 Convertible
• 2014–2015 Chevrolet Camaro Z/28
• 2008–2013 Chevrolet Corvette
• 2010–2015 Chevrolet Camaro SS (manual only)
• 2014–2019 Chevrolet Corvette C7
• 2016–present Chevrolet Camaro SS

What's In The Box?

• 1 - Rod

Warranty

• Manley products, due to their intended use, are sold without warranty.
