Manley 2.3L Ecoboost Pistons | 2013+ Ford 2.3L Ecoboost Engines (637000C)

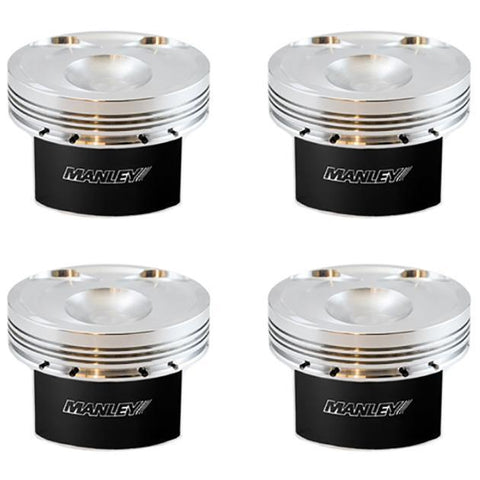

Manley 2.3L Ecoboost Engine Platinum Series Pistons

Turn up the boost with help from Manley! That's right, these durable 2.3L Ecoboost pistons will support tons of boost to keep your car on the streets!

Features

• 2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups
• .150” x 2.250” wall Premium Chrome Moly pin (Standard Series) included P/N 42248
• 9310 alloy .210” wall pin (Extreme Duty Series) included P/N 42548
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top ring sets and round wire locks included

Recommended Piston Clearance: .0030” measured 1.100” from the bottom of the oil ring

Applications

• Ford 2.3L Ecoboost Engines
• 2015 - 2019 Ford Mustang EcoBoost
• 2016 - 2018 Ford Focus RS

Specifications

• Rod Length: 5.875"
• Stroke: 94mm
• Compression Distance: 1.291"
• Dome Volume: -8.2cc
• Compression Ratio: 9.5

What's in the Box?

• 4 - Platinum Series Pistons

Warranty

• Manufacturer Standard Warranty
