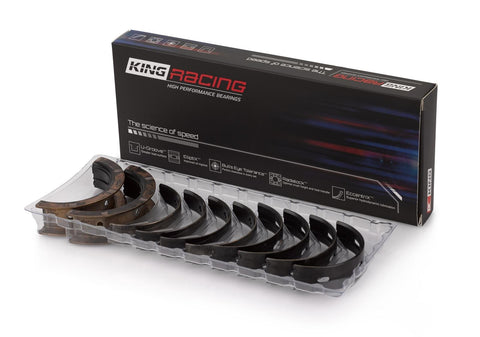

    King XPG Series OD+.005 Oversize Outside Diameter Main Bearing

    PART# KIN MB5740XPG
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 100.43   $ 165.00
    You Save 39% ($ 64.57)


    Built To Order Delivered by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 2.01 Toward Next Purchase!

    Due to the nature of the Subaru split-block boxer engine design, where two halves of the engine are fastened together around the crankshaft, there can often be distortion or misalignment even on new engine blocks. This distortion can lead to uneven main bearing wear and occasionally bearing failure due to insufficient lubrication and overloading of the bearing surface material. Main line bore distortion can also occur in new blocks that have been assembled using high strength case fasteners, which are common in racing and high performance engine builds.

    When an EJ engine requires a repair to remedy a main line bore distortion issue, the labor involved can be tedious and therefore very expensive. The machinist would have to remove material from both sides of the split-block's mating surfaces and bore or hone back to a STD housing bore measurement so that a standard OD bearing can be utilized. This process also requires and extreme amount of precision and can cause a change in the crankshaft centerline to deck surface distance that would need to be compensated for.

    Housing Bore Spec's

    • 2.5247"-2.5255"
    • 64.127mm-64.147mm

    Crankshaft Undersizes

    • STD
    • STDX
    • .026
    • .25
    • .50

    Please Note: These are not to be used with NON-MACHINED blocks.

    Applications

    • 2004-2012 Subaru WRX
    • 2004-2012 Subaru STI

    What's in the box?

    • 1 Set of Main Bearings

    Warranty

    • King Limited Warranty
    • For More Info Contact Us

    Due to the nature of the Subaru split-block boxer engine design, where two halves of the engine are fastened together around the crankshaft, there can often be distortion or misalignment even on new engine blocks. This distortion can lead to uneven main bearing wear and occasionally bearing failure due to insufficient lubrication and overloading of the bearing surface material. Main line bore distortion can also occur in new blocks that have been assembled using high strength case fasteners, which are common in racing and high performance engine builds.

    When an EJ engine requires a repair to remedy a main line bore distortion issue, the labor involved can be tedious and therefore very expensive. The machinist would have to remove material from both sides of the split-block's mating surfaces and bore or hone back to a STD housing bore measurement so that a standard OD bearing can be utilized. This process also requires and extreme amount of precision and can cause a change in the crankshaft centerline to deck surface distance that would need to be compensated for.

    Housing Bore Spec's

    • 2.5247"-2.5255"
    • 64.127mm-64.147mm

    Crankshaft Undersizes

    • STD
    • STDX
    • .026
    • .25
    • .50

    Please Note: These are not to be used with NON-MACHINED blocks.

    Applications

    • 2004-2012 Subaru WRX
    • 2004-2012 Subaru STI

    What's in the box?

    • 1 Set of Main Bearings

    Warranty

    • King Limited Warranty
    • For More Info Contact Us
