K&N Typhoon Air Intake System | 2009-2013 Mazda 6 2.5L (69-6028TTK)
K&N FiltersTyphoon Cold Air Intake System by K&N

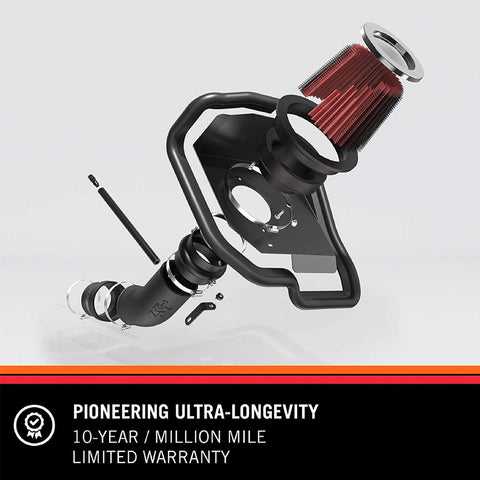

The K&N 69-6028TTK Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda 6 models.

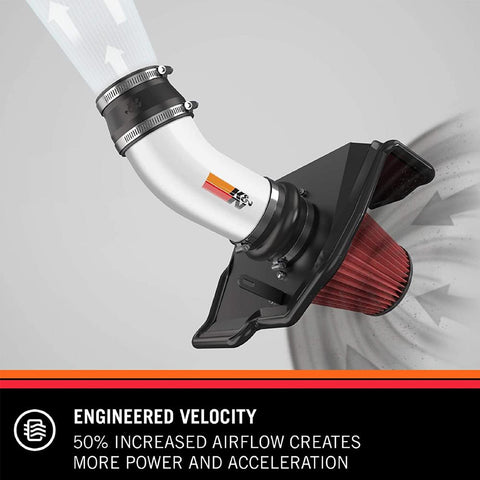

The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6028TTK air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs into the previous air box space. Air is directed through the intake tube into the engine’s throttle body for a guaranteed power gain. The intake tube has an attractive textured black powder-coat finish that's made to last and it accommodates the factory mass air sensor and replacement silicon crank case vent hose.
The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a couple of screwdrivers, ratchet set and several wrenches. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.
Features
- Guaranteed to increase horsepower
- Designed to improve throttle response and engine sound
- Low restriction aluminum tube
- Easy to install, usually in 90 minutes or less
- Filter lasts up to 100,000 miles before service is required
- Replaces stock air intake system
- Washable and reusable lifetime air filter
- K&N Million Mile Limited Warranty
This intake system is legal for street use in most states. However, it is not legal for sale or street use in California or states that have adopted California Emissions Standards under Section 177 of the Federal Clean Air Act of 1970.
Applications
- 2009 - 2013 Mazda 6 2.5L
Specifications
- Estimated HP Gain - 5.55 HP @ 5100 RPM
- Replacement Filter - RU-4960
- Air Filter Material - Cotton Gauze
- Air Filter Outlet Shape - Round
- Air Filter Height - 5.5 in (140 mm)
- Air Filter Large End Diameter - 6 in (152 mm)
- Clamp Material - Stainless Steel
- Clamp Style - Regular
- Intake Pipe Color/Finish - Textured Black
- Intake Pipe Material - Aluminum
What's In The Box?
- 1 - K&N Air Filter (RU-4960)
- 1 - K&N Typhoon Intake Tube
- 1 - K&N Intake Heat Shield
- 1 - Silicone Coupler
- 3 - Stainless Steel Clamps
- Mounting Hardware
References
Warranty
- Manufacturer's Warranty
