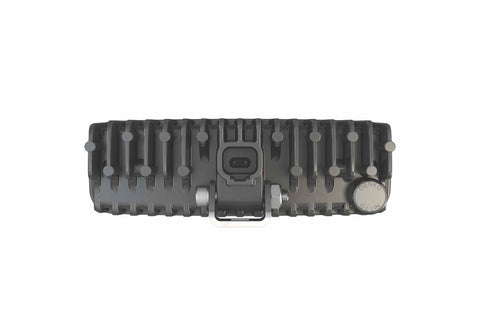

JW Speaker: 791D-12/24 DRIVING LAMP (1603511)

The new Model 791 combines high performance optics and a compact design to provides a powerful punch and mount almost anywhere! Designed with rugged aluminum housing and universal mounting bracket, this 6in x 2in LED work light is ideal for a variety of applications, anywhere from off-road to agriculture. Features: The rugged aluminum housing is highly durable and light weight, Convenient, bright-white work light offering maximum visibility, Available in driving light and flood beam patterns, Universal mounting bracket provides flexible mounting options for a variety of applications.

Features

• Height: 48.00 mm / 1.89 in
• Width: 150.00 mm / 5.91 in
• Depth: 62.90 mm / 2.48 in
• Shape: Rectangular
• Outer Lens Material: Polycarbonate
• Outer Lens Color: Clear
• Housing Material: Aluminum
• Housing Color: Black
• Bezel Color: Chrome
• Mounting Hardware Description: (x1) Bracket
• Mounting Type: Bracket
• Minimum Operating Temperature: -40 degC / -40 degF
• Maximum Operating Temperature: 65 degC / 149 degF
• Connector or Wiring: Deutsch DT04-2P
• Mating Connector: Deutsch DT06-2S
• Product Weight: 0.91 lbs / 0.41 kgs
• Shipping Weight: 1.10 lbs / 0.5 kgs
• Input Voltage: 12-24V DC
• Operating Voltage: 9-32V DC
• Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses
• Current Draw: 1.27A @ 12V DC, 0.78A @ 24V DC

Applications

• Universal

What's In The Box?

• HOUSING: 1x JW Speaker Model 791 LED Work Light
• PART NUMBER: 1603511
• OTHER: Instruction Card + JW Speaker Sticker

References

• Installation Instructions

Warranty

• WARRANTY: Lifetime Limited
