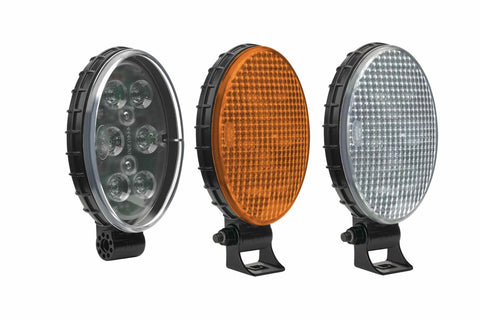

JW Speaker: 771F-12/48V XD LED Worklamp w/Harness (1705911)

Functionally identical to the Model 770 XD, the Model 771 XD is available in DC configuration and comes in your choice of beam patterns. It features a polycarbonate housing and lens for maximum protection. Features: UV-resistant polycarbonate lens, Universal mount, Horizontal oval version available (Model 770 XD).

Features

• Height: 180.34 mm / 7.1 in
• Width: 99.57 mm / 3.92 in
• Depth: 51.05 mm / 2.01 in
• Shape: Oval
• Outer Lens Material: Polycarbonate
• Outer Lens Color: Clear
• Housing Material: Polycarbonate
• Housing Color: Black
• Mounting Hardware Description: (x1) 5/16"-18 x 1.00" Mounting Bolt
• Mounting Type: Universal Pedestal Mount
• Minimum Operating Temperature: -40 degC / -40 degF
• Maximum Operating Temperature: 65 degC / 149 degF
• Connector or Wiring: Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
• Mating Connector: 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
• Product Weight: 0.75 lbs / 0.34 kgs
• Shipping Weight: 6.65 lbs / 3.02 kgs
• Input Voltage: 12-48V DC
• Operating Voltage: 10-55V DC
• Transient Spike Protection: 330V Peak @ 1 HZ-100 Pulses
• Red Wire: Positive
• Black Wire: Negative
• Current Draw: 1.00A @ 12V DC
• Current Draw: 0.48A @ 24V DC
• Current Draw: 0.33A @ 36V DC
• Current Draw: 0.25A @ 48V DC

Applications

• Universal

What's In The Box?

• HOUSING: 1x JW Speaker Model 771 LED Oval Work Light
• PART NUMBER: 1705911
• OTHER: Instruction Card + JW Speaker Sticker

References

• Installation Instructions

Warranty

• WARRANTY: Lifetime Limited
