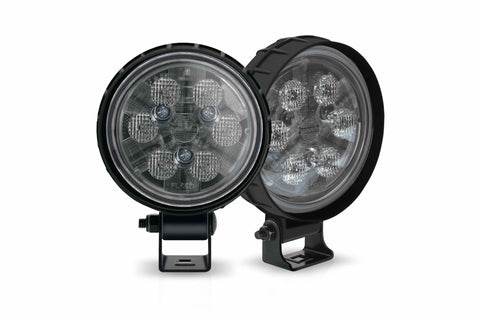

The 670 XD LED work light offers a safety solution including improved light output, glare reduction, and light placement for heavy-duty trucking on-road. With the addition of a SmartHeat heated lens, you'll find better and long-lasting visibility in any condition! (Note: Not meant for high speed plowing.) Features: Available with an SmartHeat heating system that automatically de-ices headlight according to ambient temperature, Low profile design deters ice build-up, Multiple beam patterns available, UV-resistant polycarbonate lens for rugged durability, Universal mount. SmartHeat Heating System:The heated versions of the Model 670 XD feature a thermally conductive grid system that will de-ice the lens up to twice as fast as other lights. This systemwill turn on when the light is on, generating enough heat to prevent ice build-up. The SmartHeat Heating System will turn off automatically when sensing that the ice & snow build up is gone and light is at a warmer temperature.


  • Height: 162.31 mm / 6.39 in
  • Width: 123.95 mm / 4.88 in
  • Depth: 52.58 mm / 2.07 in
  • Shape: Round
  • Outer Lens Material: Polycarbonate
  • Outer Lens Color: Clear
  • Housing Material: Polycarbonate
  • Housing Color: Black
  • Mounting Hardware Description: 5/16-18 x 1" Mounting Bolt
  • Mounting Type: Universal Pedestal Mount
  • Minimum Operating Temperature: -40 degC / -40 degF
  • Maximum Operating Temperature: 65 degC / 149 degF
  • Connector or Wiring: Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
  • Mating Connector: 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
  • Product Weight: 1.41 lbs / 0.64 kgs
  • Shipping Weight: 1.41 lbs / 0.64 kgs
  • Input Voltage: 12-24V DC
  • Operating Voltage: 10-30V DC
  • Red Wire: Positive
  • Black Wire: Negative
  • Current Draw: 1.3A @ 12V DC (Without Heat)
  • Current Draw: 0.6A @ 24V DC (Without Heat)
  • Current Draw: 2.1A @ 12V DC (With Heat)
  • Current Draw: 1.1A @ 24V DC (With Heat)


  • Universal

What's In The Box?

  • HOUSING: 1x JW Speaker Model 670 LED Work Light
  • PART NUMBER: 1403471, 1403491, 1403301, 1403311, 1403241, 1403281, 1403481, 1403501, 1403261, 1403271, or 1403251
  • OTHER: Instruction Card + JW Speaker Sticker



  • WARRANTY: Lifetime Limited
