    JE Pistons

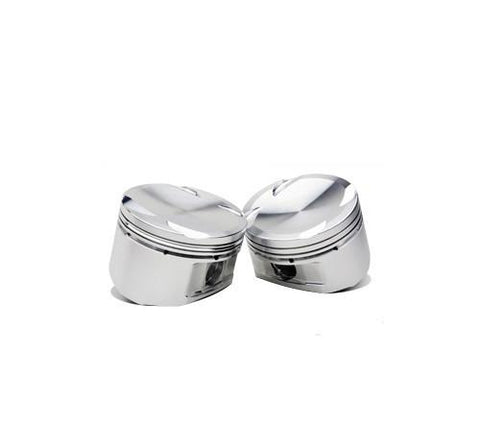

    JE Shelf Pistons w/pins, rings and locks

    PART# JEP 297479
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 433.34   $ 1,161.20
    You Save 63% ($ 727.86)

    Built To Order Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 8.67 Toward Next Purchase!

    JE Pistons are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Dome/Dish requires no deburring or preparation and features smooth flowing radii for excellent flame travel.

    Engine: MITSUBISHI 2001-2007 EVOLUTION VII-IX / 4G63 22MM PIN

    Pistons: 4
    Bore: 85.5mm
    Stroke: 94.0mm
    Rod: 150mm
    Compression Height: 31.7mm
    Head Combustion Chamber: 47cc
    Crown Volume: -17.9mm
    Weight (Grams): 296g
    Compression Ratio: 8.5:1 with .040
    Alloy: 2618 T6 high tensile forged aluminum
    Skirt: FSR (Forged Side Relief)
    Rings: 1.0 x 1.2 x 2.8mm rings included (JG1004-3366)
    Pins: .866 x 2.250 straight wall carbon steel wrist pin provided
    Application Note: Accepts Turbo and Nitrous

    Kit Feature: Pin fitting, wire locks, and rings included

    JE Pistons are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Dome/Dish requires no deburring or preparation and features smooth flowing radii for excellent flame travel.

    Engine: MITSUBISHI 2001-2007 EVOLUTION VII-IX / 4G63 22MM PIN

    Pistons: 4
    Bore: 85.5mm
    Stroke: 94.0mm
    Rod: 150mm
    Compression Height: 31.7mm
    Head Combustion Chamber: 47cc
    Crown Volume: -17.9mm
    Weight (Grams): 296g
    Compression Ratio: 8.5:1 with .040
    Alloy: 2618 T6 high tensile forged aluminum
    Skirt: FSR (Forged Side Relief)
    Rings: 1.0 x 1.2 x 2.8mm rings included (JG1004-3366)
    Pins: .866 x 2.250 straight wall carbon steel wrist pin provided
    Application Note: Accepts Turbo and Nitrous

    Kit Feature: Pin fitting, wire locks, and rings included
