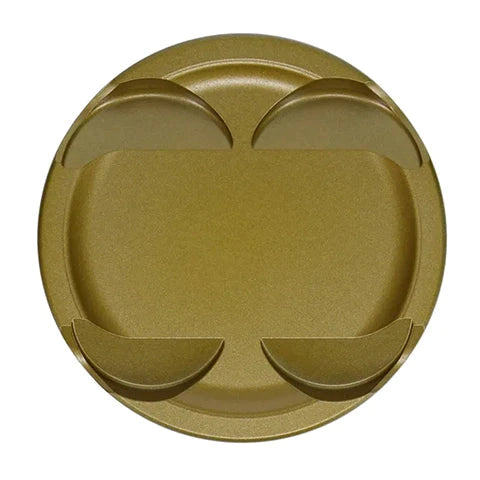

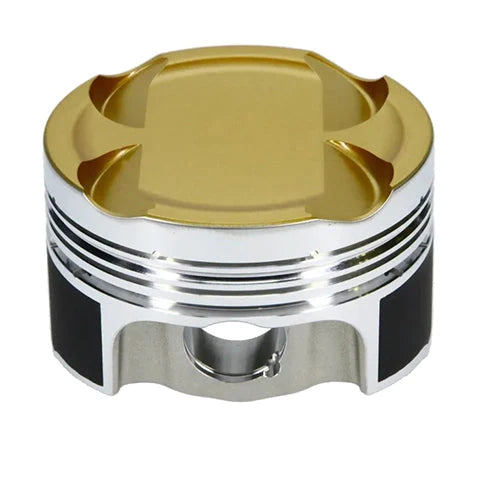

2012-2019 Cadillac ATS and 2013-2022 Chevrolet Malibu 86mm Bore Piston - Single by JE Pistons
JE Pistons Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.
Features
- Bore Diameter: 86.00
- Compression Height: 1.261
- Piston Volume: -1.30
- Piston Pin Outside Diameter: 0.945
- Piston Pin Length: 2.250
- Piston Pin Material: 5115
- Top Compression Ring Thickness: 0.0400
- Second Compression Ring Thickness: 0.0480
- Oil Ring Thickness: 0.111
- Piston Material: 2618
- Forging Type: FSR
Applications
- 2012-2019 Cadillac ATS
- 2013-2022 Chevrolet Malibu
What's In The Box?
- 4 - Pistons with Rings
Warranty
- JE Pistons' Standard Limited Warranty
