IAG V2 ALTERNATOR RELOCATION KIT FOR REVERSED INTAKE MANIFOLD & POWER STEERING 02-14 WRX, 04-21 STI, FXT, LGT, EJ20, EJ25

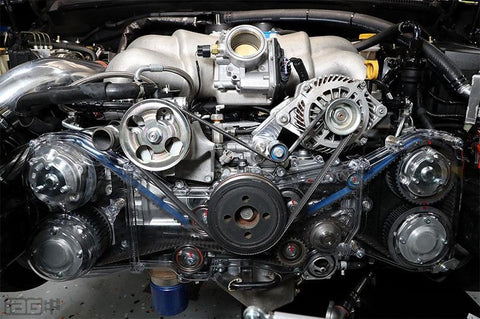

The IAG Performance Version 2 Alternator Relocation Kit is designed to help the vehicle builder create space at the accessory drive system in order to reverse the intake manifold 180 degrees so the throttle body faces forward. This is a common practice on many street vehicles as well as race cars that utilize a rotated turbo system.

The IAG V2 design features new improvements over the previous version both in quality and ease of install. Our latest bracket design relocates the alternator without requiring any modifications to the OEM bracketry or oil dip stick mounting for the EJ25. (EJ20 requires dipstick modifications). Additionally, the latest version features a specially designed spring-loaded indexing belt tension adjuster that makes the belt install easy.

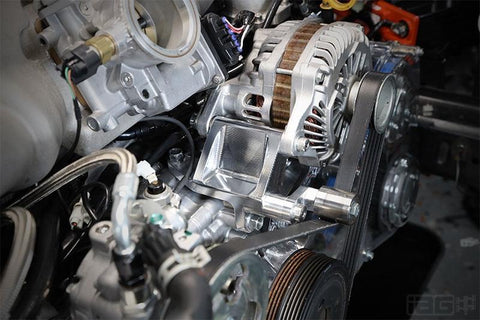

The V2 IAG Alternator Relocation Kit includes a CNC aluminum bracket with a spring-loaded indexing adjuster, accessory belt, powder-coated steel bracket, roller and hardware designed to work on the Subaru EJ25 series engines. Modifications to your OEM alternator bracket is not required.

Installation Notes

  • Aluminum relocation bracket with spring-loaded adjuster and roller comes loosely assembled
  • A/C must be removed
  • The bracket and belt system was designed to work with OEM pulleys
  • Depending on the application, the belt system, rollers, and turbo piping may require modifications to complete a reverse intake manifold installation.
  • Professional installation is recommended
  • For the 2.0L EJ21 WRX, the dipstick requires modification to fit

Applications

  • Subaru EJ20 / EJ25
  • 2002-2014 Subaru WRX
  • 2004-2021 Subaru STI
  • 2005-2009 Subaru Legacy GT
  • 2004-2013 Subaru Forester XT

What's In The Box?

  • (1) CNC Aluminum Relocation Bracket with Spring-loaded Belt Adjuster
  • (1) Powder-coated Steel Accessory Bracket
  • (1) Accessory Belt
  • (1) Roller
  • (7) Bolts
  • (2) Washers

Warranty

  • Manufacturer Standard Warranty

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
J.S.
Great

This alternator relocation kit is absolutely awesome it fits and looks great definitely recommended

D
D
Excellent

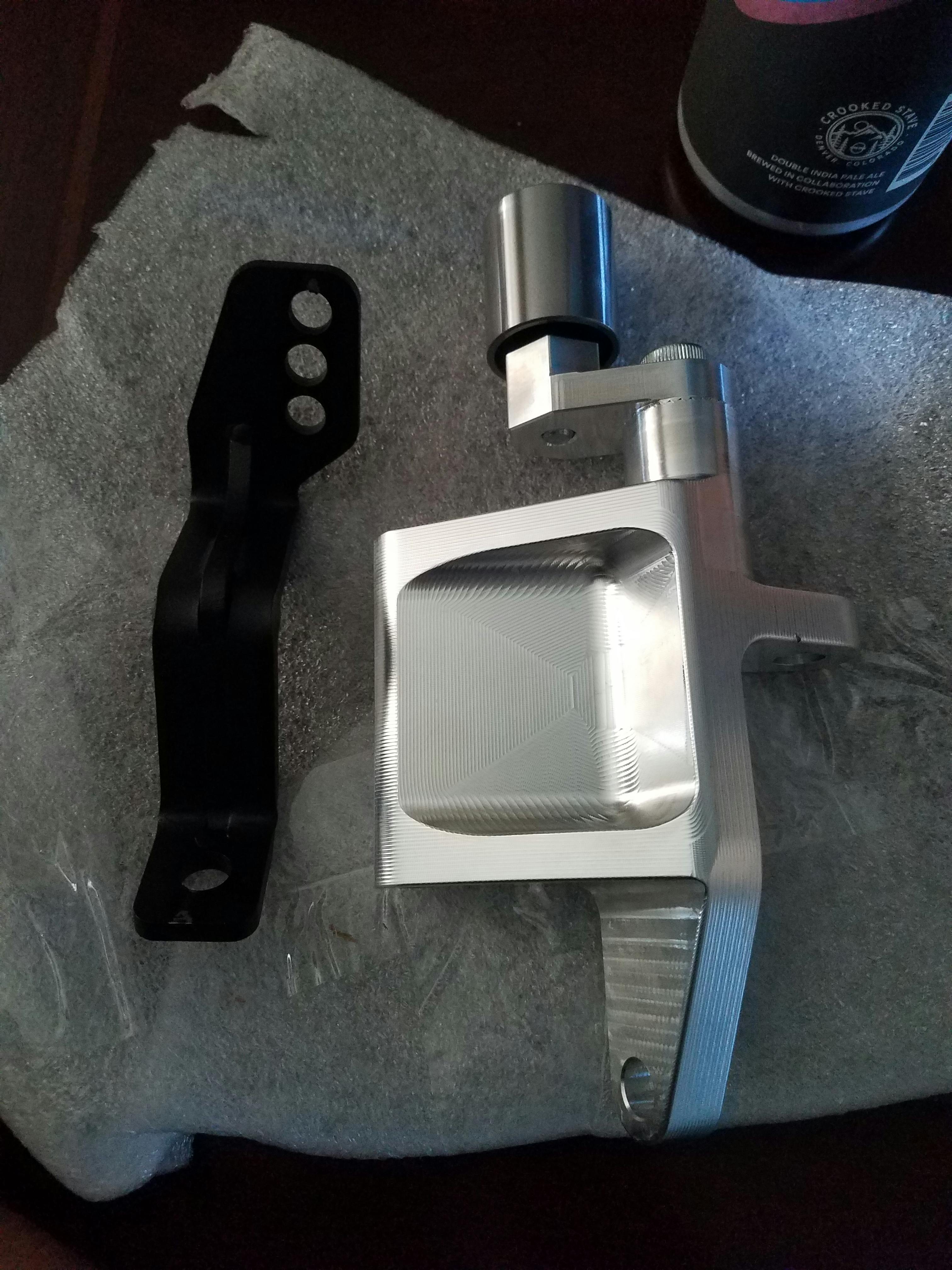

Way better than the version 1 and it's knock offs. I qustioned the price at first but the bracket is a beautiful piece off milled aluminum. Installation was a snap. Includes hardware. The new belt adjustment is very well engineered and simple to set up. No more having brackets cut and drilled. Its simple and it works.

It is worth noting that I auto cross my car and it sees redline on a regular basis. I have had zero belt retention issues.

My only trivial gripe is that it didn't come with instructions. However I got the PDF online in less than 5 min.

P
Preston R
Must have for anyone going rotated intake manifold!

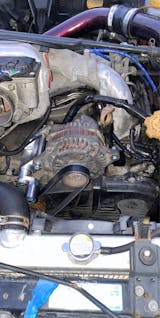

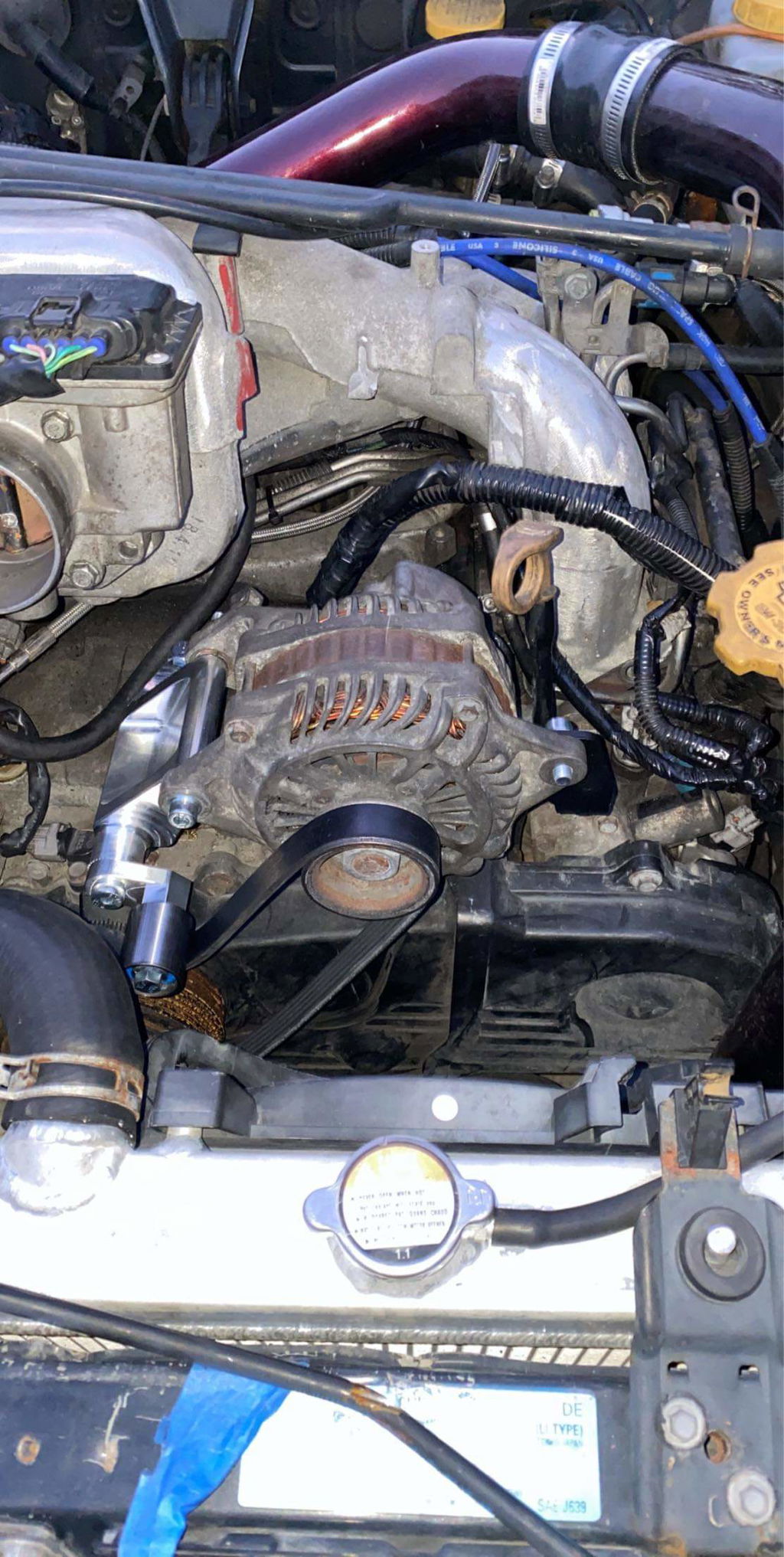

Gets rid of the dirty old cast bracket and replaces it a nice cnc'd bracket. This lets the alternator sit a lot lower than any of the other brackets available. Comes with all new hardware so you only have to reuse the nut from the back of the alternator. I used it on my Sohc 06 alvs engine and it only required minimal spacing to clear any issues.

J
John Topor

Great 👍
