IAG 1000 FA24 Subaru Closed Deck Short Block | 2022-2024 Subaru WRX (IAG-ENG-S1024)
IAG Performance*SEE DETAILS

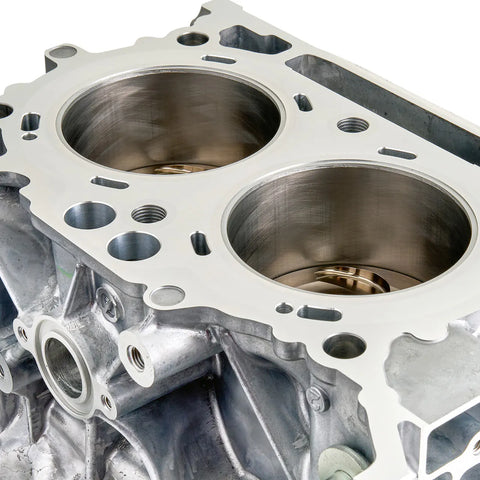

1000 FA24 Subaru Closed Deck Short Block for 2022-2024 Subaru WRX by IAG
The IAG 1000 FA24 Short Block combines top-tier components and cutting-edge technology to deliver the perfect balance of street reliability and track-level power. This ultimate "weekend racer" block is engineered to handle up to 1000 BHP and built to dominate in any setting.
The IAG 1000 FA24 Short Block features +2mm IAG Spec H-Beam forged connecting rods, IAG-Spec JE Pistons with electroless nickel-plated coating and H13 tool steel wrist pins. The block is precision-machined to accommodate our venerable "Fire-Lock" head gasket system and IAG 14mm head studs (sold separately).
Each IAG 1000 short block is hand assembled using ACL rod and main bearings. The versatile IAG 1000 is the perfect setup that excels on the street, the drag strip and on the track.
Features

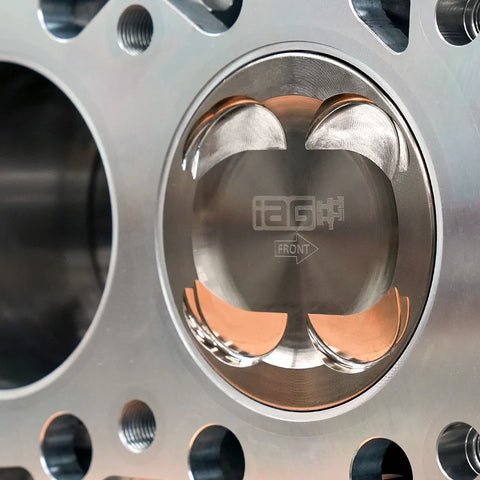

- Pistons: IAG-Spec JE FSR 94.25mm 2618 Forged Pistons, Electroless Nickel Plated Tops & Ring area, JE Pro Seal Ring Set, .230" wall .866" H13 Wrist Pins, Clips
- Head Studs: Machined for 14mm Head Studs

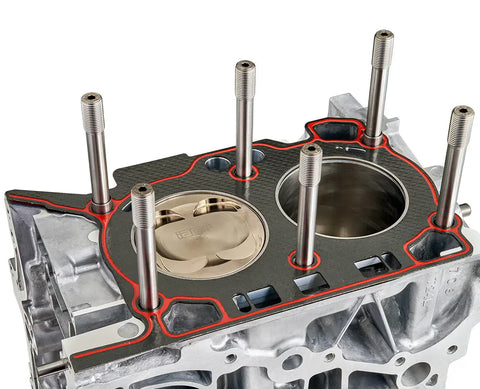

- Fire-Lock: IAG Fire-Lock receiver groove machining, latest solution to prevent head gasket failure on high horsepower and high boost Subaru's - *IAG Fire-Lock head gaskets required & sold separately
- Connecting Rods: IAG-Spec +2mm H-Beam Forged Connecting Rods with ARP 625+ Rod Bolts.

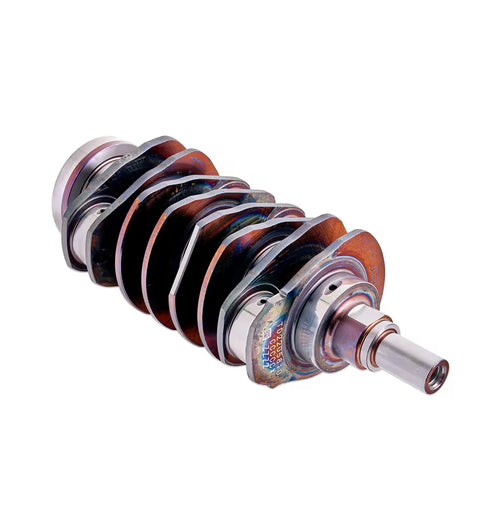

- Crank: FHI FA24 Heat-Treated Crankshaft
- Case / Main Bolts: Standard FHI Subaru case bolts
Benefits
- Proprietary "Fire-Lock" Head gasket system
- Handles up to 1000bhp
- IAG's Standard Short Block Workmanship Warranty covers your short block for 12 months or 12,000 miles
Applications
- 2022-2024 Subaru WRX
What's In The Box?
- 1 - Closed Deck Short Block
- *Fire-Lock Gaskets & Head studs sold separately
References
Warranty
- IAG's Standard Short Block Workmanship Warranty covers your short block for 12 months or 12,000 miles.
- IAG has also teamed up with a selection of IAG Certified Installation Facilities which offer up to a 24 month/24,000 mile workmanship warranty when the engine is purchased, installed, and tuned by that IAG Certified Installer.
