MAPerformance Torque Plate for Honda B-Series Engines
A torque plate is essential during any boring or honing process. When you torque a head down on the block, the pressure from the bolts will cause the cylinder bore to slightly deform.

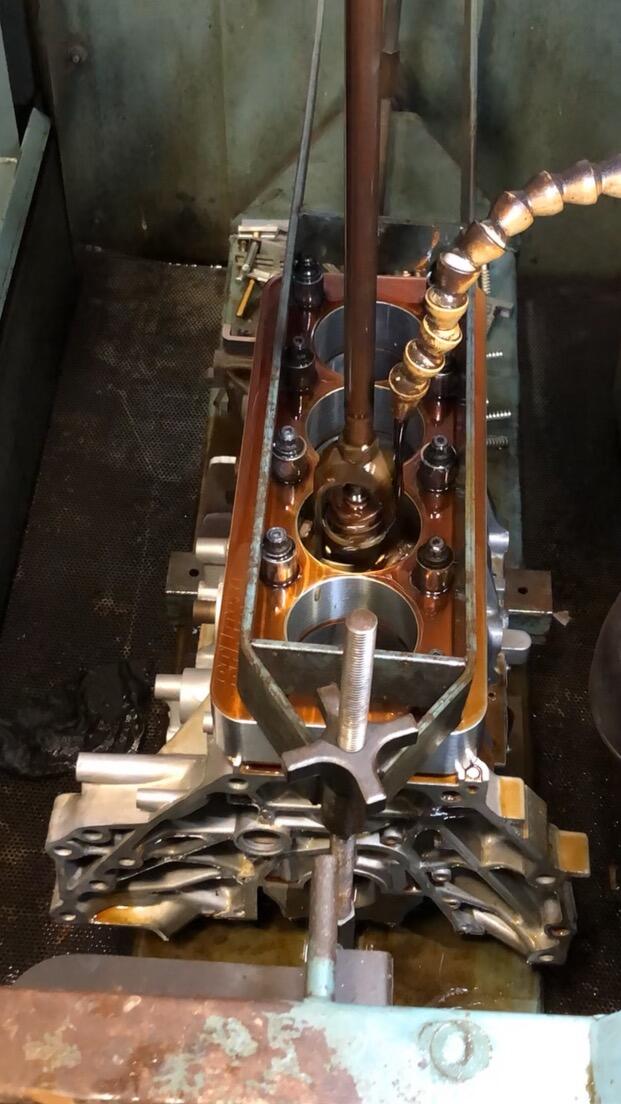

A torque plate takes the place of the head during machining to simulate any distortion that will be caused when the head studs/bolts are tightened. Using a torque plate while boring and/or honing removes any bore irregularities and enables a true cylindrical shape, while allowing the machine operator access to the bores.
Features
- High Quality 2 Thick Billet Aluminum Construction
- Includes Spacers To Give Proper Depth Of Penetration Into The Block
- Total Thickness Including The Spacers Is 2.975
- Works With A Wide Range Of Bore Sizes
- 86mm Maximum Bore Size
- 100% Made Right Here In The USA
Benefits
- Protects Against Distortions Typically Caused By Boring Or Honing Processes
- Enables A True Cylindrical Shape While Allowing Access To The Bores
Please Note: Must use GSR length head studs such as ARP 208-4303. We also recommended tightening the nuts in three equal steps to 80 ft/lbs with ARP ultra-torque lubricant.
Applications
- Honda B-Series Engines
What's In The Box?
- 1 - Honda B-Series Torque Plate
- 10 - Torque Plate Standoffs
1.) All MAPerformance in-house fabricated parts include a Limited Lifetime Warranty for the Original Purchaser. This warranty only applies to the original purchaser and is non-transferrable. If the product fails it would need to be determined by MAPerformance that it is due to manufacturing defects in materials or workmanship. The purchaser will be responsible for sending the product back, after contacting MAPerformance and reporting the failure. Further instructions will be provided by MAPerformance.
2.) This does not cover normal wear and tear. Improper use, modification, or abuse voids this warranty. MAPerformance will not be held responsible for additional costs due to the failure of a product (cost of sale, towing, labor, etc.). Warranty claims must be submitted to MAPerformance for review. Products that are factory coated must adhere to the break in process. Only products coated by MAPerformance will be covered. Products will not be covered if wrapped.
3.) MAPerformance “Limited Lifetime” Warranty does not apply to all products. Kits, packages, bundles, or any non fabricated parts and products by MAPerformance are not warrantied. Engines and engine assemblies are not warrantied. Cast components are warrantied for 3 years from purchase date.

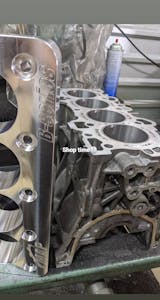

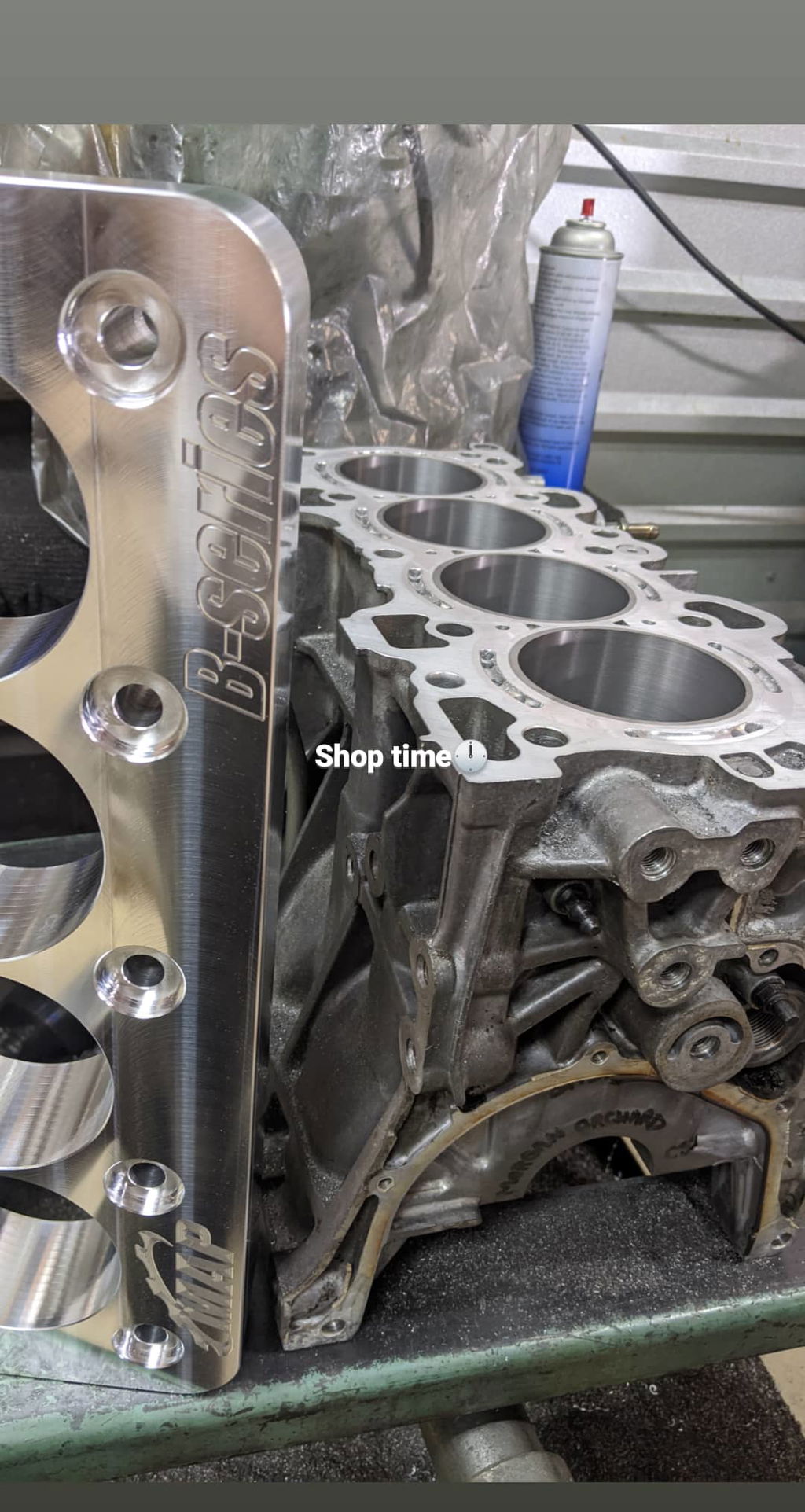

Have a B18C1 with just some surface rust, picked this up to make sure when I hones it everything was good! Well made!!! Blingtastic!! A must have if you plan on block work!

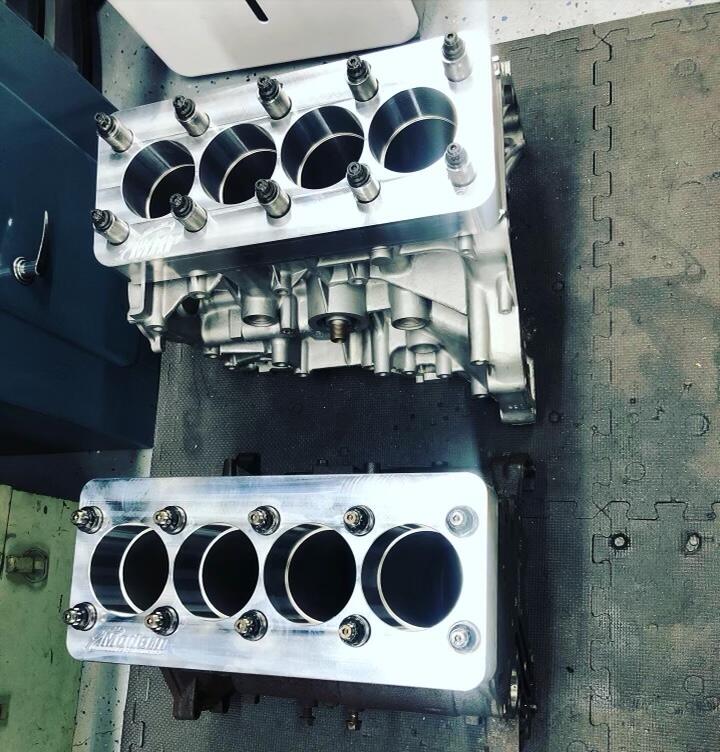

We have multiple Maperformance torque plates here at GspMachining. We will continue to buy more as they design for more engines.

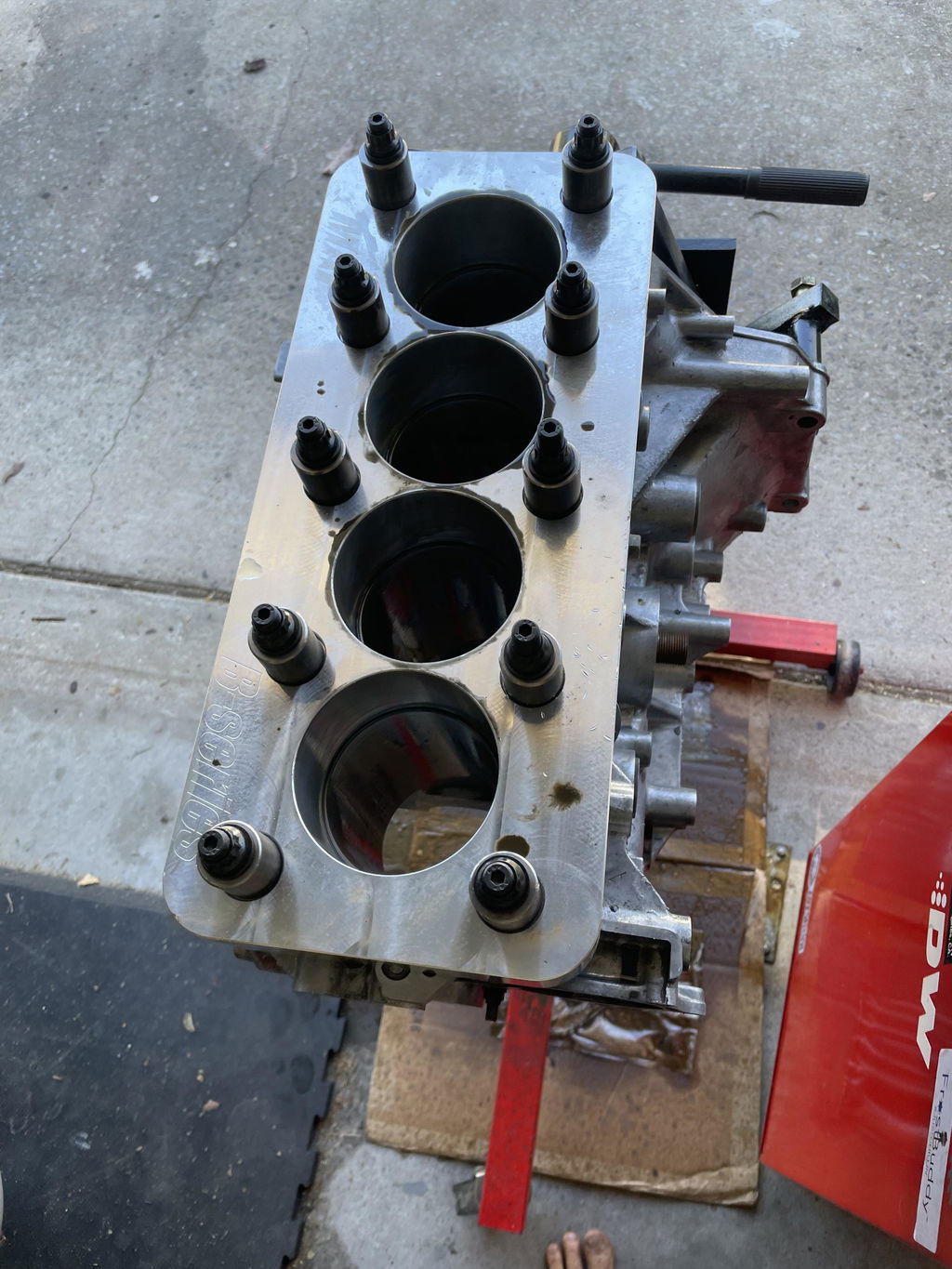

I do a lot of block work on b series now a days and was relieved to find MAP has one for these engines. I have a Subaru one and they both are made excellent, they are easy on the eyes and the stand-offs that are sent with it are great for ARP studs. Fits as it should.
