Garrett Powermax Intercooler Upgrade | 16-21 Honda Civic 1.5T / 17-21 Civic Si (893516-6001)
Garrett2016-2021 Honda Civic 1.5T / 2017-2021 Civic Si Powermax Intercooler Upgrade by Garrett
Garrett Powermax™ direct fit performance charge air cooler for the 2016+ Honda Civic 1.5T/SI has a 90% larger core than stock and helps reduce intake manifold temperatures up to 60 °F (15.6 °C) at heat soak.
CFD optimized end tanks improve air flow distribution through the core. This performance intercooler showed a max increase of up to 17 WHP (12.7 kW) and 14 lb-ft of torque (19 N-m) compared to OE during back to back dyno comparisons in a wind tunnel which generates air velocity that matches vehicle speed.
Features
- 90% larger core than stock
- Installs in stock location
- Cast aluminum end tanks
- Advanced offset fin design
- Bar-and-plate construction
Please Note: This direct fit performance intercooler installs in 3 hours and reuses the stock bolts, hoses, and clamps. Some modification to the shroud required.
Applications
- 2016 - 2021 Honda Civic 1.5T
- 2017 - 2021 Honda Civic Si
Benefits
- Max increase of 17 HP (12.7 kW) and 14lb-ft (19 N-m)
- Up to 60 °F (15.6 °C) reduction in intake temp
What's In The Box?
- 1 - Garrett Powermax Intercooler
Warranty
- Manufacturer Standard Warranty
Customer Reviews

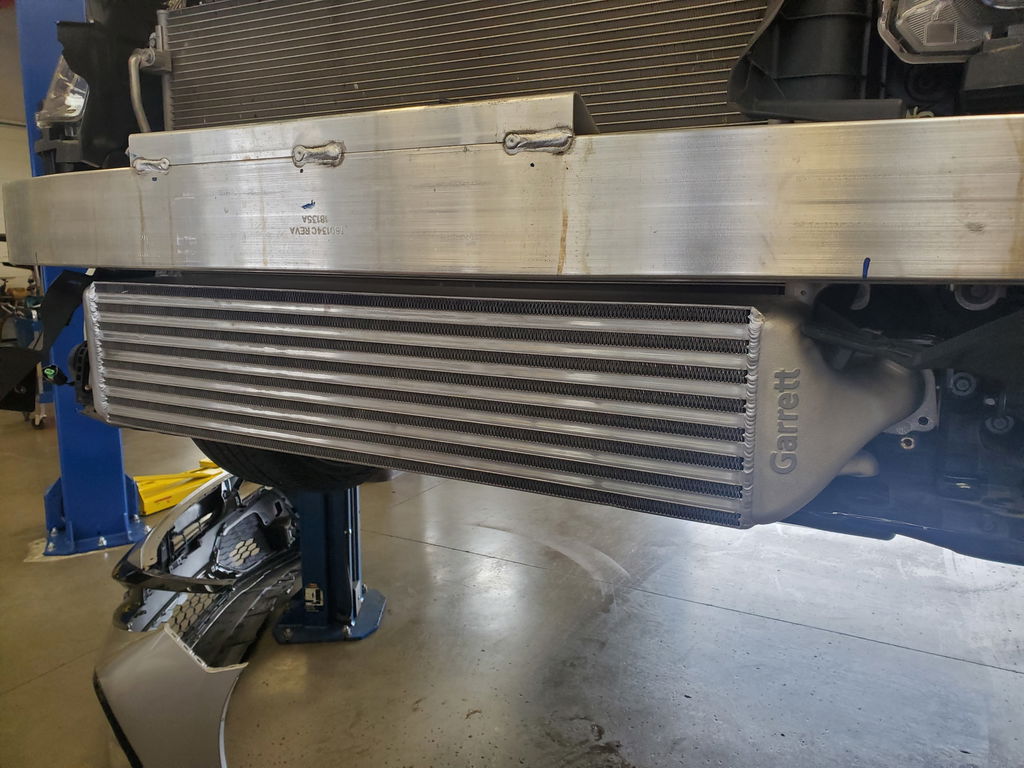

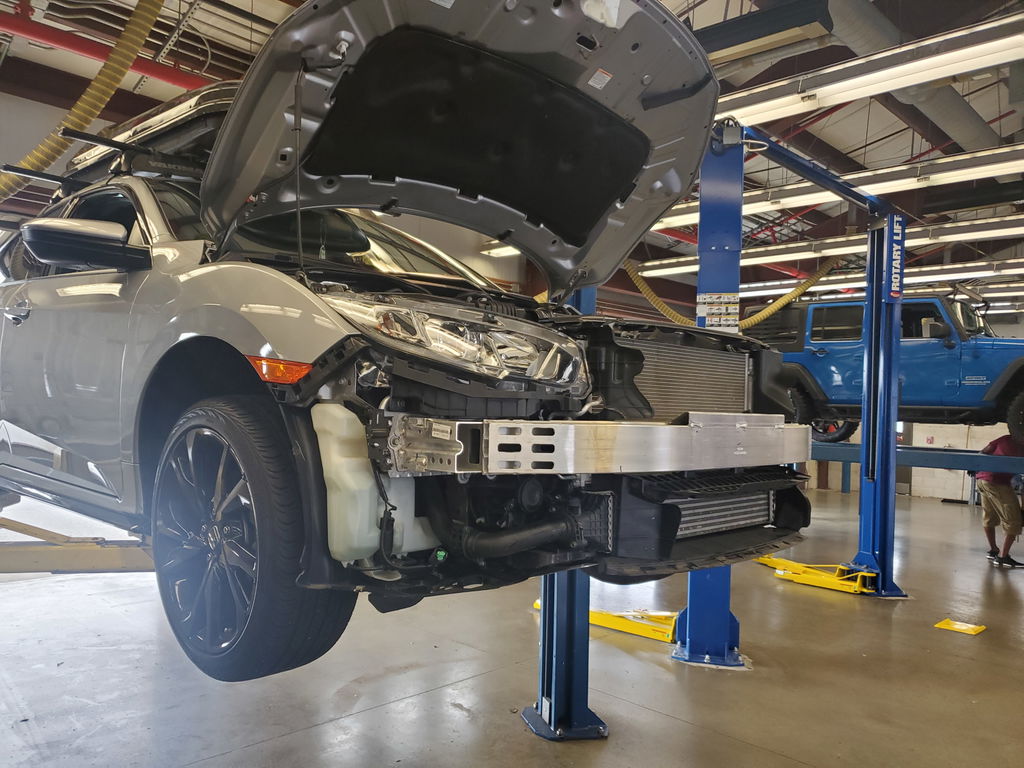

Install was a breeze, direct bolt on. I spent a little extra time cutting and trimming the stock air diverters (you don't need to, you can remove them entirely). Immediately on test drive I notice lower IAT2s at idle. Cruising in 60f to 80f+ temps in city and freeway driving I'll see as much 20 degrees difference in IAT2s than before with the stock intercooler. I am also using a ktuner with a TSP stage 1 tune. With the stock intercooler and the tune, Knock Control would creep as high as .90+ on some 3-4-5 pulls. Now with the Garrett intercooler I've so far only seen as high as .65 in 80f+ outside temps, the car now pulls more consistently until redline. I've noticed no loss in low end power or response.
