    Garrett

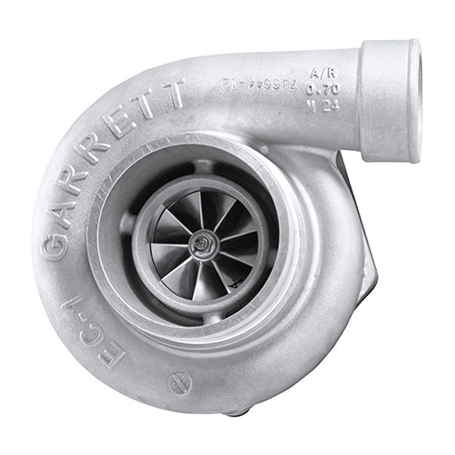

    Garrett GTW3684JB Journal Bearing Turbo

    PART#
    Unbeatable Price Guarantee

    ( Honestly, if you find a better price we'll match it. )

    Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

    Email - sales@maperformance.com

    Phone 1-888-627-3736



    $ 1,109.99

    MAP price match guarantee Unbeatable Price Guarantee

      +1-888-627-3736         Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 22.20 Toward Next Purchase!

    Garrett GTW3684JB (aka GTW6262JB) Journal Bearing Turbo

    GTW Series - Garrett's Performance solution to the popular 6262 size turbo.

    Features

    • Compressor Wheel Inducer: 62.3mm
    • Compressor Wheel Exducer: 84.4mm
    • Compressor Wheel Trim: 71
    • Turbine Wheel Inducer: 71.0mm
    • Turbine Wheel Exducer: 61.9mm
    • Turbine Wheel Trim: 76
    • Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.

    Application Notes

    • NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
    • External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
    • GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.

    Turbine Housing Options

    • T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R) Default / Standard Option
    • T3 Inlet and V-Band, 2.5 inch Outlet (Available in .63 or .82 A/R)
    • T3 Inlet and machined V-band 2.5 inch Outlet (Available in 1.08 A/R)
    • T3 Inlet and welded V-band 3.0 inch Outlet (Available in 1.08 A/R)
    • T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
    • T3 Divided inlet and 3.0 Inch V-Band Outlet (Available in .78 A/R)
    • T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R)
    • T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63 or .82 A/R)
    • T4 Inlet and V-Band, 3.0 inch Outlet (Available in .70 A/R)
    • V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 or .82 A/R). NOTE: V-Band Inlet Clamp & Manifold Flange

    Please Note: This item is not vehicle specific. It is compatible with a wide range of applications and is therefore displayed on our site regardless of your vehicle selection. Please review the specifications and verify compatibility prior to placing your order.

    Applications

    • Universal

    What's in the Box?

    • 1 GTW3684JB Journal Bearing Turbo

    Garrett GTW3684JB (aka GTW6262JB) Journal Bearing Turbo

    GTW Series - Garrett's Performance solution to the popular 6262 size turbo.

    Features

    • Compressor Wheel Inducer: 62.3mm
    • Compressor Wheel Exducer: 84.4mm
    • Compressor Wheel Trim: 71
    • Turbine Wheel Inducer: 71.0mm
    • Turbine Wheel Exducer: 61.9mm
    • Turbine Wheel Trim: 76
    • Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.

    Application Notes

    • NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
    • External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
    • GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.

    Turbine Housing Options

    • T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R) Default / Standard Option
    • T3 Inlet and V-Band, 2.5 inch Outlet (Available in .63 or .82 A/R)
    • T3 Inlet and machined V-band 2.5 inch Outlet (Available in 1.08 A/R)
    • T3 Inlet and welded V-band 3.0 inch Outlet (Available in 1.08 A/R)
    • T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
    • T3 Divided inlet and 3.0 Inch V-Band Outlet (Available in .78 A/R)
    • T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R)
    • T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63 or .82 A/R)
    • T4 Inlet and V-Band, 3.0 inch Outlet (Available in .70 A/R)
    • V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 or .82 A/R). NOTE: V-Band Inlet Clamp & Manifold Flange

    Please Note: This item is not vehicle specific. It is compatible with a wide range of applications and is therefore displayed on our site regardless of your vehicle selection. Please review the specifications and verify compatibility prior to placing your order.

    Applications

    • Universal

    What's in the Box?

    • 1 GTW3684JB Journal Bearing Turbo
