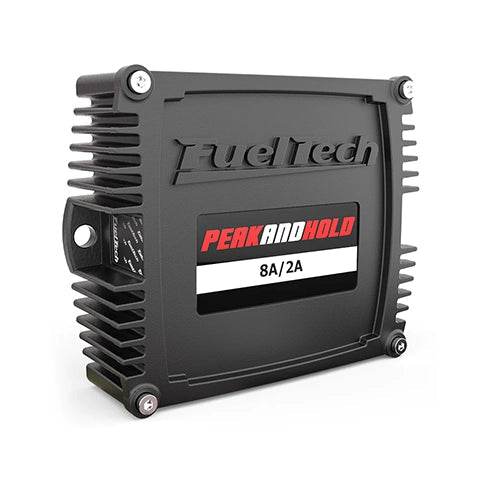

Fueltech Peak & Hold Driver (3010003323/24/25)

Peak & Hold Driver by Fueltech

4-channel low impedance injectors driver unit.

Please Note: Billet Atomizer Injectors - Anything before serial # C300**** should only use the 4A/1A. This only applies to injectors manufactured before Nov. 2012.

Features

• Current control driver for low impedance injectors 4 channels
• Peak and Hold 8A/2A
• Controls up to 4 injectors with impedance below 1.5 ohms
• 8 FT Injectors
• 16 Bosch 160lb/h (1600cc) injectors (4 per channel)
• 8 Siemens low impedance injectors (2 per channel)
• 4 MSD low impedance injectors (2 per channel) (with 2 ohms impedance per injector)
• Peak and Hold 4A/1A
• Controls up to 4 injectors with 1.5 to 3 ohms of impedance
• 8 Bosch 160lb/h (1600cc) injectors (2 per channel)
• 4 Siemens 83lb/h injectors
• 4 MSD injectors (with 2 ohms impedance per injector)
• Peak and Hold 2A/0.5A
• Controls up to 4 injectors with 3 to 7 ohms of impedance
• 4 Bosch 160lb/h (1600cc) injectors

Applications

• Universal

What's In The Box?

• 1 - Peak and Hold Driver
• 1 - Operation and installation guide
• 1 - mounting kit (4 rubber mounts, 4 washers, and 4 ¼” nuts)
• 6ft - Peak and Hold unterminated harness (optional)
• 1 - FuelTech black carbon fiber sticker

References

• Peak and Hold Manual

Warranty

• Fueltech's Standard Limited 1-Year Warranty
