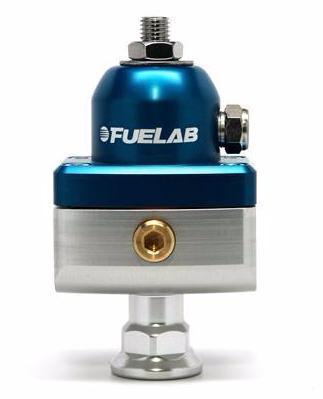

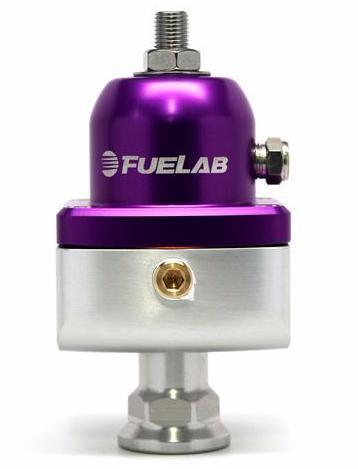

Fuelab 555 Series Blocking Style Fuel Pressure Regulator - 8AN In/Out (55501)

555 Series Blocking Style Fuel Pressure Regulators by Fuelab

FUELAB® 555 Series Fuel Pressure Regulators are true precision instruments designed to regulate fuel.

These units feature an advanced aerospace poppet design for smooth regulating capability. We’ve also incorporated a no-creep soft seat that’s methanol and E85 compatible. Models adjustable from 1 psi up to 65 psi. Perfect for single and multi-stage nitrous applications!

Features

• -8AN inlet and dual -8AN outlet
• A true precision instrument to regulate fuel
• Advanced poppet design for smooth regulating capability
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Methanol compatibility with a No-creep soft seat
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8” NPT gauge port with plug for external pressure gauge
• 1/8” NPT pressure reference port with barbed fitting

Applications

• Universal

What's In The Box?

• 1 - 555 Series Fuel Pressure Regulator
• Necessary Mounting Hardware
• Instructions/Manuals (if applicable)
• Warranty Information

References

• Installation Instructions

Warranty

Fuelab 2-Year Limited Warranty
