Fragola Series 3000 CPFE Lined -12AN Stainless Race Hoses (703012)

Series 3000 CPFE Lined Stainless Steel Race Hoses by Fragola

FPS Series 3000 Race Hose is manufactured to the highest aerospace-quality standard for years of trouble-free service even in the most demanding circumstances.

As a rule of thumb when selecting an A-N hose to replace a given size automotive hose, the dash size is the nominal size in 1/16”. Example: -10, is 10/16” or equivalent 5/8” automotive hose. The A-N hose will be slightly smaller due to the wall thickness of the hose.

Features

• Compatible With -12AN Hose Ends/Fittings
• Two layers of rugged woven stainless steel
• Unique CPFE inner liner is compatible with all hydrocarbon and alcohol based fuels, along with synthetic and natural based lubricants
• Working pressure covers all of the oil, water and fuel systems you may encounter
• Operating range of –40° F to +300° F
• Designed to be used with Series 2000 “Pro-Flow”, Series 3000 “Race”, and Sport Crimp Race Hose Ends.
• Available in 3ft, 6ft, 10ft, 15ft, and 20ft Rolls

PLEASE NOTE

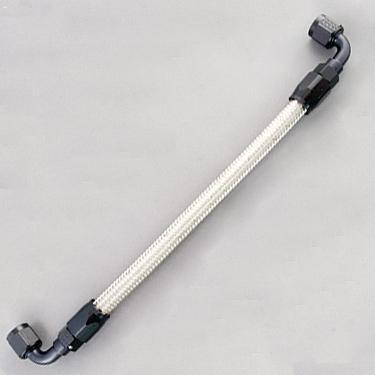

Images provided are generic, and do not necessarily represent the exact product you will receive

Applications

• Universal

Specifications

• AN Size: -12AN
• Working Pressure: 1000 psi
• Vacuum Rating: 27in hg
• Min Bend Radius: 4 1/2in
• Weight Per Foot: 0.28

What's In The Box?

• 1 - Roll of Series 3000 12AN Hose

Warranty

Manufacturer's Warranty
