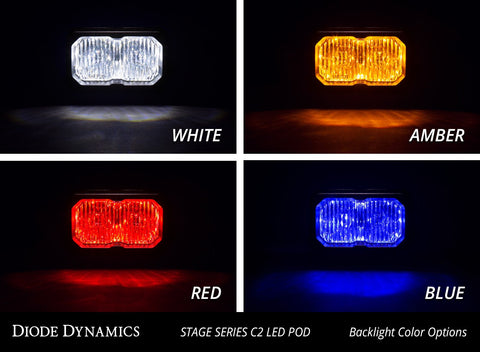

Diode Dynamics DD SSC2 Pod - Pro / Yellow / Combo / Surface / Amber BL / Each (DD6412S)
( We'll refund the difference! )
Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.
Email - firstname.lastname@example.org
Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel, these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving. Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 and SSC2 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 and SSC2 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series Pod is much greater than other LED pods using basic optics or reflectors with a standard outer lens. Functional output. All Stage Series beam pattern options were designed with optical simulation model'g, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! Driving is designed to supplement your high beams, but it's great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds. Combo combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other. Legal. For states that require them, we also offer snap-on covers for your SS3 and SSC2 Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way! White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 or SSC2 Pods. Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information. Backlight Functionality. All SSC2 Ditch Light Kits include a distinctive Amber backlight feature. The SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
- Intensity: 2,898lm (Raw), 1,988lm (Effective)
- Power: 25.6w
- Input: Deutsch DT
- Input Voltage: 9-16V DC
- Current: 2.0A @ 14.4V DC
- Color Rating: 3000K (Yellow)
- Material: Hard Coated Polycarbonate (Lens), Aluminum (Housing), Stainless Steel (Hardware)
- Light Source: Luxeon Z ES
- Compliance: IP67, SAE J575
What's In The Box?
- Light Pod: 1x SSC2 Pro Pod (Surface / Yellow / Combo / Amber BL)
- Warranty: 8 Years
