DeatschWerks DWMicro Low Pressure Lift Pump (9-110-105X)

DWMicro Low Pressure Lift Pump by DeatschWerks

The DWMicro Low Pressure Lift Pump is designed for performance applications where fuel scavenging is needed to feed the primary high flow high pressure pump. Low pressure lift pumps are common in motorsports to feed surge tanks, transfer fuel in a saddle tank, or scavenge corners of a fuel cell. The DWMircro has been engineered specifically for this task through flow targeting, form factor optimization, and efficiency maximization.

Form Factor Optimization - The DWMicro is the smallest and lightest pump offered by DW, making it easier to mount into the deep recesses of saddle tanks and fuel cell bladders. Also, weighing in at less than 250g, this pumps won't harm your corner exit speeds. Lastly, the Barb and AN fluid connection options make it easy to plumb via your method of choice.

Efficiency Maximization - The DWMicro brushes and commutators have been engineered with efficiency in mind shaving current draw down to 3.5 amps while still outputting an industry-leading flow rate. This efficient design builds less heat, which allows the pump to survive extended dry run intervals without damage. The low current draw also allows you to wire multiple pumps on the same circuit so you can have one in each corner of your tank without excessive electrical system demands or additional wiring.

All of the DWMicro pumps are supplied with a filter sock and electrical harness. The pump is compatible with pump gas, race fuel, and E85. The pump is not compatible with e100 or methanol.

Features

• Low pressure transfer for surge tanks, saddle tanks, and fuel cells
• 210LPH open flow at less than 4amps
• Available in barb, -6AN, and -8AN outlets
• Micro form factor = compact + lightweight
• Includes electrical harness and filter sock

Applications

• Universal

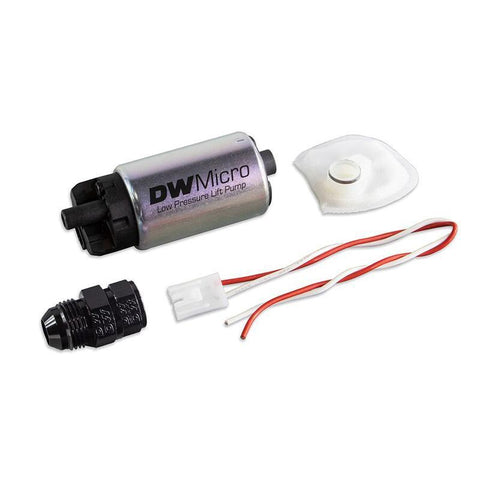

What's In The Box?

• 1 - DWMicro Low Pressure Lift Pump
• 1 - Filter Sock
• 1 - Electrical Harness
• OPTIONAL - 6AN or 8AN Outlet Fitting

Warranty

• All DeatschWerks products are warrantied for a period of 36 months.
