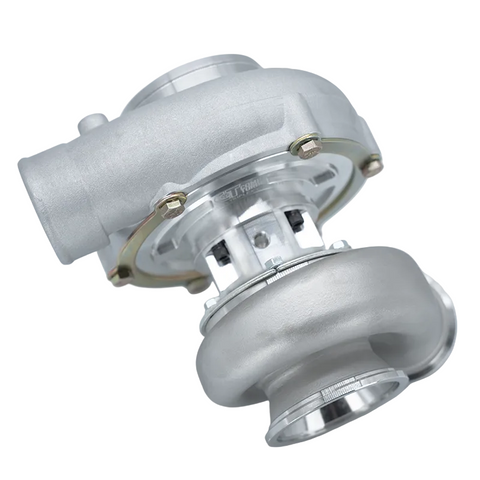

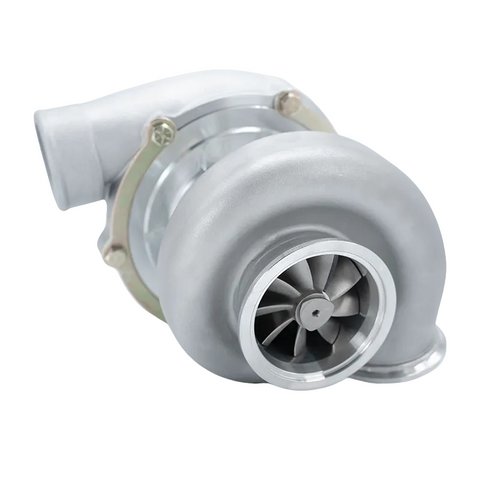

Comp Turbo CT4RX-6467 Triplex Ceramic Ball Bearing Oil Lubricated Turbo - 1100HP (426467-2)

CT4RX-6467 1100HP Triplex Ceramic Ball Bearing Turbocharger by Comp Turbo

The CT4RX-6467, rated at 1100 HP, is a turbocharger featuring a triplex ceramic ball bearing system dependent on engine oil lubrication. It is specifically designed to deliver superior efficiency, durability, and performance. With advanced precision ceramic ball bearings, this turbocharger enhances spool response, reduces friction, and increases longevity compared to traditional journal bearings. The CT4RX-6467 turbocharger is the ideal choice for enthusiasts seeking reliable, high-speed boost performance with minimal lag.

Features

• Patented Triplex Ceramic Ball Bearing System: Ensures ultra-smooth operation, faster spool times, and improved durability.
• Engineered for High-Performance Applications, Suitable for Both Street and Track Use

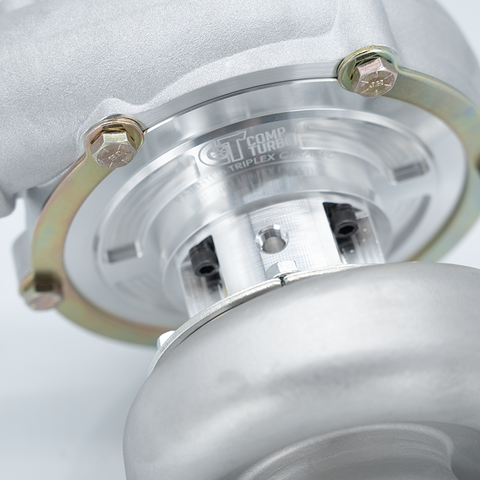

• Lightweight Billet Aluminum Center Section
• CTRX Ultra Slim Hub Compressor Wheel 64MM
• High Flow 9 Bladed Turbine Wheel 67MM
• Standard Rotation Configuration
• Titanium Bullet Nose Nut
• Available in T3 / T4 / V-Band Inlet Turbine Housings
• Fully Rebuildable & Upgradeable
• Weight: 13 LBS
• Satin Compressor Housing Finish
• Standard Turbine Housing Finish (if a Turbine Housing is chosen)
• Standard Anti-Surge
• Billet Cartridge Finish

Specifications

• Min-Max HP: 500-1100HP
• Min-Max Displacement: 2.0L-4.0L
• Inlet: 4.0"
• Outlet: 2.5"
• A/R: .70
• Pressure Port: 1/8 NPT
• Compressor Inducer: 64mm
• Compressor Major: 93mm
• Oil Feed: 1/8 NPT Female
• Oil Drain: 1/2 NPT Female
• Turbine Inducer: 74mm
• Turbine Exducer: 67mm

Applications

• Universal

What's In The Box?

• 1 - CT4RX-6467 Triplex Ceramic Ball Bearing Turbo

Warranty

• 2-Year Warranty covering defects in materials and workmanship
