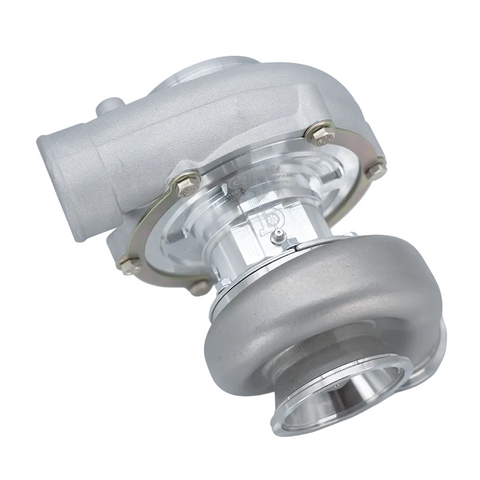

CT4RX-6467 1100HP Triplex Ceramic Ball Bearing Turbocharger by Comp Turbo
The CT4RX 6467 is a cutting edge 1100HP Triplex Ceramic Ball Bearing Oil-Less Water-cooled turbocharger designed to deliver high performance, reliability, and versatility. By eliminating traditional oil lines, this advanced unit reduces complexity while maintaining water cooling, ensuring optimal thermal management under extreme conditions.
Features
- Patented Triplex Ceramic Ball Bearing System: Ensures ultra-smooth operation, faster spool times, and improved durability.
- Engineered for High-Performance Applications, Suitable for Both Street and Track Use
- Lightweight Billet Aluminum Center Section
- CTRX Ultra Slim Hub 7+7 Compressor Wheel 64MM
- High Flow 9 Bladed Turbine Wheel 67MM
- Standard Rotation Configuration
- Titanium Bullet Nose Nut
- Available in T3 / T4 / V-Band Inlet Turbine Housings
- Fully Rebuildable & Upgradeable
- Water-Cooled Bearing Housing 3/8 NPT In/Out Female Ports for Engine Water-Cooling Connection
- Maintenance Grease Fitting
- Horizontal & Vertical Installation
- Weight: 13 LBS
- Satin Compressor Housing Finish
- Standard Turbine Housing Finish (if a Turbine Housing is chosen)
- Standard Anti-Surge
- Billet Cartridge Finish
Specifications
-
Min-Max HP: 500-1100HP
-
Min-Max Displacement: 2.0L-4.0L
-
Inlet: 4.0"
-
Outlet: 2.5"
-
A/R: .70
-
Pressure Port: 1/8 NPT
-
Compressor Inducer: 64mm
-
Compressor Major: 93mm
-
Oil Feed: 1/8 NPT Female
-
Oil Drain: 1/2 NPT Female
-
Turbine Inducer: 74mm
-
Turbine Exducer: 67mm
