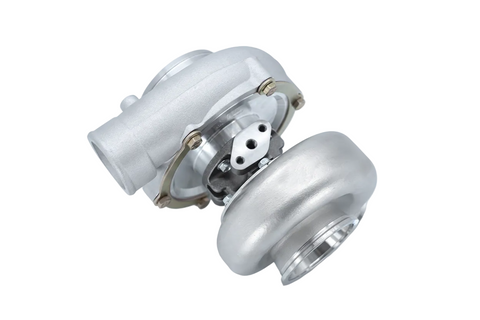

Comp Turbo CT4R-6875 Dynamic 360° Journal Bearing Turbo - 1150HP (426875-1)

CT4R-6875 1150HP Dynamic Journal Bearing Turbocharger by Comp Turbo

The CT4R-6875 Dynamic 360° Journal Bearing Turbocharger designed to support up to 1150HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street, track, and drag racing builds.

Features

• 360° Journal Bearing System- Durable and cost-effective performance
• Engineered for High-Performance Applications, Suitable for Both Street and Track Use

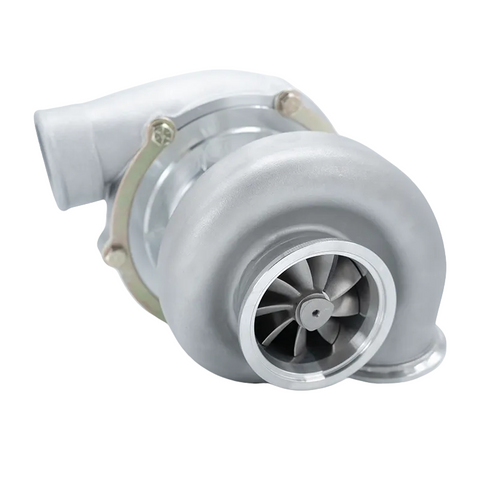

• CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel - 68MM
• Inconel 713C High Flow 10 Bladed Turbine Wheel - 75MM
• Titanium Bullet Nose Nut
• Fully Rebuildable & Upgradeable
• Weight: 18 LBS
• Satin Compressor Housing Finish
• Standard Turbine Housing Finish (if a Turbine Housing is chosen)
• Standard Anti-Surge
• Billet Cartridge Finish

Specifications

• Min-Max HP: 550-1150HP
• Min-Max Displacement: 2.0L-4.0L
• Inlet: 4.0"
• Outlet: 2.5"
• A/R: .70
• Pressure Port: 1/8 NPT
• Compressor Inducer: 68mm
• Compressor Major: 93mm
• Oil Feed: 1/8 NPT Female
• Oil Drain Flange Threads: 8MM x 1.25
• Turbine Inducer: 76mm
• Turbine Exducer: 75mm

Applications

• Universal

What's In The Box?

• 1 - CT4R-6875 Journal Bearing Turbo

Warranty

• 2-Year Warranty covering defects in materials and workmanship
