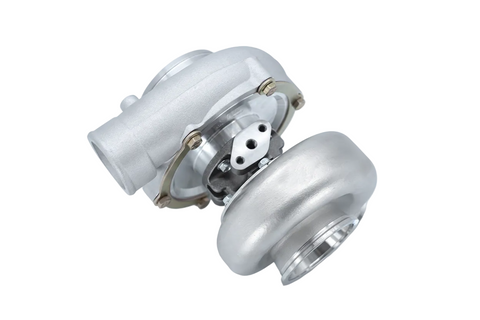

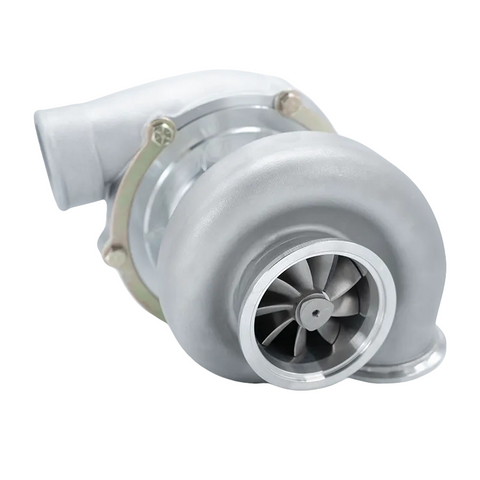

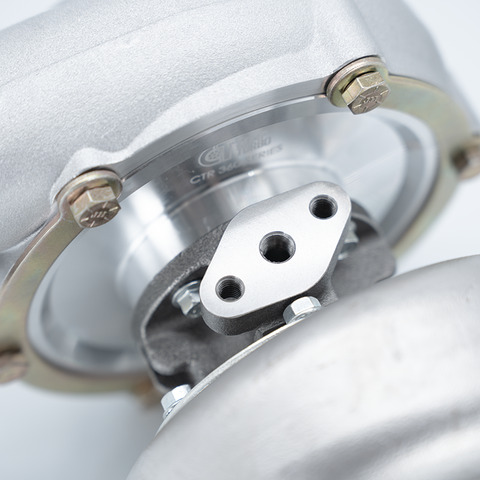

CT4R-6871 1100HP Dynamic Journal Bearing Turbocharger by Comp Turbo
The CT4R-6871 Dynamic 360° Journal Bearing Turbocharger designed to support up to 1100HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street and track.
Features
- 360° Journal Bearing System- Durable and cost-effective performance
- Engineered for High-Performance Applications, Suitable for Both Street and Track Use
- CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel - 68MM
- Inconel 713C High Flow 10 Bladed Turbine Wheel - 71MM
- Titanium Bullet Nose Nut
- Fully Rebuildable & Upgradeable
- Weight: 16 LBS
- Satin Compressor Housing Finish
- Standard Turbine Housing Finish (if a Turbine Housing is chosen)
- Standard Anti-Surge
- Billet Cartridge Finish
Specifications
-
Min-Max HP: 550-1100HP
-
Min-Max Displacement: 2.0L-4.0L
-
Inlet: 4.0"
-
Outlet: 2.5"
-
A/R: .70
-
Pressure Port: 1/8 NPT
-
Compressor Inducer: 68mm
-
Compressor Major: 93mm
-
Oil Feed: 1/8 NPT Female
-
Oil Drain Flange Threads: 8MM x 1.25
-
Turbine Inducer: 76mm
-
Turbine Exducer: 71mm
