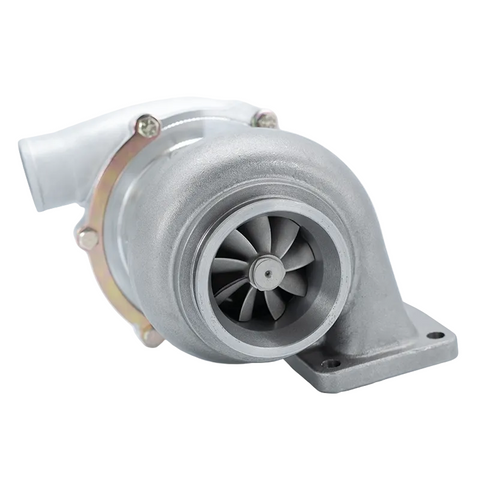

CT3R-6467 925HP Dynamic Journal Bearing Turbocharger by Comp Turbo
The CT3R-6467 360° Journal Bearing Turbocharger designed to support up to 925 HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street, track, and drag racing builds.
Features
- 360° Journal Bearing System- Durable and cost-effective performance
- Engineered for High-Performance Applications, Suitable for Both Street and Track Use
- CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel - 62MM
- Inconel 713C High Flow 10 Bladed Turbine Wheel - 62MM
- Titanium Bullet Nose Nut
- Fully Rebuildable & Upgradeable
- Weight: 15 LBS
- Satin Compressor Housing Finish
- Standard Turbine Housing Finish (if a Turbine Housing is chosen)
- Standard Anti-Surge
- Billet Cartridge Finish
Specifications
-
Min-Max HP: 550-925HP
-
Min-Max Displacement: 2.0L-4.0L
-
Inlet: 3.0"
-
Outlet: 2.0"
-
A/R: .60
-
Compressor Inducer: 64mm
-
Compressor Major: 82mm
-
Oil Feed: 1/8 NPT Female
-
Oil Drain Flange Threads: 8MM x 1.25
-
Turbine Inducer: 74mm
-
Turbine Exducer: 67mm
