    Borg Warner

    BorgWarner 9180 EFR Ball Bearing T4 Turbo

    PART#
    Find a lower price!?

    ( We'll refund the difference! )

    Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

    Email - sales@maperformance.com

    Phone 1-888-627-3736



    $ 2,519.69   $ 3,149.62
    Instant Savings of % ()

    MAP Fast, Secure, Shipping MAP Special Order
      +1-888-627-3736
    Free delivery by , to your door when ordered within hrs and mins
    Earn 2% Back Earn $ 50.39
    Toward Next Purchase!

    Fits Your
    MAP Loyalty: Earn $ 50.39 Toward Next Purchase!

    9180 T4 Turbocharger (600-1000HP) By Borgwarner

    EFR 9180 is the biggest, baddest, highest flowing turbo in the EFR family. Capable of a remarkable 94lb/min airflow and stable at very high boost levels, the 91mm OD compressor measures 67.7mm inducer and is a 7 blade FMW compressor.

    This turbo will redefine what 67mm turbos are capable of. After receiving requests from many high power enthusiasts and drag racers restrained to a 67mm inducer, there was a clear need for 1000hp capable turbos that still provide good spool and response. Using the high flowing 1.05 a/r Twinscroll T4 turbine housing is the most efficient way to run this as a single turbocharger. If twin turbos will be run, the .83 a/r or 1.05 a/r can be used, depending on manifolds and space constraints.

    Ideal for use as single turbo applications in the 600-1000hp per turbo range, or as very high power twin turbo applications >1000-1700+hp. Available with .83 a/r undivided T3 internal WG or 1.05 a/r divided twin scroll T4 housings (external WG). Ceramic Ball Bearing only, water cooling optional (recommended)

    Features

    • Gamma-Ti turbine wheel
    • Extended Tip Technology
    • Boost Control Solenoid Valve (BCSV)
    • Forged Milled Compressor Wheel (FMW)
    • Integrated Compressor Recirculation Valve (CRV)
    • Dual ceramic ball bearing assembly with metal cage
    • Compressor cover with speed sensor mounting provisions

    Relevant Part Numbers

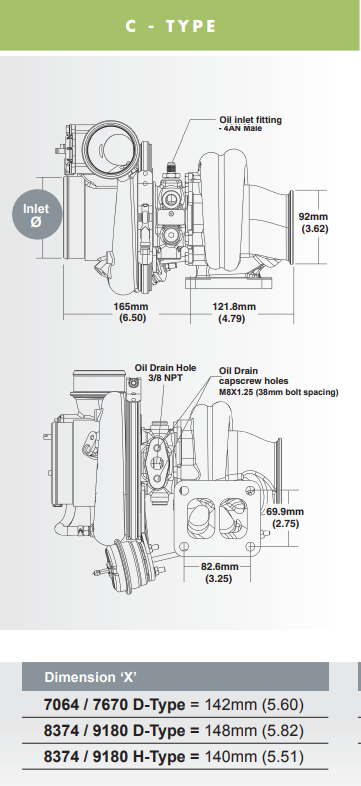

    Specifications

    • 600-1000HP

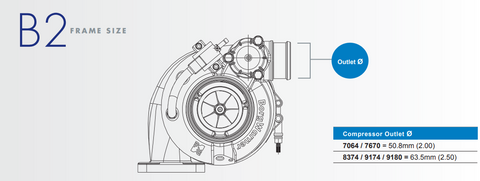

    • B2 Turbo Frame Size
    • 68mm Comp. Wheel Inducer Dia.
    • 91mm Comp. Wheel O.D.
    • 80mm Turbine Wheel O.D.
    • Straight Compressor Outlet

    What's in the Box?

    • 1 Complete Turbocharger

    Warranty

    • 1-Year Manufacturer's Warranty

    9180 T4 Turbocharger (600-1000HP) By Borgwarner

    EFR 9180 is the biggest, baddest, highest flowing turbo in the EFR family. Capable of a remarkable 94lb/min airflow and stable at very high boost levels, the 91mm OD compressor measures 67.7mm inducer and is a 7 blade FMW compressor.

    This turbo will redefine what 67mm turbos are capable of. After receiving requests from many high power enthusiasts and drag racers restrained to a 67mm inducer, there was a clear need for 1000hp capable turbos that still provide good spool and response. Using the high flowing 1.05 a/r Twinscroll T4 turbine housing is the most efficient way to run this as a single turbocharger. If twin turbos will be run, the .83 a/r or 1.05 a/r can be used, depending on manifolds and space constraints.

    Ideal for use as single turbo applications in the 600-1000hp per turbo range, or as very high power twin turbo applications >1000-1700+hp. Available with .83 a/r undivided T3 internal WG or 1.05 a/r divided twin scroll T4 housings (external WG). Ceramic Ball Bearing only, water cooling optional (recommended)

    Features

    • Gamma-Ti turbine wheel
    • Extended Tip Technology
    • Boost Control Solenoid Valve (BCSV)
    • Forged Milled Compressor Wheel (FMW)
    • Integrated Compressor Recirculation Valve (CRV)
    • Dual ceramic ball bearing assembly with metal cage
    • Compressor cover with speed sensor mounting provisions

    Relevant Part Numbers

    Specifications

    • 600-1000HP
    • B2 Turbo Frame Size
    • 68mm Comp. Wheel Inducer Dia.
    • 91mm Comp. Wheel O.D.
    • 80mm Turbine Wheel O.D.
    • Straight Compressor Outlet

    What's in the Box?

    • 1 Complete Turbocharger

    Warranty

    • 1-Year Manufacturer's Warranty
