Beat-Sonic Surface Mount Front View Camera (BCAM11)

Surface Mount Front View Camera by Beat-Sonic

Universal Surface Mount Front View Camera by Beat-Sonic®. Discretely add a wide angle (fish eye / 160 degrees) front view camera that blends in with your front grill. Focused on innovation and quality, Beat-Sonic is sure to enhance your driving experience.

Features

• Power Supply: DC12v
• Consumption Current: 55 ± 5 mA
• Image Direction: Orthographic
• Parking Guidelines : None
• Image Sensor: ¼ inch color CMOS sensor
• Pixels: 640 x 480 - 31 megapixels
• Size: 20（W）ｘ23（H）ｘ25.5（D）mm
• Minimum Illumination: 1 Lux
• Angle of view: Horizontal: 160 degrees. Vertical: 120 degrees
• Video output: NTSC (RCA pin) 1Vpp (75Ω)
• Operating Temperature Range: -10℃ to 50℃
• Water proof structure: IP67
• Weight: 40g
• S / N: 48 dB or more

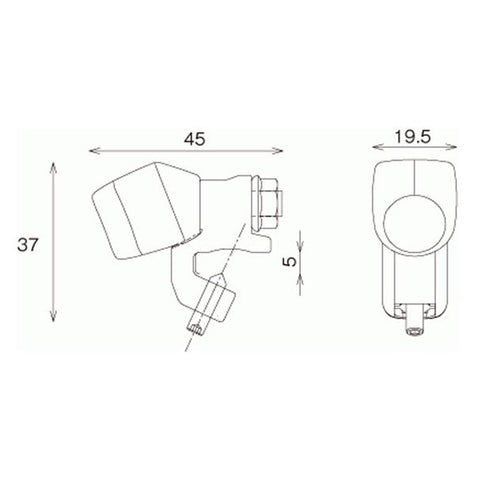

• External Dimensions: 19.5 (W) x 37 (H) x 45 (D) mm

Benefits

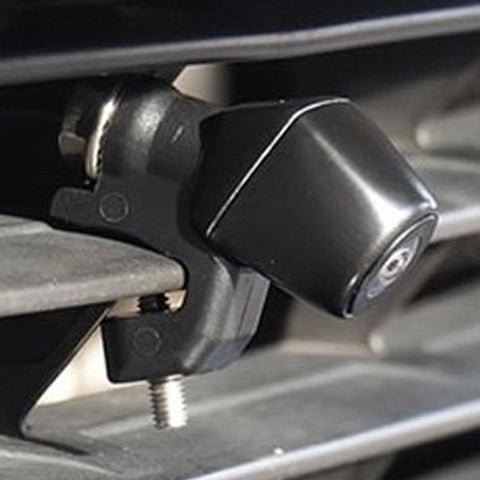

• Easy installation that screws directly on to the front grill.
• An automatic electronic iris that works at a great range to cover visibility during the day and night.
• Wide-angled lens (viewing angle is 160 degrees) to ensure a wider visibility
• Black color to blend in with your front grill for the stealth look.
• Waterproof construction for durability.
• Extra long Video RCA Cable Harness for a longer reach

Applications

• Universal

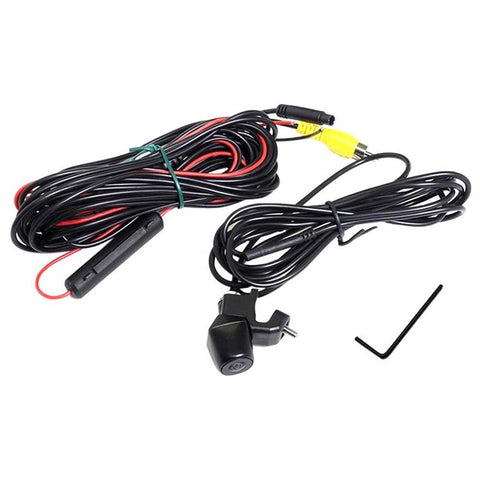

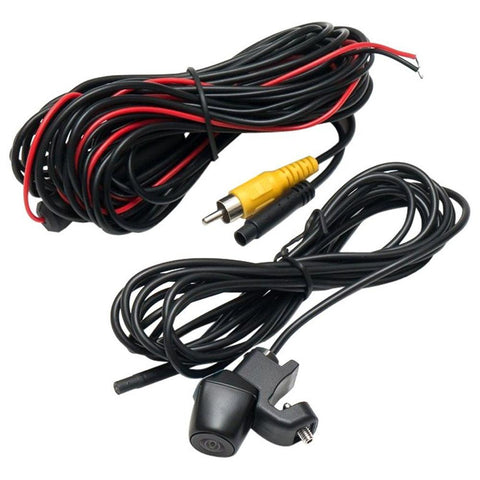

What's In The Box?

• 1 - Camera Body
• 1 - Power supply image output cable
• 1 - M6 nut
• 1 - Metal washer
• 1 - Spring washer
• Fiber washers

Warranty

• Beat-Sonic products come with a limited warranty covering manufacturer's defects. Products that shows signs of abuse and improper installation and usage will not be covered under our policy.
