2014-2019 Toyota Front Camera Interface by Beat-Sonic
By pressing the selector button, the front or the rear camera is displayed for the duration pre-set using the inbuilt programmable timer. The timer is programmable for 5 sec, 10 sec, 15 sec, 20 sec or timer disable (i.e. push on / push off).
In addition, the front camera can be programmed to automatically display at speeds less than 9mph to assist when front parking.
Features
- Voltage: DC11V ~ 15V
- Current consumption: 50mA of less
- External dimensions: 40 x 25 x 57mm
- Weight: 55g
Benefits
- Ability to switch between front camera, rear camera and factory Toyota screen
- Ideal for avoiding front obstacles especially for vehicles with front spoilers and/or lowered suspension
- Makes front parking in tight places a breeze
- Ability to view reverse camera at any time while driving
- Press selector switch at any time to display front camera

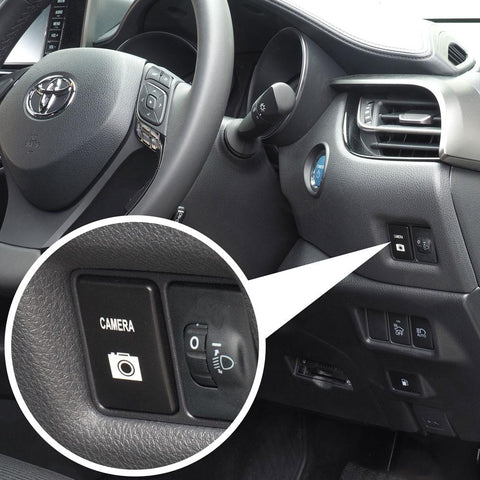

- OE design switch with white LED fits perfectly into vacant switch blank

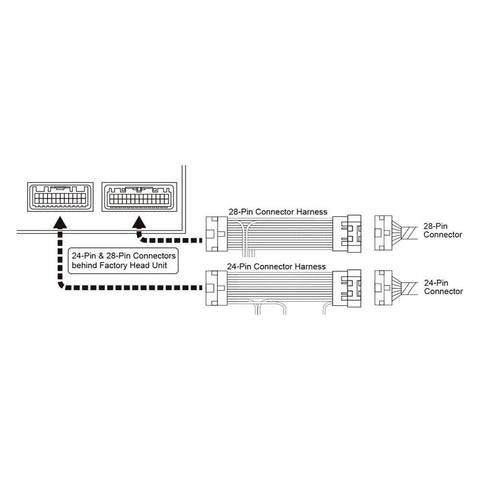

- Plug and Play installation with no modification to the factory harness.(does not include Front Camera)
Please Note: For factory navigation equipped models, Cursor indicating the direction will be temporarily interrupted while the CS6EP is engaged. Current position will be re-calibrated and the cursor will indicate where the vehicle is once the CS6EP is turned off by pressing the supplied button.
Applications
- 2014-2019 Toyota 4Runner
- 2017-2018 Toyota 86
- 2015-2018 Toyota Avalon
- 2014-2017 Toyota Camry
- 2014-2018 Toyota Corolla
- 2014-2019 Toyota Highlander (not compatible with the panoramic view equipped model)
- 2016-2019 Toyota Prius (with 7" screen + navigation)
- 2016-2018 Toyota Prius c
- 2016-2017 Toyota Prius v
- 2017-2020 Toyota Prius Prime (with 7" screen + navigation)
- 2014-2018 Toyota RAV4
- 2014-2019 Toyota Sequoia
- 2014-2019 Toyota Tacoma
- 2014-2019 Toyota Tundra
- 2014-2018 Toyota Yaris
What's In The Box?
- 1 - Front Camera Selector
References
Warranty
- Beat-Sonic products come with a limited warranty covering manufacturer's defects. Products that shows signs of abuse and improper installation and usage will not be covered under our policy.
