AMS Performance Carbon Intakes | 2015-2018 BMW M3 and 2015-2020 BMW M4 (AMS.39.08.0001-1)

2015-2018 BMW M3 and 2015-2020 BMW M4 Carbon Intakes by AMS Performance

Our AMS Performance BMW M3/M4 S55 Carbon Intakes were designed to draw a higher volume of cold air into the stock turbochargers. With this intake installed, the factory plastic airboxes and plastic intake tubes are replaced with our motorsport-grade carbon fiber components and dry media air filters. The AMS Performance BMW M3/M4 S55 Carbon Intakes are a vast improvement over the stock intake system and our extensive Snailworks© Engineering Team R&D testing has shown a massive 27% increase in airflow efficiency! By letting the turbos ingest all the cold air they need, our intake system boosts power capability exactly where you want it. In addition, it allows you to hear your twin turbos spool up which is something any enthusiast can appreciate. The AMS Performance BMW M3/M4 S55 Carbon Intakes are simply the best-engineered and best-performing cold air intake system available for your S55 engine-equipped M3 or M4.

AMS Performance is an engineering company first. We have built our decades-long reputation as a leading motorsports aftermarket component manufacturer by creating the highest-performing parts through a focused engineering approach to design. This engineering process is what makes the S55 Carbon Intakes the best-designed intake system on the market. Our Snailworks© Engineering Team has spent countless R&D hours painstakingly designing the AMS Performance BMW M3/M4 S55 Carbon Intakes via Solidworks© Computer-Aided Design (CAD) software as well as conducted rigorous on-track testing to validate their design.

Our Snailworks© Engineering Team knows that heat is the biggest power-robbing factor that plagues other inferior intake system designs. That is why they designed the air box to seal out blistering engine bay temperatures. They then took advantage of the M3 and M4’s existing intake ducting that funnels fresh air into the intake box and designed a pair of carbon replacement ducts, each with a full air scoop placed directly behind the front grille, producing a ram-air-like effect as the intakes are high-pressureure fresh air.

You can expect an easy install without cutting, trimming, or taking off any additional components with basic hand tools. Couple that wi a purpose-built, reusable synthetic high-flow dry media filter and s, and you’ll no longer have to purchase cheap factory paper filters down the road. The “dry media” filter means just that, no more messy oiling of your filter. Just one more reason why our intake system is the best option on the market. The washable AMS S55 intake system synthetic media filters were designed and manufactured specifically to fit the high-performance automotive application, and the filter size and configuration were fine-tuned to ensure that it will still provide all the necessary air for any S55-powered BMW, including upgraded turbo cars, without any substantial restriction or compromise in filter efficiency.

Our Snailworks© Engineering Team designed the fully enclosed dry air filters to draw in a larger volume of air into their hand-laid carbon fiber-constructed cold airboxes. These airboxes needed a unique closure mechanism which is why we have devised an elegant neodymium magnet system to secure the lid to each airbox. These magnetized lids allow for quick, easy, and toolless access to the intake filters for inspection or cleaning.

Focusing on component design and materials selection is crucial during product development, and this is why we have utilized top-tier materials as the foundation of the AMS Performance BMW M3/M4 S55 Carbon Intakes. Our team selected a motorsports-grade carbon fiber that is both hand-laid and high-temperature resistant. Lower quality carbon products on the market use the typical gloss clear coated carbon fiber which is prone to discoloration and cracking. Our AMS Performance BMW M3/M4 S55 Carbon Intakes use 3k twill weave carbon fiber capable of sustaining a 240C temperature threshold while maintaining structural integrity and aesthetic appearance with no worry of fading or yellowing over time. The mounting hardware components are manufactured from billet 6061 T6 aluminum, which is then precision CNC machined for a perfect fit — every time. Because we are using billet, our team was able to integrate these OEM-style fitment features which allow the intake boxes to lock into place, just like BMW intended.

The OEM manufacturer spends a lot of time reducing turbo noise at the expense of horsepower. By allowing the turbo to ingest all the cold air it needs, the AMS Performance BMW M3/M4 S55 Carbon Intakes boost power capability significantly. The use of carbon fiber composites allowed AMS’ Snailworks© Engineers greater design freedom to enhance performance and aesthetics for your BMW. The new carbon fiber front ducts were specifically designed to gather exclusively cold air and pipe it directly to the airboxes, resulting in lower intake air temperatures entering the engine.

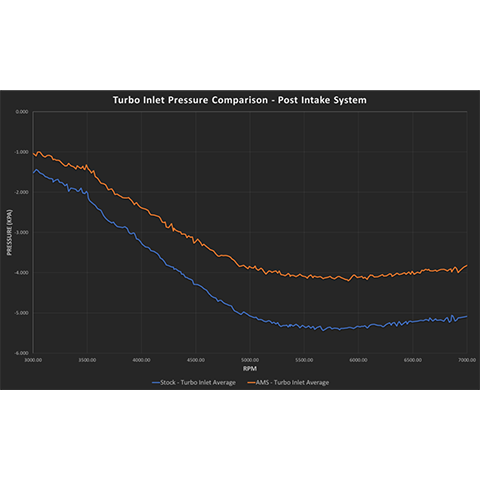

The use of carbon fiber allows for organically shaped airboxes and tubes to allow for perfect fitment, with no sign of restriction. Featuring gradual bend radii and pipe size transitions, air flows unimpeded to the turbo compressor inlets. To quantify this, our AMS Snailworks© Engineers ran flow tests to determine the pressure differential between the OEM and our S55 intake system which showed an astounding 27% reduction in restriction right in the middle of the RPM range.

Features

• OEM style fitment for secure mounting
• Designed with CAD software for ultimate performance and fitment
• Motorsports grade, hand-laid carbon fiber

Benefits

• No yellowing or fading over time
• Dry media filter means easy cleaning and no oil
• Enclosed carbon fiber air boxes completely seal out hot engine bay air
• Neodymium magnetic box lids for easy filter access
• Full intake ducts to front grill to draw in only cold air
• Plug and play installation and no permanent modification
• 27% reduction in airflow restriction at 4500RPM

Applications

• 2015-2018 BMW M3
• 2015-2020 BMW M4

What's In The Box?

• 1 - Carbon Intake Kit

Warranty

• AMS Performance's Standard Limited Warranty
