AMS Front Mount Intercooler | 2022-2026 Subaru WRX (AMS.50.09.0010-1)

2022+ Subaru WRX Front Mount Intercooler by AMS Performance

The AMS Performance 2022+ Subaru WRX Front Mount Intercooler provides exceptional heat transfer efficiency due to its superior engineering, materials, and construction. Utilizing an industry-leading, highly efficient 4″ thick AMS intercooler core as standard, which was chosen based on our decades of motorsports experience spent optimizing turbocharged applications.

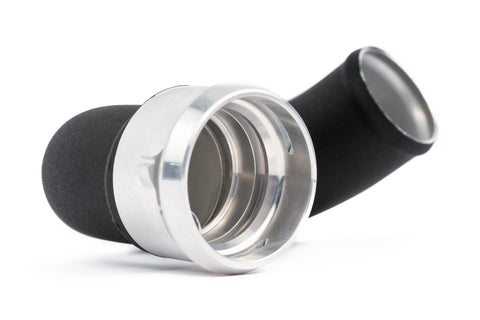

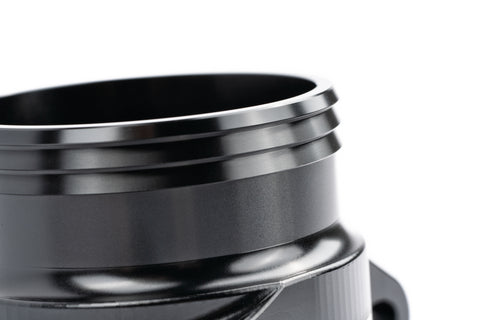

This kit comes complete with massive 3″ intercooler piping, custom silicone couplers with ID matched connections, as well as CNC billet connection flanges, and high quality hose clamps and hardware to ensure a precise fit. In addition, we relocated a number of OEM features to retain functionality while improving performance. Tow hook mount integrated into FMIC mounting bracket to retain use of the tow hook, ambient air temperature sensor relocated for improved temperature readings, and windshield washer fluid filler neck relocated for easier installation and improved functionality.

With a 347% increase in core volume compared to the factory top mount, higher volume aluminum end tanks, and TIG welded by hand in the USA, the 2022+ WRX Front Mount Intercooler core sets the standard in thermal management for the FA24 engine. Our AMS 2022+ Subaru WRX Front Mount Intercooler kit will minimize intake temperatures while maximizing the power output of your WRX, regardless of conditions.

Features

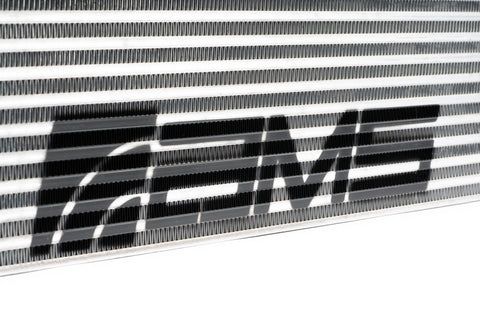

• One of the Largest Intercooler Cores on the Market as Standard (26″ x 12″ x 4″)
• Massive 3″ Mandrel Bent Aluminum Piping to Support High Horsepower Builds
• Giant 26″ Wide Bar and Plate Core to Completely Fill the Front Bumper Opening
• Relocated Windshield Washer Fluid Filler Neck for Perfect Charge Pipe Fitment
• Integrated Tow Hook Mount to Retain Use of Tow Hook
• Ambient Air Temperature Sensor Relocated for Improved Readings
• All AMS Intercoolers are Pressure Tested Before Boxing

Benefits

• Staggering 347% Increase in Core Volume Compared to Stock Top Mount
• 54.4°F Reduction in Charge Air Temp Compared to OEM TMIC

Applications

• 2022 - 2026 Subaru WRX

What's In The Box?

• 1 - Front Mount Intercooler
• Pipes, Couplers & Clamps
• Installation Hardware

Resources

• Installation Instructions

Warranty

• AMS Performance 12-Month / 12,000 Mile Limited Warranty
