    AMS Alpha Performance 90mm Catted Midpipe | 2009+ Nissan R35 GT-R

    PART#
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 1,742.07   $ 1,795.95
    Cyber Week Savings % ()

    Built To Order Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 34.84 Toward Next Purchase!

    AMS Alpha 90mm Midpipe with Race Cats

    The Alpha R35 GT-R 90mm Catted Midpipe is one of the largest midpipes available on the market. Where most systems implement two 76mm (3”) pipes that merge into a single 76mm (3”) primary pipe, we offer a larger 90mm (3.5”) primary pipe to optimize exhaust gas flow. This reduces turbulence and unwanted backpressure – freeing up horsepower and improving turbo response.

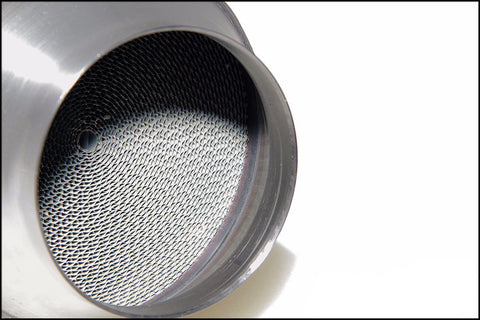

    So that your R35 GT-R remains compliant with state and local emissions regulations, our midpipe incorporates a set of high flow catalytic converters that are EPA certified in 49 states. These GESI Ultra High Output (UHO) stainless steel cats provide the highest level of emissions control with no notable loss in horsepower when compared to a catless midpipe.

    With an Alpha 90mm Catted Midpipe installed, your GT-R will maintain the power of a straight pipe setup without the hassle of having to switch back to your stock midpipe in the event you are called for emissions testing. Our cats are designed with racing in mind and can handle the most severe of driving conditions. Unlike standard cores used by many of our competitors, these will withstand up to 1500 degrees F and will not rattle loose after repeated heat cycles and heavy driving.

    Like all products we manufacture, the Alpha R35 GT-R 90mm Catted Midpipe offers you unrivaled fit, finish and performance. Each piece is constructed of high quality stainless steel and hand TIG welded by one of our AMS master fabricators. In addition to a superior set of catalytic converters, we also use the highest quality stainless steel flex sections and 3/8” thick connecting flanges to complete an overall design that will last the lifetime of your GT-R.

    Features

    • Large 90mm (3.5") primary section for optimal exhaust flow
    • GESI Ultra high output race catalytic converters – ideal for forced induction
    • EPA Certified high output catalytic converters for use on OBDII vehicles (1996 and newer) – Certified in 49 states!
    • Unique end-cap design catalytic converters locks substrate in so it can not rattle around
    • 100% stainless steel construction. No mild steel flanges or hangers
    • Precision TIG welded by AMS master fabricators
    • Twin 76mm (3") stainless steel flex sections with smooth bore liners
    • All 3/8" flanged connections. No band clamps or slip fits to come loose
    • Stock-like fitment and no ground clearance issues
    • Bolts up to the stock downpipes and muffler back exhaust or most aftermarket systems
    • Includes gaskets and hardware
    • Unrivaled fit and finish

    Applications

    • 2009+ Nissan R35 GT-R
    • Fits all USDM Models, European and JDM models

    Specifications

    • 100% 304 atainless steel with .049" wall thickness
    • Twin 76mm (3") inlets Y into 90mm (3.5") primary pipe
    • Twin 76mm (3") stainless steel flex sections
    • Twin 76mm (3") stainless steel catalytic converters
    • 3/8" thick stainless steel flanges

    What's In The Box?

    • 90mm midpipe
    • Gaskets and hardware

    Warranty

    • Manufacturer Standard Warranty

      AMS Alpha 90mm Midpipe with Race Cats

      The Alpha R35 GT-R 90mm Catted Midpipe is one of the largest midpipes available on the market. Where most systems implement two 76mm (3”) pipes that merge into a single 76mm (3”) primary pipe, we offer a larger 90mm (3.5”) primary pipe to optimize exhaust gas flow. This reduces turbulence and unwanted backpressure – freeing up horsepower and improving turbo response.

      So that your R35 GT-R remains compliant with state and local emissions regulations, our midpipe incorporates a set of high flow catalytic converters that are EPA certified in 49 states. These GESI Ultra High Output (UHO) stainless steel cats provide the highest level of emissions control with no notable loss in horsepower when compared to a catless midpipe.

      With an Alpha 90mm Catted Midpipe installed, your GT-R will maintain the power of a straight pipe setup without the hassle of having to switch back to your stock midpipe in the event you are called for emissions testing. Our cats are designed with racing in mind and can handle the most severe of driving conditions. Unlike standard cores used by many of our competitors, these will withstand up to 1500 degrees F and will not rattle loose after repeated heat cycles and heavy driving.

      Like all products we manufacture, the Alpha R35 GT-R 90mm Catted Midpipe offers you unrivaled fit, finish and performance. Each piece is constructed of high quality stainless steel and hand TIG welded by one of our AMS master fabricators. In addition to a superior set of catalytic converters, we also use the highest quality stainless steel flex sections and 3/8” thick connecting flanges to complete an overall design that will last the lifetime of your GT-R.

      Features

      • Large 90mm (3.5") primary section for optimal exhaust flow
      • GESI Ultra high output race catalytic converters – ideal for forced induction
      • EPA Certified high output catalytic converters for use on OBDII vehicles (1996 and newer) – Certified in 49 states!
      • Unique end-cap design catalytic converters locks substrate in so it can not rattle around
      • 100% stainless steel construction. No mild steel flanges or hangers
      • Precision TIG welded by AMS master fabricators
      • Twin 76mm (3") stainless steel flex sections with smooth bore liners
      • All 3/8" flanged connections. No band clamps or slip fits to come loose
      • Stock-like fitment and no ground clearance issues
      • Bolts up to the stock downpipes and muffler back exhaust or most aftermarket systems
      • Includes gaskets and hardware
      • Unrivaled fit and finish

      Applications

      • 2009+ Nissan R35 GT-R
      • Fits all USDM Models, European and JDM models

      Specifications

      • 100% 304 atainless steel with .049" wall thickness
      • Twin 76mm (3") inlets Y into 90mm (3.5") primary pipe
      • Twin 76mm (3") stainless steel flex sections
      • Twin 76mm (3") stainless steel catalytic converters
      • 3/8" thick stainless steel flanges

      What's In The Box?

      • 90mm midpipe
      • Gaskets and hardware

      Warranty

      • Manufacturer Standard Warranty
