AEM Performance Electronics X-Series Digital GPS Speedometer

PART#
Find a lower price!?

( We'll refund the difference! )

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Email - sales@maperformance.com

Phone 1-888-627-3736



$ 151.19   $ 167.99
Instant Savings of % ()

Delivered by , to your door when ordered within hrs and mins

Fits Your
MAP Loyalty: Earn $ 3.02 Toward Next Purchase!

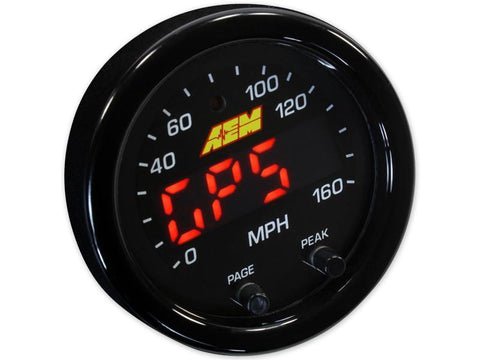

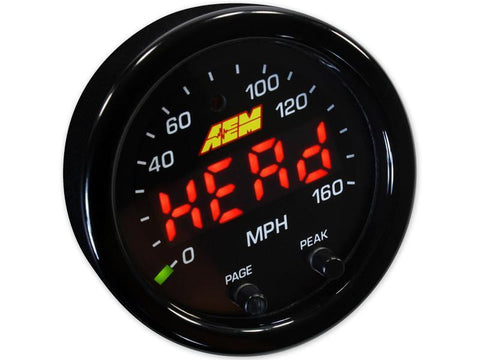

X-Series Digital GPS Speedometer by AEM Performance Electronics

EM’s X-Series GPS Speedometer display ground speed, course and altitude via an included 10Hz GPS receiver. Users can integrate the X-Series GPS Speedo into an Infinity ECU, Series 2 EMS or EMS-4 to add track mapping, and an included Vehicle Speed signal can be outputted to an existing speedometer to eliminate the need for a vehicle speed sensor.

A 10Hz GPS receiver receives speed, heading and altitude data from multiple satellites at 10 samples/second providing excellent accuracy and reliability. The GPS receiver includes a magnet and adhesive bottom for exterior mounting on the vehicle. The X-Series GPS Speedometer Gauge has a bright four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200.” This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

Features

  • Displays ground speed, heading and altitude!
  • Integrate with the Infinity ECU, Series 2 or EMS-4 via AEMnet CAN bus to add track mapping!
  • Transmit vehicle speed to an existing speedometer without needing a VSS sensor
  • User selectable units of measurement (US or Metric)
  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825in overall gauge depth and 0.200in cup depth – mount them virtually anywhere!
  • 24 green outer LEDs for quick reference to engine parameter
  • Optional silver bezel with white faceplate accessory kit available (sold separately)
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connector provides secure connection
  • Compatible with 16v vehicle systems

Applications

  • Universal

What's In The Box?

  • 1 - AEM X-Series GPS Speedometer Gauge /w Black Bezel + Faceplate
  • All Necessary Electrical Components
  • All Necessary Mounting Hardware

Warranty

  • AEM Limited Warranty

Installation Instructions

X-Series Digital GPS Speedometer by AEM Performance Electronics

EM’s X-Series GPS Speedometer display ground speed, course and altitude via an included 10Hz GPS receiver. Users can integrate the X-Series GPS Speedo into an Infinity ECU, Series 2 EMS or EMS-4 to add track mapping, and an included Vehicle Speed signal can be outputted to an existing speedometer to eliminate the need for a vehicle speed sensor.

A 10Hz GPS receiver receives speed, heading and altitude data from multiple satellites at 10 samples/second providing excellent accuracy and reliability. The GPS receiver includes a magnet and adhesive bottom for exterior mounting on the vehicle. The X-Series GPS Speedometer Gauge has a bright four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200.” This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

Features

  • Displays ground speed, heading and altitude!
  • Integrate with the Infinity ECU, Series 2 or EMS-4 via AEMnet CAN bus to add track mapping!
  • Transmit vehicle speed to an existing speedometer without needing a VSS sensor
  • User selectable units of measurement (US or Metric)
  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825in overall gauge depth and 0.200in cup depth – mount them virtually anywhere!
  • 24 green outer LEDs for quick reference to engine parameter
  • Optional silver bezel with white faceplate accessory kit available (sold separately)
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connector provides secure connection
  • Compatible with 16v vehicle systems

Applications

  • Universal

What's In The Box?

  • 1 - AEM X-Series GPS Speedometer Gauge /w Black Bezel + Faceplate
  • All Necessary Electrical Components
  • All Necessary Mounting Hardware

Warranty

  • AEM Limited Warranty

Installation Instructions
