AEM CD-7 Carbon Flat Panel Digital Dash Display (30-570XF)

CD-7 Carbon Flat Panel Digital Dash Displays by AEM Electronics

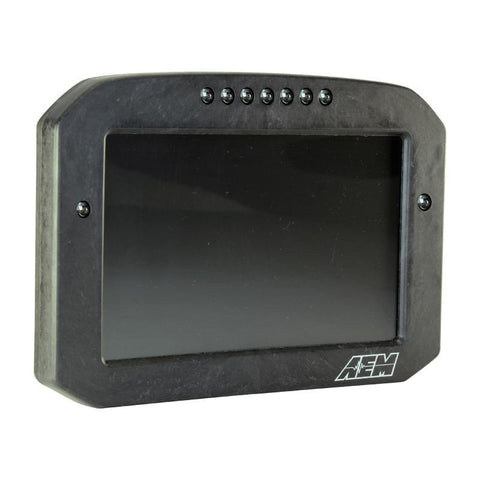

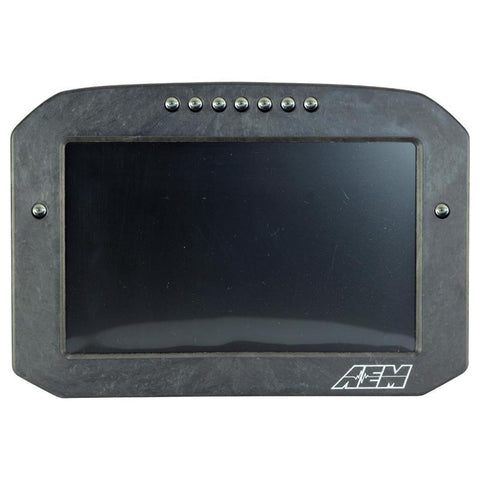

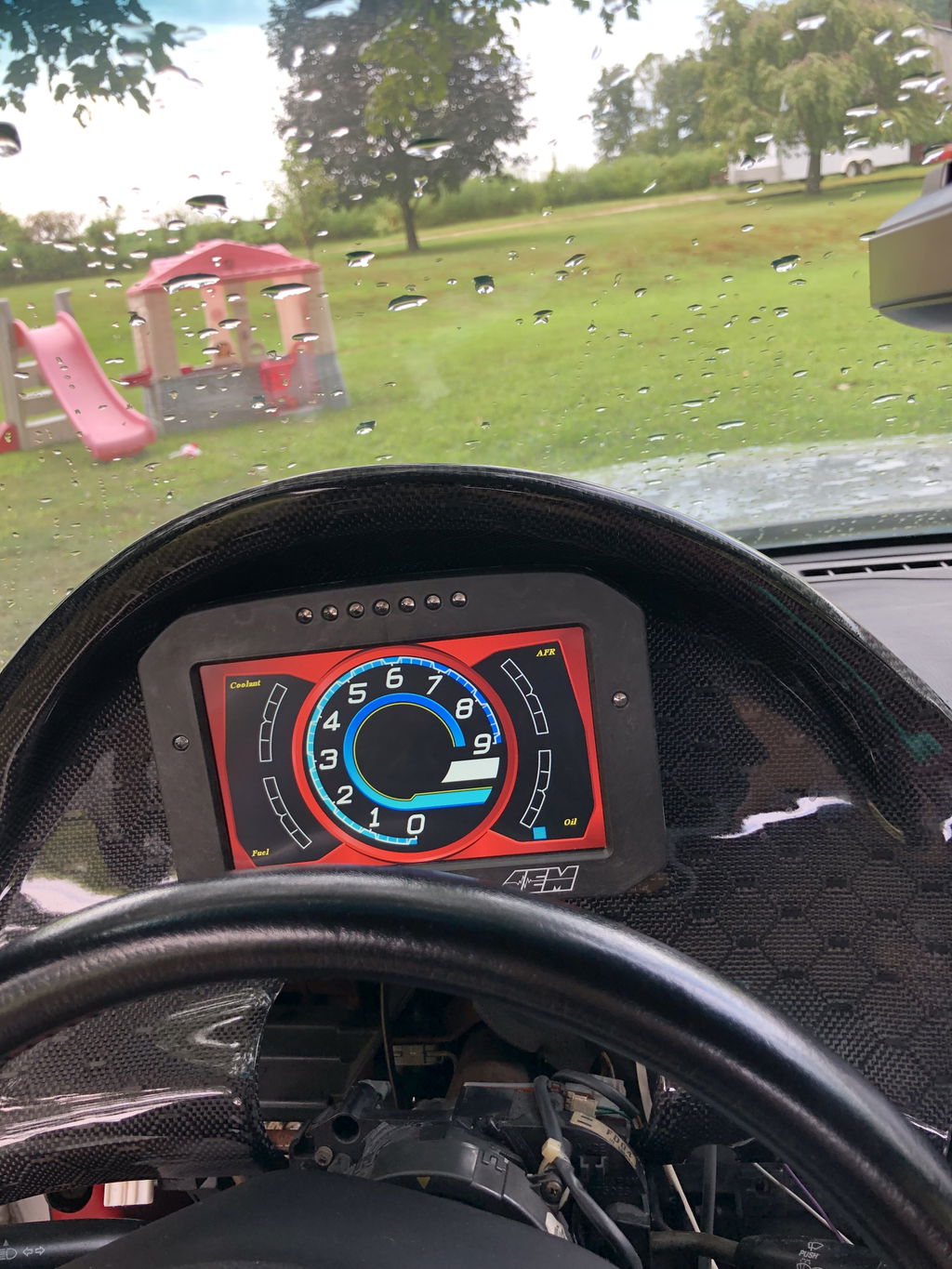

CD-7 Carbon Flat Panel Digital Dash Displays have a compact enclosure that makes them perfect for flush mount installation or in-dash installations with tight tolerances. They include all of the robust features found in the original CD-7 Carbon Dash, but do not have buttons or an LED shade hood built into the enclosure.

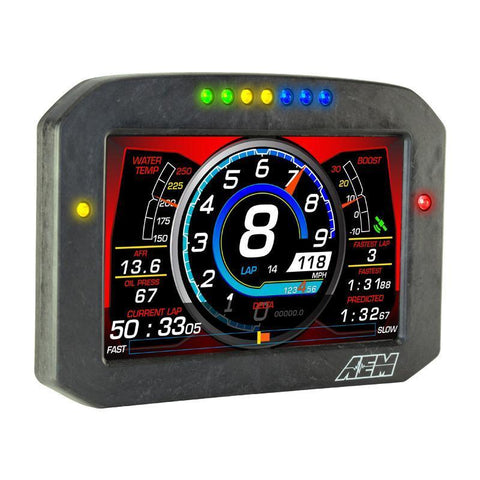

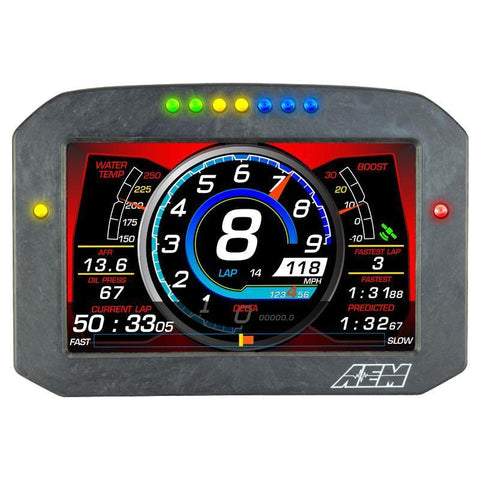

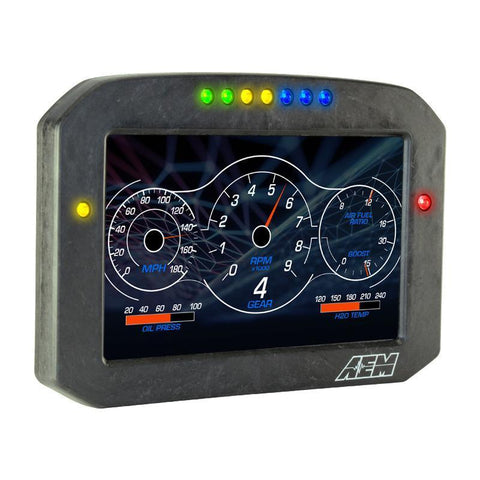

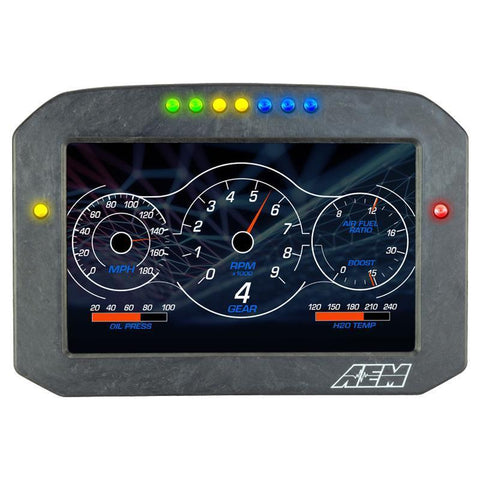

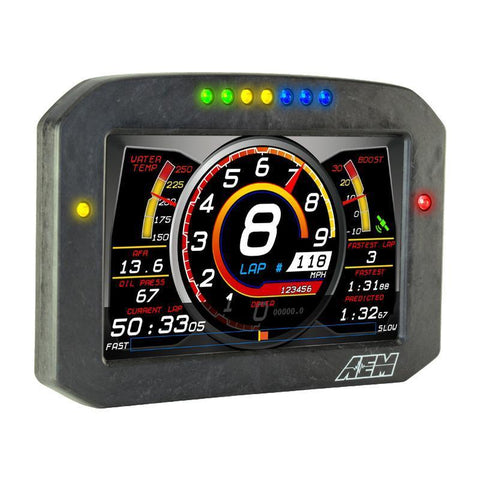

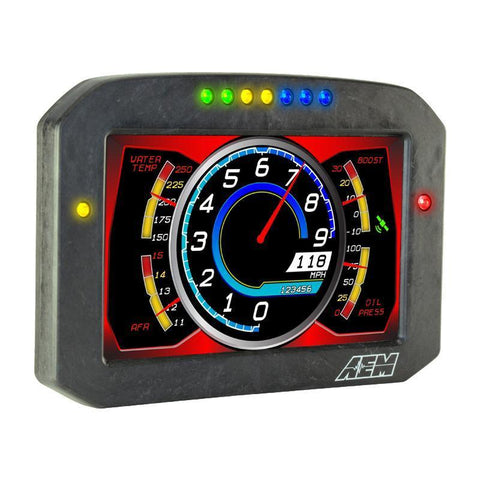

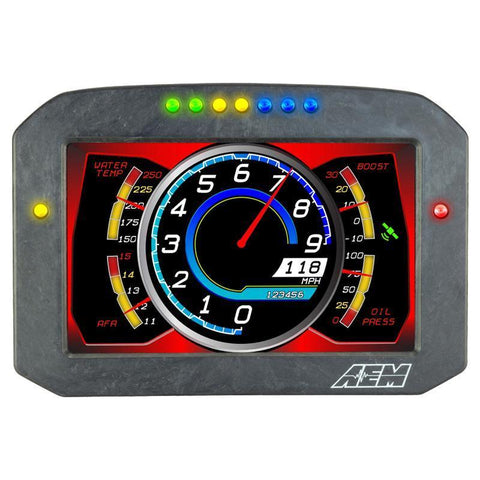

CD-7 Carbon Flat Panel Digital Dash Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable.

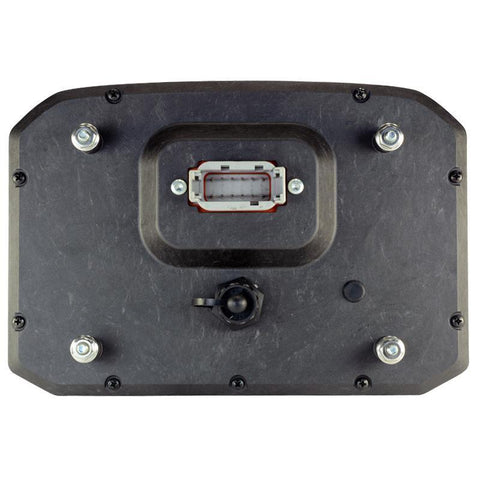

KEEP IT SIMPLE OR GO HARDCORE: CD-7 Carbon Flat Panel Dashes can simplify the update of an instrument cluster or ease the instrumentation configuration of a new vehicle build. Since the CD-7 Carbon Flat Panel Display only requires a single cable for power, ground and receiving CAN data, the wiring goes from complex to a simple one plug connection.

Want to go hardcore? Add additional sensor data with our 22 Channel CAN Sensor Module, create custom layouts, integrate track mapping and data logging for driver coaching, see predictive and actual lap times and set user-defined prioritized alarms - it's all possible with the CD-7 Carbon Flat Panel Dash.

VIEW AND LOG DATA FROM OVER 250 CAN-ENABLED DEVICES: CD Carbon Dashes receive channels from CAN bus inputs and do not require special modules to read AEM and/or non-AEM CAN signals. They communicate with 45 AEM devices, are in-house tested to work with 159 non-AEM devices and we have DBC CAN files for 52 more non-AEM devices.

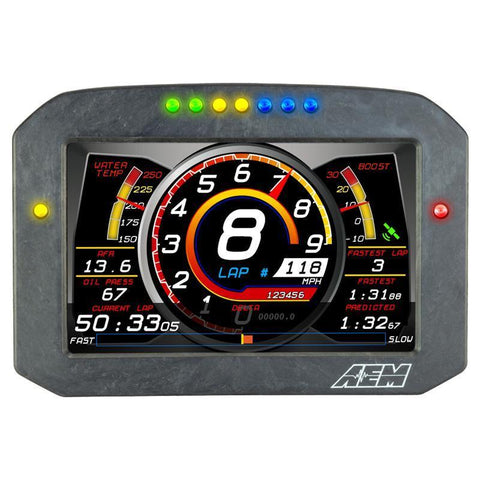

LOGGING, TRACK MAPPING, SPEEDO and ODO CAPABILITIES: CD Carbon Dashes receive channels from CAN bus inputs and do not require special modules to read AEM and/or non-AEM CAN signals. They communicate with 45 AEM devices, are in-house tested to work with 159 non-AEM devices and we have DBC CAN files for 52 more non-AEM devices.

CAN-BASED ACCELEROMETER & GYROSCOPE FOR G-LOADS, ROLL, PITCH AND YAW: Racers looking for acceleration forces and vehicle dynamics channels in addition to GPS can purchase a Vehicle Dynamics Module (PN 30-2206). The VDM includes a GPS receiver and antenna, a 3-axis gyroscope for viewing and recording roll, pitch and yaw, and a 3-axis accelerometer for collecting longitudinal, lateral and vertical acceleration.

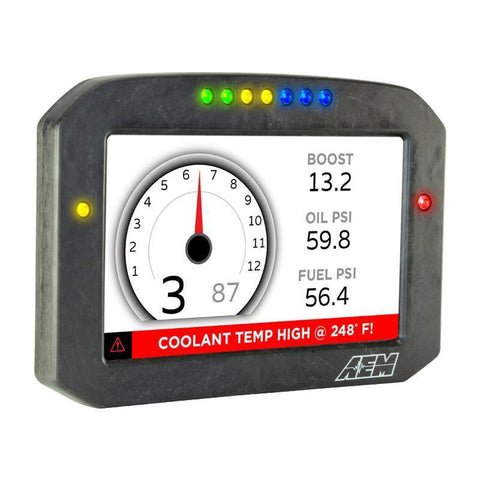

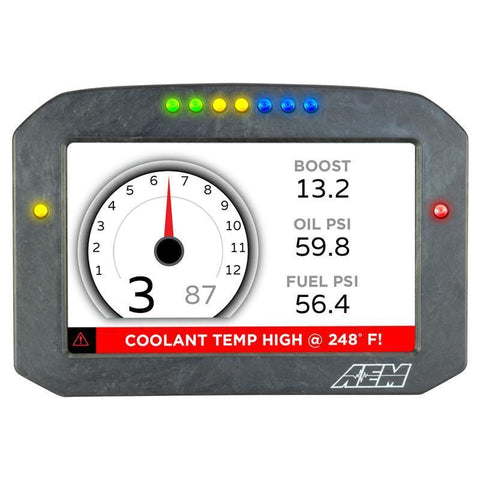

UNLIMITED ALARMS AND WARNING TEXT: Put an end to obscure warning LEDs! A powerful alarm editor allows you to create warning alerts and alarms for any incoming channel using customizable text in almost any language. We designed a dedicated alarm page that brings your attention to the dash in the event of a potentially catastrophic issue whenever a user definable condition is met.

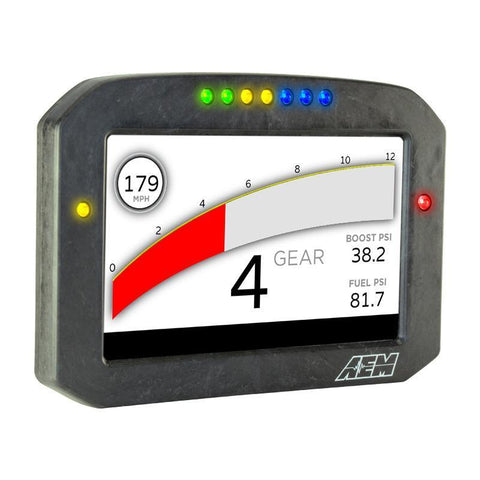

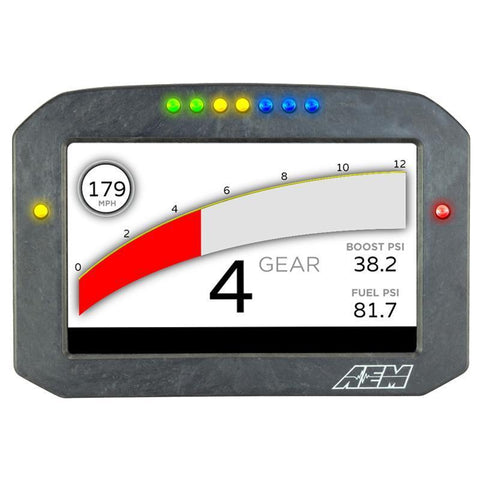

SEVEN PAGES TOTAL, ALL CUSTOM CONFIGURABLE: Users can create fully custom layouts and put whatever they want wherever they want on the screen. Templates include seven total pages; a startup page, four main pages, a unique ‘On-Change’ page and a dedicated Alarm event page.

THREE EVENT TRIGGERED PAGES: Three event-based pages ensure that you do not miss any critical changes to the vehicle’s operating state.

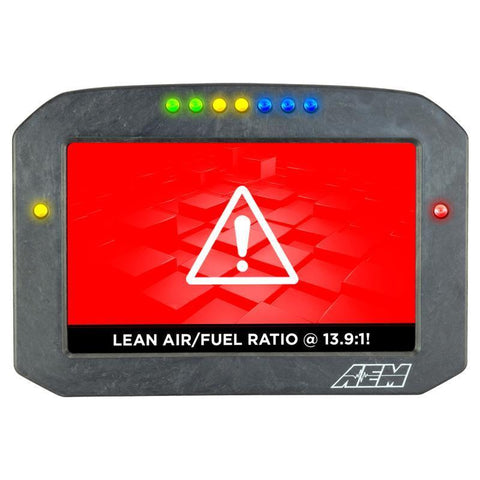

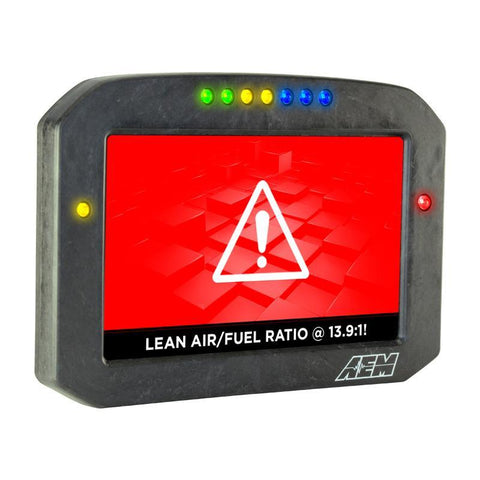

One is an alarm page. This will display whenever a user-definable condition is met and remains active until it is cleared by pressing the left button on the housing.

The second is an On-Change page. This is perfect for knowing what map you are on if you have map switching for different boost levels or traction control, and for viewing lap time, split time, etc., whenever you pass the start/stop beacon on the racetrack (beacon must be configured before racing).

The third is a Start-Up page that is triggered every time the dash powers up. You can program whatever splash screen graphics you want.

FREE DASHDESIGN GRAPHICS EDITOR SOFTWARE: DashDesign Screen Editing software is free and unlocked, so you will never pay for additional software features. You can assign incoming channels to the supplied layouts or create your own from scratch, the only limit is your imagination! We provide multiple layouts and themes to accommodate most styles and types of racing.

Features

• Full color 7” screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable between all CD Carbon Dashes
• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP66 water resistance – open cockpit safe
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use the included page layouts and input your channels and text, or create your own from scratch
• Free DashDesign Graphics Editor software
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Two programmable LEDs
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• ‘Headlight-in’ connection dims the dash and LEDs during night operation
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Convert CAN bus channel values to user-defined text
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Accepts channels from 2008+ factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Available with or without onboard 20 Hz GPS receiver and antenna
• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)

Applications

• Universal

Supported Apps

• Adaptronic M1200, M2000, M6000
• Adaptronic Modular series Plug-in ECUs
• Autosport Labs, AnalogX 4 Channel Analog to CAN Module
• BigStuff GEN4 Pro Xtreme ECUs
• Bosch IMU 2-Axis Accel & Yaw Sensor
• EMS EM-Tech EM70, EM80, EM140, EM160 & EM180 ECUs
• FAST XFI 2.0 ECU
• gaugeART 31-001, 8 Ch Analog Expansion Module
• GM/Delphi MEFI-4b ECUs
• Haltech Elite 550/750/950/1000/1500/2000/2500/2500T
• Haltech Platinum Pro/Sport/Sprint
• Haltech WBC1 & WBC2, 1 & 2 Ch CAN widebands
• Holley HP EFI, Dominator EFI ECUs CD-7 to Holley EFI Plug & Play Adapter Cable Available
• Hondata KPro4 and S300 V3
• KMS MD35
• KMS Single Ch CAN wideband
• KMS 4 Ch EGT Module
• KMS 4 Ch Wheelspeed Module
• KMS 2 Ch DBW Module
• KMS Flex Fuel CAN Module
• Life Racing F42, F88, F90 & GDI Series
• Link G4+ based ECUs CD-7 to LinkG4+ ECUs Plug & Play Adapter Cable Available
• Megasquirt, MS3
• MicroTech LT-9C, LT-10C, LT-15C & LT-16C
• Motec M1, M84, M400, M600, M800, & M880
• Motec PDM15, PDM16, PDM30 & PDM32 Power Distribution
• Motec PLM Lambda
• Motec LTC, LTCD Lambda to CAN
• Motec E888, E816, CAN Expansion
• MSD AtomicEFI Throttle Body ECUs CD-7 to MSD Atomic TBI Plug & Play Adapter Cable Available
• MSD GRID Programmable Ignition
• PCS EGT-2000, 8 Ch EGT
• Performance Electronics PE3 Series
• ProEFI Pro128, Pro112, and Pro48
• RaceGrade TC8, 8 Ch EGT
• RaceGrade 8 Ch and 15 Ch Keypads
• Racepak V300SD, V500SD, Sportsman, G2X, & G2XPro
• Racepak 220-VM-USM, Universal 4 Sensor Analog
• Racepak 220-VP-IR, IR Tire & Brake Temp
• Racepak 220-VP-JB, Exhaust Temp
• Racepak 220-VP-PT, Pressure Sensor
• Racepak 220-VP-PT, Wheelie Bar Force
• Racepak 220-VP-RIDEHTXX, Laser Ride Height
• Racepak 220-VP-TC, Thermocouple
• Racepak 220-VP-TR, Coolant/Air/Oil/Trans/Diff Temp
• Syvecs S6, S6+, S6I, S8, SDI & S12 ECU’s
• Techmor AC-1-4, 4 Ch Analog Expansion
• Techmor IR-1 Non-Contact IR Tire Temperature
• Techmor AP-1, 16 Ch Aero Pressure Sensor
• Techmor SG-1-C, Strain Gauge Amplifier
• Vi-PEC i44-i88 ECUs CD-7 to Vi-Pec i44/i88 ECUs Plug & Play Adapter Cable Available
• Zeitronics Zt-3 CAN AFR Meter and Datalogging System
• Zeitronics ECA CAN Ethanol Content Analyzer

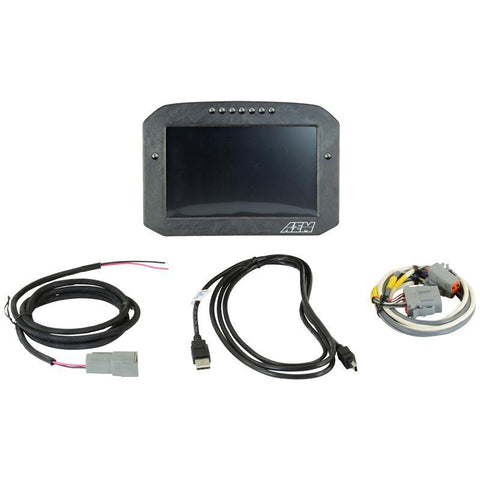

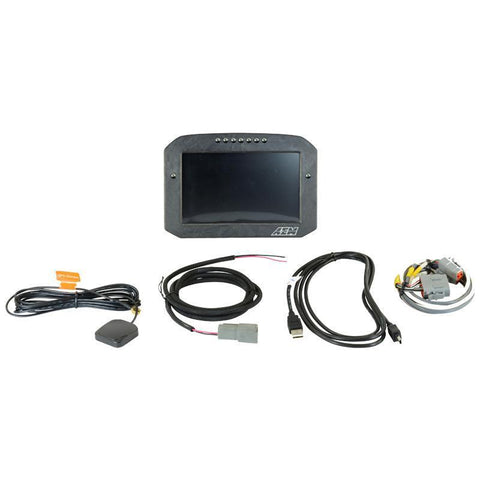

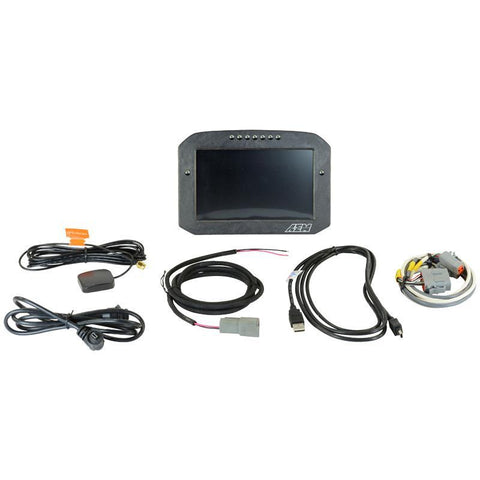

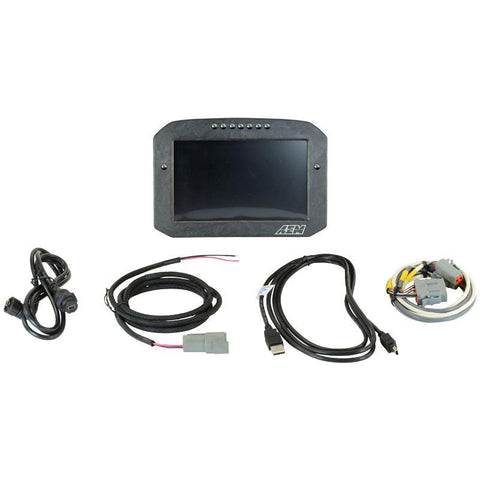

What's In The Box?

• 1 - CD-7 Carbon Flat Panel Digital Dash Display
• All Necessary Wiring/Hardware

Instructions

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
