    AEM Electronics

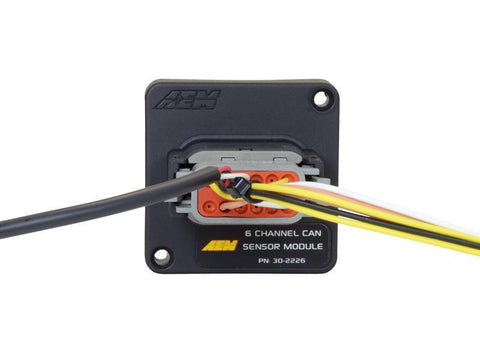

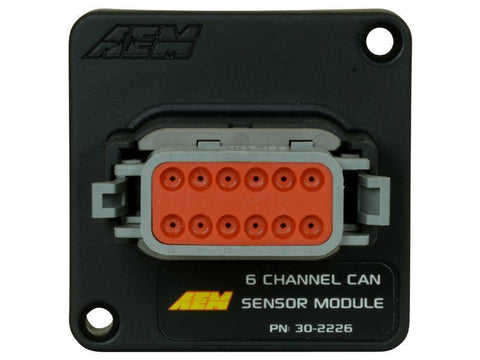

    AEM 6 Channel CAN Sensor Module

    PART# AEM 30-2226
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 149.97   $ 166.63
    Holiday Savings 10% ($ 16.66)

    Built To Order Delivered by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 3.00 Toward Next Purchase!

    6 CHANNEL CAN SENSOR MODULE FOR CD DIGITAL DASHES by AEM

    AEM’s 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.

    Carbureted Vehicles - The 6 Channel CAN Sensor Module provides the basic channels that users need to get data onto a CD Carbon Digital Dash in a carbureted vehicle, including tachometer, fuel level, and pressure/temp sensors. Vehicle speed can be achieved by using a GPS-enabled dash or by adding a Vehicle Dynamics Module.

    08-Up Stock/Reflashed ECUs - This module is the perfect add-on for CD Carbon Dash owners who are sending channels to a CD Carbon Dash from an OBDII CAN stock ECU and want to add additional channels that are not available through the factory CAN stream.

    Standalone CAN-based EFI - Racers who are using a non-AEM CAN-based programmable ECU and have consumed all of the inputs can use this module to add additional channels to the dash that they want to see or log (logging requires CD Carbon Logging Dash).

    Features

    • Two (2) temperature (thermistor) inputs
    • Two (2) dedicated 0-5V analog inputs
    • One (1) dedicated fuel level input (0 to 250 Ohm range)
    • One (1) tachometer/coil input
    • Fixed CAN bus speed, header length, and base address
    • IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
    • Protected inputs

    Applications

    • Universal

    What's In The Box?

    • (1) CAN Sensor Module
    • (1) 12-pin DTM Style Connector and Pins

    Warranty

    • Manufacturer Standard Warranty

    Downloads

    6 CHANNEL CAN SENSOR MODULE FOR CD DIGITAL DASHES by AEM

    AEM’s 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.

    Carbureted Vehicles - The 6 Channel CAN Sensor Module provides the basic channels that users need to get data onto a CD Carbon Digital Dash in a carbureted vehicle, including tachometer, fuel level, and pressure/temp sensors. Vehicle speed can be achieved by using a GPS-enabled dash or by adding a Vehicle Dynamics Module.

    08-Up Stock/Reflashed ECUs - This module is the perfect add-on for CD Carbon Dash owners who are sending channels to a CD Carbon Dash from an OBDII CAN stock ECU and want to add additional channels that are not available through the factory CAN stream.

    Standalone CAN-based EFI - Racers who are using a non-AEM CAN-based programmable ECU and have consumed all of the inputs can use this module to add additional channels to the dash that they want to see or log (logging requires CD Carbon Logging Dash).

    Features

    • Two (2) temperature (thermistor) inputs
    • Two (2) dedicated 0-5V analog inputs
    • One (1) dedicated fuel level input (0 to 250 Ohm range)
    • One (1) tachometer/coil input
    • Fixed CAN bus speed, header length, and base address
    • IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
    • Protected inputs

    Applications

    • Universal

    What's In The Box?

    • (1) CAN Sensor Module
    • (1) 12-pin DTM Style Connector and Pins

    Warranty

    • Manufacturer Standard Warranty

    Downloads
