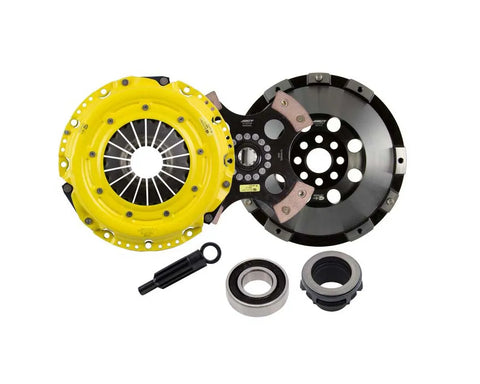

Advanced Clutch XT/Race Rigid 4 Pad Kit | (BM12-XTR4)
ACT Clutch Kits & Flywheels
FREE Delivery As Fast As by ,
FREE* SHIPPING ON ORDERS OVER $149
30-DAY RETURNS
*SEE DETAILS
*SEE DETAILS
33,000+ 5 STAR REVIEWS
MAP FITMENT GUARANTEE
Advanced Clutch XT/Race Rigid 4 Pad Kit BM12-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Notes:
- Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.5 x 30mm). Pressure plate bolts included (M8-1.25 x 20mm).
Features:
- Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
- Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for race use only
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications:
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Flywheel Included: Yes
- Pilot Bushing Included: No
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9.4 in
- Clutch Disc Diameter: 240 mm
- Disc Material: Ceramic
- Input Spline Quantity: 10
- Input Shaft Diameter: 1.125 in
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Solid
- Pressure Plate Bolts Included: Yes
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: Yes
- Pilot Bearing Included: Yes
- Flywheel Type: Streetlite
- Product Weight (lbs.): 28.6
- Torque Capacity (ft/lbs.): 702
- Torque Capacity Over OE: 1.29
References
- Installation Instructions
- 1996 BMW 318i Base
- 1997 BMW 318i Base
- 1998 BMW 318i Base
- 1999 BMW 318i Base
- 1996 BMW 318is Base
- 1997 BMW 318is Base
- 1998 BMW 318is Base
- 1999 BMW 318is Base
- 1996 BMW 318ti Base
- 1997 BMW 318ti Base
- 1998 BMW 318ti Base
- 1999 BMW 318ti Base
- 2000 BMW 323Ci Base
- 1998 BMW 323i Base
- 1999 BMW 323i Base
- 2000 BMW 323i Base
- 1998 BMW 323is Base
- 1999 BMW 323is Base
- 2001 BMW 325Ci Base
- 2002 BMW 325Ci Base
- 2003 BMW 325Ci Base
- 2001 BMW 325i Base
- 2002 BMW 325i Base
- 2003 BMW 325i Base
- 2001 BMW 325xi Base
- 2002 BMW 325xi Base
- 2003 BMW 325xi Base
- 2001 BMW 330Ci Base
- 2002 BMW 330Ci Base
- 2003 BMW 330Ci Base
- 2001 BMW 330i Base
- 2002 BMW 330i Base
- 2003 BMW 330i Base
- 2001 BMW 330xi Base
- 2002 BMW 330xi Base
- 2003 BMW 330xi Base
- 1991 BMW 525i Base
- 1992 BMW 525i Base
- 1993 BMW 525i Base
- 1994 BMW 525i Base
- 1995 BMW 525i Base
- 2001 BMW 525i Base
- 2002 BMW 525i Base
- 2003 BMW 525i Base
- 1997 BMW 528i Base
- 1998 BMW 528i Base
- 1999 BMW 528i Base
- 2000 BMW 528i Base
- 2001 BMW 530i Base
- 2002 BMW 530i Base
- 2003 BMW 530i Base
- 1996 BMW M3 Base
- 1997 BMW M3 Base
- 1998 BMW M3 Base
- 1999 BMW M3 Base
- 1998 BMW Z3 M Roadster
- 1999 BMW Z3 M Coupe
- 1999 BMW Z3 M Roadster
- 2000 BMW Z3 M Coupe
- 2000 BMW Z3 M Roadster
- 2001 BMW Z3 M Coupe
- 2001 BMW Z3 M Roadster
- 2002 BMW Z3 M Coupe
- 2002 BMW Z3 M Roadster
- 1992 BMW 325i Base
- 1993 BMW 325i Base
- 1994 BMW 325i Base
- 1995 BMW 325i Base
- 1992 BMW 325is Base
- 1993 BMW 325is Base
- 1994 BMW 325is Base
- 1995 BMW 325is Base
- 2000 BMW 328Ci Base
- 1996 BMW 328i Base
- 1997 BMW 328i Base
- 1998 BMW 328i Base
- 1999 BMW 328i Base
- 1999 BMW 328i Base
- 2000 BMW 328i Base
- 1996 BMW 328is Base
- 1997 BMW 328is Base
- 1998 BMW 328is Base
- 1999 BMW 328is Base
- 1996 BMW Z3 Roadster
- 1997 BMW Z3 Roadster
- 1997 BMW Z3 Roadster
- 1998 BMW Z3 Roadster
- 1998 BMW Z3 Roadster
- 1999 BMW Z3 Coupe
- 1999 BMW Z3 Roadster
- 1999 BMW Z3 Roadster
- 2000 BMW Z3 Coupe
- 2000 BMW Z3 Roadster
- 2000 BMW Z3 Roadster
- 2001 BMW Z3 Coupe
- 2001 BMW Z3 Roadster
- 2002 BMW Z3 Coupe
- 2002 BMW Z3 Roadster
