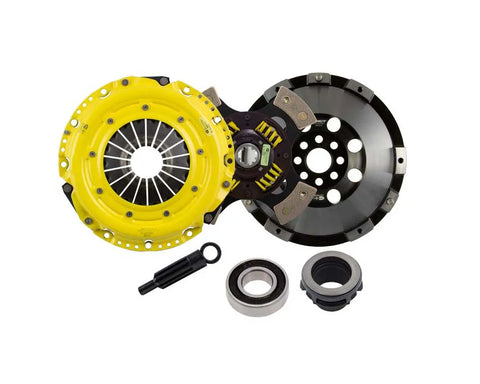

Advanced Clutch HD/Race Sprung 4 Pad Kit | (BM12-HDG4)
ACT Clutch Kits & Flywheels*SEE DETAILS
Advanced Clutch HD/Race Sprung 4 Pad Kit BM12-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Notes:
- Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.5 x 30mm). Pressure plate bolts included (M8-1.25 x 20mm).
Features:
- Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
- Moderate friction life, extended by ACT's exclusive diaphragm design
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for high horsepower street or race use
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications:
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Flywheel Included: Yes
- Pilot Bushing Included: No
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9.4 in
- Clutch Disc Diameter: 240 mm
- Disc Material: Ceramic
- Input Spline Quantity: 10
- Input Shaft Diameter: 1.125 in
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Sprung
- Pressure Plate Bolts Included: Yes
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: Yes
- Pilot Bearing Included: Yes
- Flywheel Type: Streetlite
- Product Weight (lbs.): 30
- Torque Capacity (ft/lbs.): 596
- Torque Capacity Over OE: 0.94
References
- Installation Instructions
- 2000 BMW Z3 M Roadster
- 2001 BMW Z3 M Coupe
- 2001 BMW Z3 M Roadster
- 2002 BMW Z3 M Coupe
- 2002 BMW Z3 M Roadster
- 1996 BMW 318i Base
- 1997 BMW 318i Base
- 1998 BMW 318i Base
- 1999 BMW 318i Base
- 1996 BMW 318is Base
- 1997 BMW 318is Base
- 1998 BMW 318is Base
- 1999 BMW 318is Base
- 1996 BMW 318ti Base
- 1997 BMW 318ti Base
- 1998 BMW 318ti Base
- 1999 BMW 318ti Base
- 2000 BMW 323Ci Base
- 1998 BMW 323i Base
- 1999 BMW 323i Base
- 2000 BMW 323i Base
- 1998 BMW 323is Base
- 1999 BMW 323is Base
- 2001 BMW 325Ci Base
- 2002 BMW 325Ci Base
- 2003 BMW 325Ci Base
- 2001 BMW 325i Base
- 2002 BMW 325i Base
- 2003 BMW 325i Base
- 2001 BMW 325xi Base
- 2002 BMW 325xi Base
- 2003 BMW 325xi Base
- 2001 BMW 330Ci Base
- 2002 BMW 330Ci Base
- 2003 BMW 330Ci Base
- 2001 BMW 330i Base
- 2002 BMW 330i Base
- 2003 BMW 330i Base
- 2001 BMW 330xi Base
- 2002 BMW 330xi Base
- 2003 BMW 330xi Base
- 1991 BMW 525i Base
- 1992 BMW 525i Base
- 1993 BMW 525i Base
- 1994 BMW 525i Base
- 1995 BMW 525i Base
- 2001 BMW 525i Base
- 2002 BMW 525i Base
- 2003 BMW 525i Base
- 1997 BMW 528i Base
- 1998 BMW 528i Base
- 1999 BMW 528i Base
- 2000 BMW 528i Base
- 2001 BMW 530i Base
- 2002 BMW 530i Base
- 2003 BMW 530i Base
- 1996 BMW M3 Base
- 1997 BMW M3 Base
- 1998 BMW M3 Base
- 1999 BMW M3 Base
- 1998 BMW Z3 M Roadster
- 1999 BMW Z3 M Coupe
- 1999 BMW Z3 M Roadster
- 2000 BMW Z3 M Coupe
- 2000 BMW Z3 Coupe
- 2000 BMW Z3 Roadster
- 2000 BMW Z3 Roadster
- 2001 BMW Z3 Coupe
- 2001 BMW Z3 Roadster
- 2002 BMW Z3 Coupe
- 2002 BMW Z3 Roadster
- 1992 BMW 325i Base
- 1993 BMW 325i Base
- 1994 BMW 325i Base
- 1995 BMW 325i Base
- 1992 BMW 325is Base
- 1993 BMW 325is Base
- 1994 BMW 325is Base
- 1995 BMW 325is Base
- 2000 BMW 328Ci Base
- 1996 BMW 328i Base
- 1997 BMW 328i Base
- 1998 BMW 328i Base
- 1999 BMW 328i Base
- 1999 BMW 328i Base
- 2000 BMW 328i Base
- 1996 BMW 328is Base
- 1997 BMW 328is Base
- 1998 BMW 328is Base
- 1999 BMW 328is Base
- 1996 BMW Z3 Roadster
- 1997 BMW Z3 Roadster
- 1997 BMW Z3 Roadster
- 1998 BMW Z3 Roadster
- 1998 BMW Z3 Roadster
- 1999 BMW Z3 Coupe
- 1999 BMW Z3 Roadster
- 1999 BMW Z3 Roadster
