Acuity 5/16" Quick-Connect to -8 ORB Adapter, 100mm Flange to Tip (1913-F07)

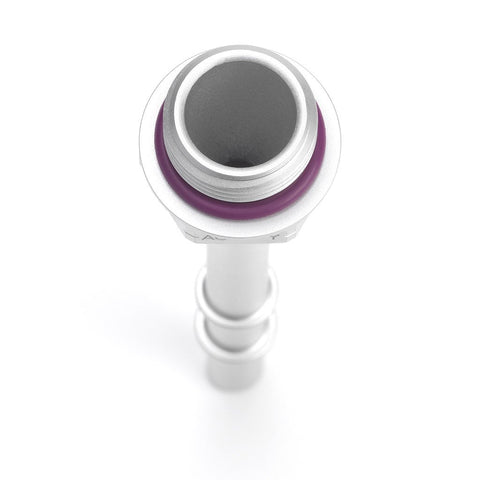

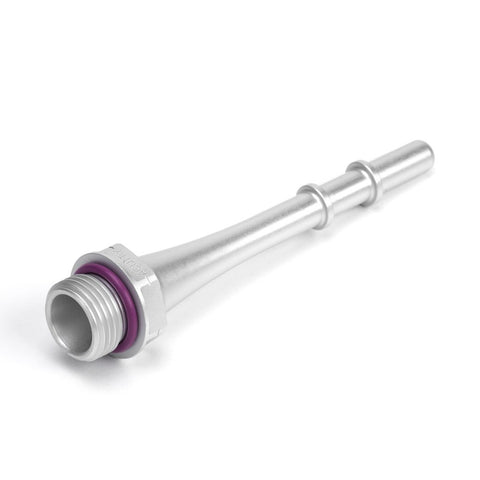

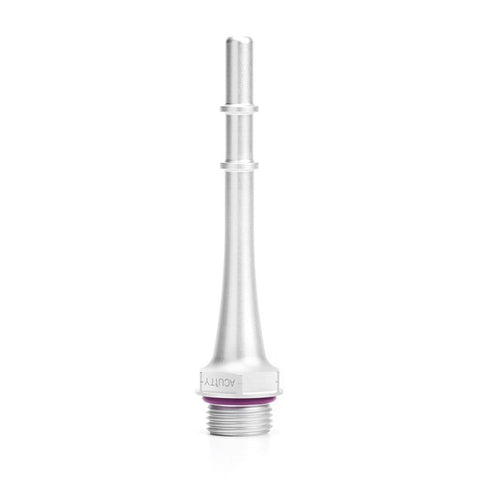

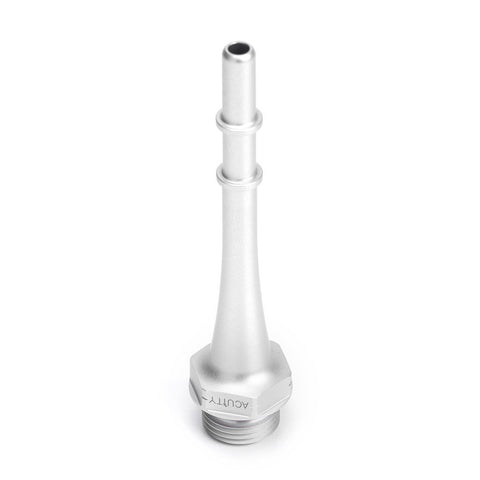

5/16" Quick-Connect to -8 ORB Adapter (100mm Flange to Tip) by Acuity

ACUiTY's 5/16" Quick-Connecto to -8 O-Ring Boss (ORB) adapter is made from 7075-T6 aluminum for strength with a gently tapered interior for maximum flow. They are particularly useful when running an aftermarket Honda K-Series compatible fuel rail with a stock fuel line.

A silver anodized finish ensures high cosmetic quality and resistance to oxidation. These were designed for use with ACUiTY's K-Series Fuel Rails, but they are perfect for use in any gas, ethanol, or gas/ethanol mix fuel system where a -8 ORB port must be adapted for a 5/16" Quick-Connect style fuel line (which is a common style used on the fuel rail for many Honda K-Series vehicles except for vehicles with port injection).

The fitting comes supplied with a -908 FKM o-ring that is gasoline and ethanol (and E85, etc) compatible. Additionally, each fitting is designed with a flange at the base of the 7/8" hex to help protect against scratching the part the fitting is being threaded into during tightening.

This is one of 2 similar fittings ACUiTY produces. This design (1913-F07) is 100mm long from the flange to the tip, while ACUiTY's 1913-F07 fitting is 62mm long from flange to tip, for applications needing a less reach.

Features

• Fits in all fuel rails and other fuel system components that accept -8 ORB fittings
• Adapts -8 ORB ports to 5/16" Quick-Connect for use with many Honda/Acura fuel lines
• 7075-T6 Aluminum construction for added strength over traditional 6061-T6 fittings
• Gently tapered interior for maximum flow
• Anodized for durability
• Flanged hex to help avoid wrench damage during installation
• Supplied with ethanol-safe FKM o-ring
• 7/8" Hex Drive

Applications

• Universal

What's In The Box?

• 1 - 5/16" Quick Connect to -8 ORB Adapter (100mm Flange to Tip)

Warranty

• All ACUITY products are covered by a 1-year warranty against manufacturer defect.
