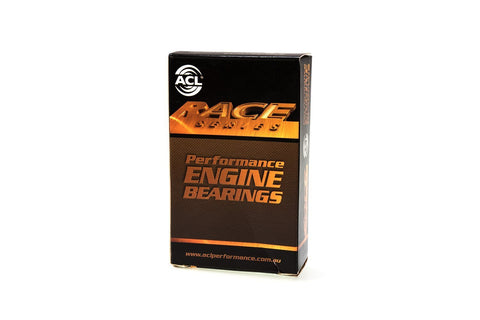

ACL Race Main Engine Bearings | Honda/Acura B18C1/B18C5 (5M1959H)

ACL Race Series Main Bearings

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Features

• Designed to withstand higher RPM conditions.
• High strength overlay plate with reduced thickness for improved fatigue properties.
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention.
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearing sand to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Applications

• Honda/Acura B18C1 / B18C5
• 1994-2001 Acura Integra GS-R
• 2000-2001 Acura Integra Type-R

What's In The Box?

• (1) Complete Set of Main Bearings

Warranty

• Manufacturer Standard Warranty
