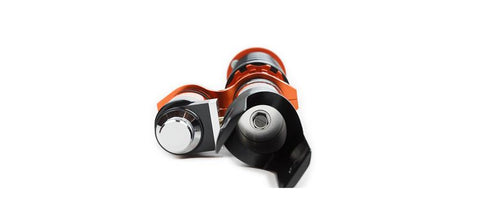

2000-2005 IS300 Kontrol Plus 2 Way Adjustable Damper System by Ksport
Ksport?s Kontrol Plus 2 Way coilover System provides the ultimate in adjustability for enthusiasts and professionals alike, who are wishing to have the maximum in performance and durability. With years of engineering, testing and development, the Kontrol Plus 2 Way coilover System has been perfected in virtually every facet of motorsports, ranging from drifting to time attack or circuit driving. The uncompromising range of adjustability on the Kontrol Plus 2 Way coilover System makes it possible to win at the track, yet drive daily on the street as well.
The key component to the Kontrol Plus 2 Way coilover System is its utilization of remote reservoirs that provide separate adjustments for rebound and compression, as well as nitrogen gas pressure. With over 864 possible settings provided by each Kontrol Plus 2 Way coilover System, it is possible to leave no stone unturned in the quest for ultimate performance from your vehicle?s suspension system. In addition to adjustability, the added oil capacity provided by the remote reservoirs increase the system?s ability to dissipate heat, which leads to improved performance over long periods such as endurance or tarmac racing, in addition to consistent performance throughout long heat cycles. These features, paired with 55mm monotube shocks, ensure maximum durability and consistent performance.
A variety of external hardware components are available on the Ksport Kontrol Plus 2 Way coilover System to completely customize the system to your vehicle. When fitting this kit to your vehicle, upper mounts are available in rubber form, pillowball or Ksport?s award winning advanced pillowball mounts that offer camber and caster adjustment. Each Ksport Kontrol Plus 2 Way coilover System has been dyno tested individually, and the results are included (if requested) with the system at the time of purchase to aid in coilover tuning.
864 possible settings provided by each Kontrol Plus 2 Way coilover System, it is possible to leave no stone unturned in the quest for ultimate performance from your vehicle?s suspension system.
Kontrol Plus 2 way coilover offer 36 levels of damping adjustment via the top of the assembly and an additional 24 levels of nitrogen adjustments via the bottom of the reservoir.
6061 with T6 Aluminum collars and upper mounts
Our spring perches, locking collars, top mounts and some lower mounts are made from high quality 6061 aluminum. Benefits include excellent strength and lightweight components.
Adjustable lower mount allowing maximum suspension travel
Most of their applications allow for the ability to adjust your ride height without affecting the shock & spring travel. This way you can go as low as you please without having to worry about bottoming out the shock. The exception to this would be vehicles with separate spring and shock set ups in the rear.
Camber adjustment on many models
Most of their applications for vehicles with McPherson type suspension will have the ability to adjust camber via the top mounts. This is extremely helpful when you need to dial in your camber for reduced tire wear or add more negative camber to aid in aggressive wheel and tire fitments. NOTE: Camber adjustment is not available on all models with pillowball upper mounts.
Pillowball Top Mounts For Increased Steering Feel
Many applications have pillowball top mounts. Their patented new bearing design helps combat noise while turning unlike many other systems on the market. Steering feel and response is also improved.
Monotube high pressure design reduces oil leakage
All of their coilovers use Monotube shocks which dissipate heat better, allows finer damping adjustment and requires a more expensive design process compared to twin tube shocks.
Electroplated body for added protection from corrosion and rust
To help prevent corrosion and rust from the element, all of their shock bodies are electroplated with zinc. They also supply an additional anti-rust paste packet which adds even more protection to other parts of the coilover.
Dust boot to protect damper seal
Dust boots are standard on all coilovers. We also integrate the bump stop inside the dust boot. This is more efficient and is less likely to crumble to pieces and deteriorate like other company?s designs.
Adjustable Spring Perch For Height Adjustment
Some vehicles have a separate rear shock and spring. In the coilover industry they call the kits for this type of vehicle a ?hi-low kit?. In this case you will have height adjustment via the spring perch and the lower mount of the shock.
12 month limited warranty
Slide Kontrol coilovers come standard with an 12 month warranty which covers manufacturer defects.
Spring Rates: Front (KG/LBS) 14/784 Rear (KG/LBS) 8.7/487
Upper Mounts: Front - ATM = Aluminum Top Mount - Rear - ATM = Aluminum Top Mount
