P3 Gauges Analog Gauge | 2015-2019 Volkswagen Golf Mk7 / Mk7.5

P3 Gauges V3 OBDII Gauge

The P3 Analog Gauge IS NOT plug and play. Boost/vacuum hose to the engine are required and wiring needs to be completed for power, ground, and optional analog inputs.

Features

• Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included - EA888 Boost Tap
• Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
• Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
• Battery voltage (red wire / black wire - read through power and ground wires)


• Optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

Applications

• 2015-2019 Volkswagen Golf / GTI / Alltrack / TDI / R
  Mk7 / Mk7.5

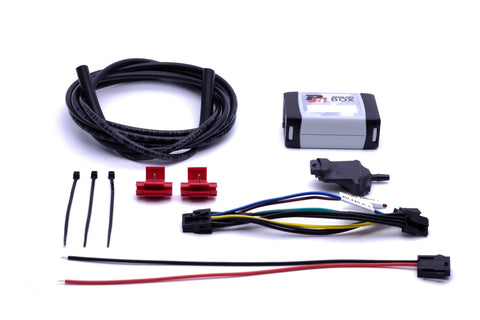

What's In The Box?

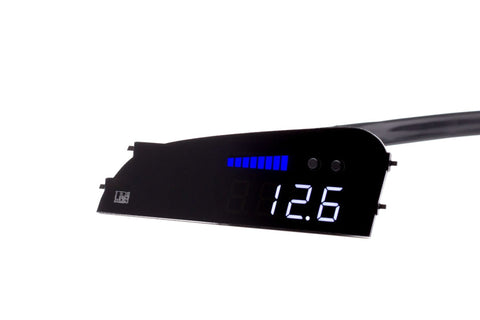

• Integrated display
• Analog Box control unit
• Main harness
• Hard-wire harness
• Analog boost sensor *boost tap not included
• Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
• 3 zip ties
• 2 scotchlok wire taps

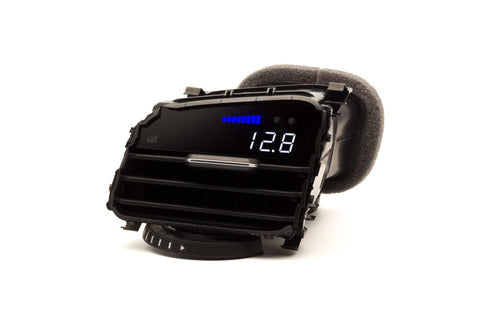

• OPTIONAL Vent Housing (Available on LHD models only)

References

• Install Instructions

Warranty

• 1 year warranty against defects or failures
