SpeedFactory Racing Billet B-Series Crankcase Pressure Port Fitting | 1994-2001 Acura Integra, and 1999-2000 Honda Civic Si (SF-02-025)

1994-2001 Acura Integra, and 1999-2000 Honda Civic Si Billet B-Series Crankcase Pressure Port Fitting by SpeedFactory

Are you monitoring crankcase pressure levels on your race car? If not you should be!

Monitoring your crankcase pressure levels gives you valuable information about your engine's state of health & piston ring to cylinder wall sealing, and is highly recommended - especially on turbocharged cars that develop high levels of blow-by and crankcase pressure.

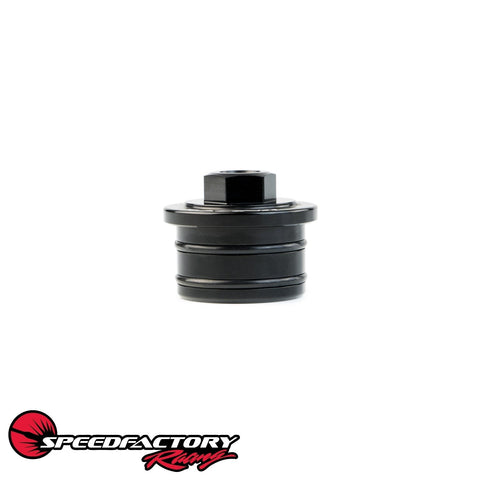

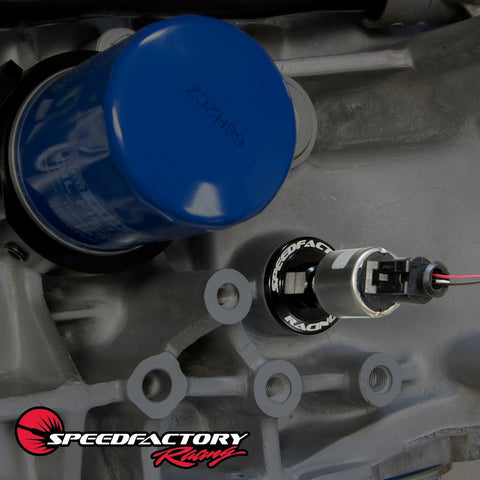

The SpeedFactory Billet B-Series Crankcase Pressure Port Fitting was designed specifically for use on Honda/Acura B-Series engines to plug the OEM "black box" breather port and provide a location that is directly in the crankcase to install a 1/8” NPT pressure sensor, giving accurate pressure readings during engine operation.

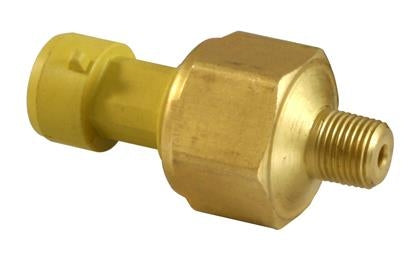

Please Note: All Standalones and most factory based EMS such as Hondata etc. support an auxiliary 0-5v sensor input such as the commonly used 0-75 and 0-150psig pressure sensors. We recommend thoroughly cleaning the port in the block and the fitting with brake cleaner prior to installation, and then liberally coating it with Honda Bond or Permatex Ultra Grey and allowing it to cure for 24hrs before use. This will act both as lubricant to facilitate installation and then will setup and bond the fitting into the block so that it doesn’t blow out in the case of abnormally high crankcase pressures such as during the event of a piston failure.

Features

• Precision CNC machined from 6061-T6 billet aluminum
• Black Anodized finish adds durability and eliminates corrosion
• Precise fit w/dual O-rings provides a tight, leak free seal & dampens vibrations to the sensor
• 17mm wrench provision for easy tightening with integrated 1/8” NPT pressure sensor port
• Laser-etched SpeedFactory Racing logo

Benefits

• Allows for easy crankcase pressure monitoring

Applications

• 1989-1991 Honda CRX SiR
• 1989-1994 Honda Civic SiR
• 1992–1994 Honda Civic SiRII
• 1996–1998 Honda Civic SiR
• 1996–1998 Honda Civic SiRI
• 1997–2000 Honda Civic Type R
• 1999-2000 Honda Civic Si
• 1994-1997 Honda Del Sol
• 1992–2001 Acura Integra GS-R
• 1990–2001 Acura Integra RS
• 1990–2001 Acura Integra LS
• 1990–2001 Acura Integra GS
• 2000-2001 Acura Integra Type R
• 1996-2001 Honda CR-V

What's In The Box?

• 1 - Crankcase Pressure Port Fitting

Warranty

• SpeedFactory's Standard Limited Warranty
