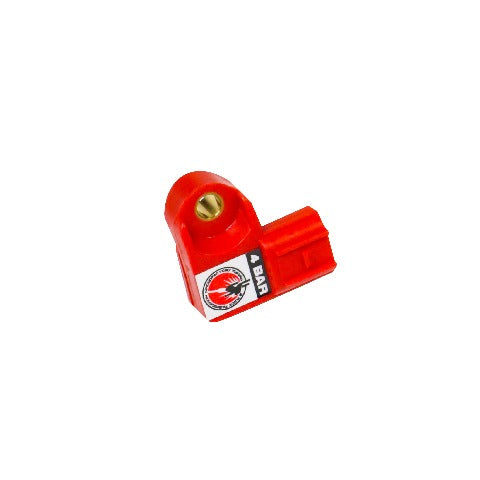

MAP Sensor Color
 Need Help Getting Started?
Call Or Text Our Experts at 651-927-4510

$108.29 $113.99Instant Savings of 5% ($5.70)

Earn  $2.17 In MAP Rewards!

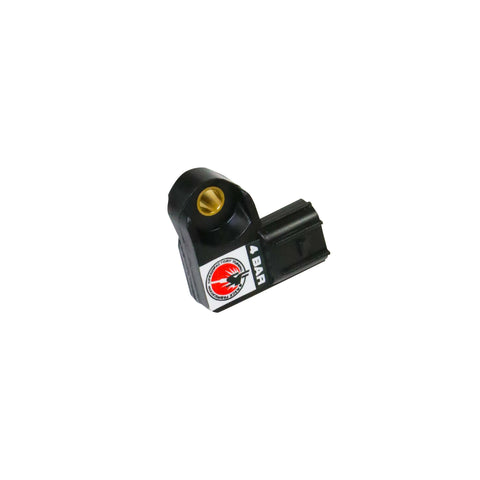

2006-2009 Honda S2000, 2006-2015 Honda Civic Si, and 2009-2010 Acura TSX 4 Bar MAP Sensor by SpeedFactory

SpeedFactory 4 Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip.

Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes. The unique ability to compensate for temperature changes allows our MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale. With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors.

Please Note: Requires proper sensor calibration with a programmable engine management system.

Features

  • Precisely calculates boost pressure from 1-43+ psi
  • 40 to 260 degrees Fahrenheit temperature operating range
  • True linear scaling for perfect drivability at all boost and vacuum levels.

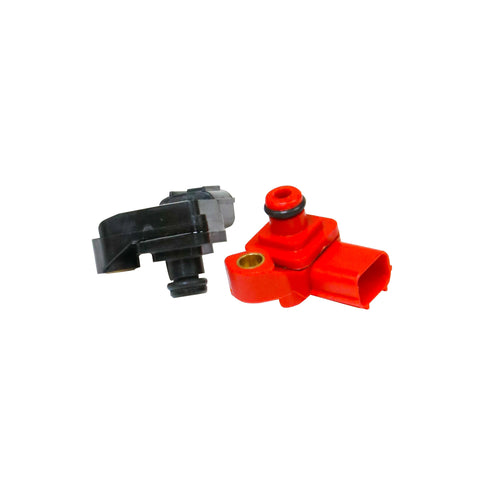

  • Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
  • Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping

Benefits

  • Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
  • Automatic temperature compensation.
  • Compatible with all aftermarket engine management systems.
  • Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
  • Allows smoother engine operation, higher boost levels, and better drivability than competitors turbo MAP sensors.

Applications

  • 2006-2009 Honda S2000
  • 2006-2011 Honda Civic R18
  • 2012-2015 Honda Civic Si
  • 2013+ Acura ILX
  • 2009-2010 Acura TSX
  • 2010-2016 Honda CR-Z

What's In The Box?

  • 1 - MAP Sensor

Warranty

  • SpeedFactory's Standard Limited Warranty
