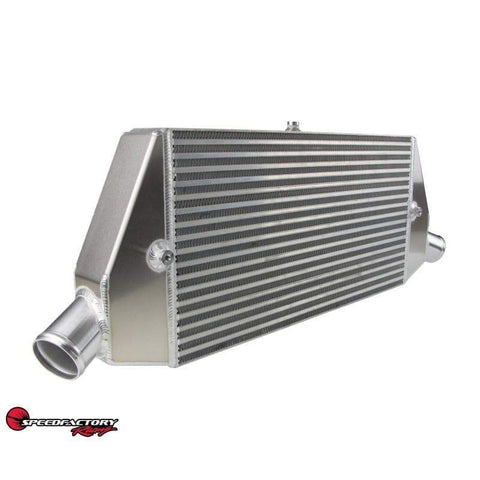

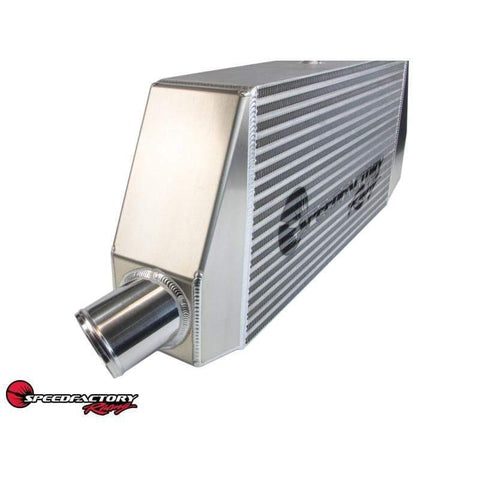

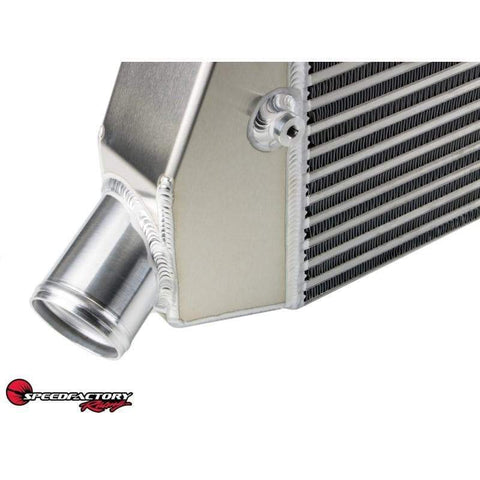

SpeedFactory HPX 3.0" In / 3.5" Out FMIC - 1200+HP (SF-06-094)

Universal Front Mount Intercooler (3.0" In / 3.5" Out) by SpeedFactory Racing

The SpeedFactory HPX Front Mount Intercooler is built with our high quality 4.5" thick SpeedFactory Air-to-Air Intercooler Core, featuring bar and plate construction with a very specific staggered fin combination engineered to achieve maximum cooling efficiency while minimizing pressure drop.

Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This intercooler is ideal for race applications where 1200+HP of efficient charge air cooling is desired.

This intercooler comes standard with 3" inlet / 3.5" outlet bead rolled tube ends. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and come with M8x1.25mm aluminum mounting bungs already attached for easy installation. Mounting brackets are not provided.

Features

• 1200+HP Rated

• Core size is 24" x 12" x 4.5"
• Overall size is 35.25" (inlet to inlet) x 12" tall x 4.5" thick
• Unparalleled craftsmanship and race proven performance

Applications

• Universal


What's In The Box?

• 1 - Front Mount Intercooler

Warranty

• Manufacturer Standard Warranty
