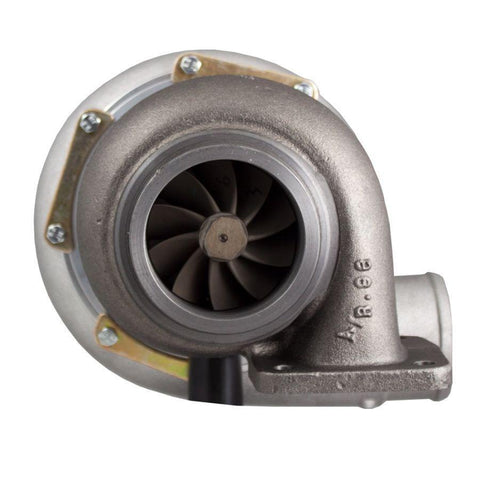

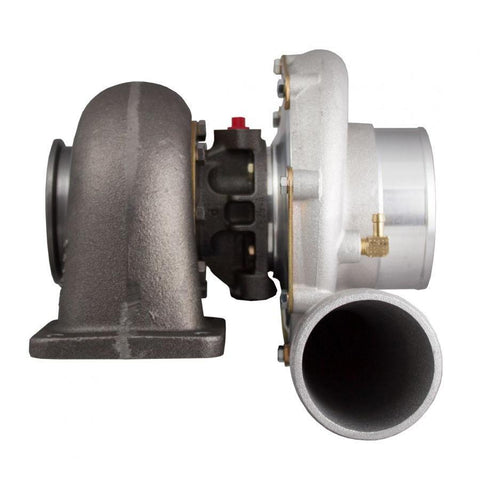

LS-Series PT7675 Turbocharger (1150HP Rated) by PTE
Featuring a 76mm cast compressor wheel and a 75mm turbine wheel, this turbocharger is an excellent match for the widely-popular LS family of engines.
Purpose built with the LS-enthusiast in mind, this unit features a 360* hydrodynamic bearing system for exceptional reliability and increased thrust capacity. The turbocharger is available with (2) different turbine housing A/R ratios (T4 .81 A/R and T4 .96 A/R), making it ideally suited for a single or twin turbo application. Both options feature a 3 5/8” v-band discharge for easy downpipe installation.
Additionally, the LS-Series PT7675 turbocharger comes standard with our ported H cover (4" inlet and 3" outlet) to protect against compressor surge.
Features
- Rated for 1150 horsepower
- Built with the LS-enthusiast in mind
- 76mm cast compressor wheel
- 75mm turbine wheel
- Hydrodynamic bearing system
- 3 & 5/8” v-band discharge
- Ported H cover (4" inlet and 3" outlet)
- Available with 2 different turbine housing A/R ratios
Applications
- Universal
Benefits
- Exceptional reliability
- Increased thrust capacity
- Easy downpipe installation
- Protection from compressor surge
What's In The Box?
- 1 - LS-Series PT7675 Turbo
Warranty
- Manufacturer Standard Warranty
