Mishimoto Oil Cooler Kit | 2006-2007 Subaru STI (MMOC-WRX-06T)

Oil Cooler Kit by Mishimoto

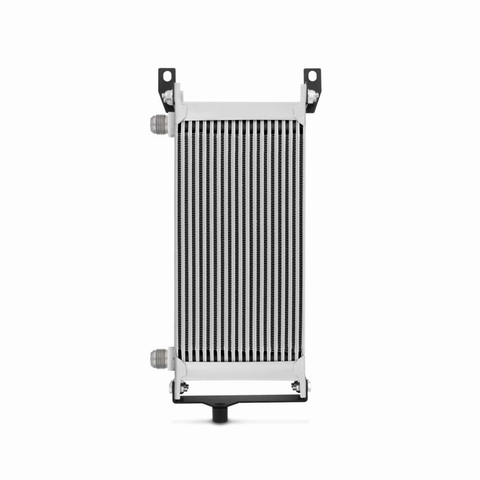

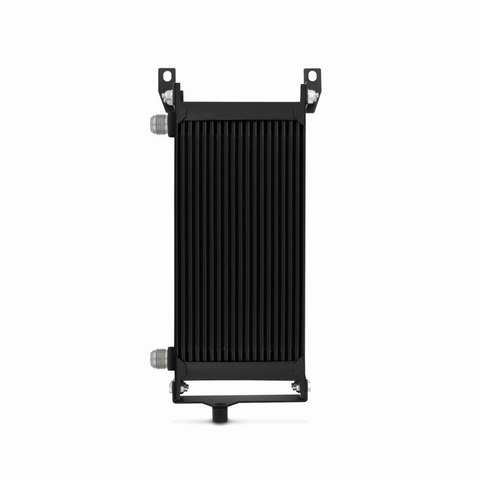

Keep your Hawkeye cool on the street or track with the all-new Mishimoto direct-fit oil cooler kit. A high horsepower Subaru needs a reliable and efficient means of reducing and maintaining proper oil temperatures. High engine temperatures can result in rapid oil degradation and potential engine damage. The Mishimoto oil cooler kit features a large 19-row oil cooler mounted behind the front bumper and grill for optimum airflow and cooling efficiency. This oil cooler kit adds .65 qt to the total oil capacity and substantially reduces temperatures with minimal pressure loss. The Mishimoto direct-fit oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler. As with all our products, this kit includes the Mishimoto Lifetime Warranty

Features

• 50+°F (34+°C) temperature drop
• Minimal pressure loss
• Direct fit for the WRX
• CNC-machined spacer for easy install without heat shield removal
• Stealth Black and Sleek
• Silver cooler options
• Thermostatic option available
• Mishimoto Lifetime Warranty

Specifications

• Material: 6061 Aluminum
• Core Height: 5.43"
• Rows: 19
• Cooler Construction: Stacked-plate
• Core Thickness: 1.97"
• Core Length: 11"
• Fitting Size: 10AN
• Engine Codes: EJ255, EJ257
• Chassis Codes: GD
• Pressure Drop: 2 PSI
• Increase In Oil Capacity: 0.65 qt

Applications

• 2006-2007 Subaru STI
• 2007 Subaru STI Limited

What's In The Box?

• (3) Application Specific Mounting Brackets
• (1) 19-Row Oil Cooler
• (1) 2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings
• (1) 2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings
• (1) Oil Sandwich Plate (Thermostatic Plate as Option in Drop Down)
• (1) Stainless Steel Sandwich Plate Adapter, M20
• (2) Banjo Fitting w/ Bolt M20 x -10AN, Black
• (1) 2Í Thermashield Silver Braided Line Protector
• (1) Black Rubber Protector Square
• (1) Mounting Hardware Set
• Lifetime Warranty

Manual Instructions

• Click Here for Manual Instuction
